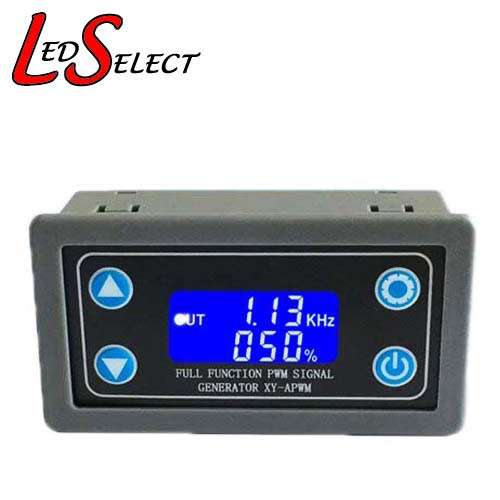

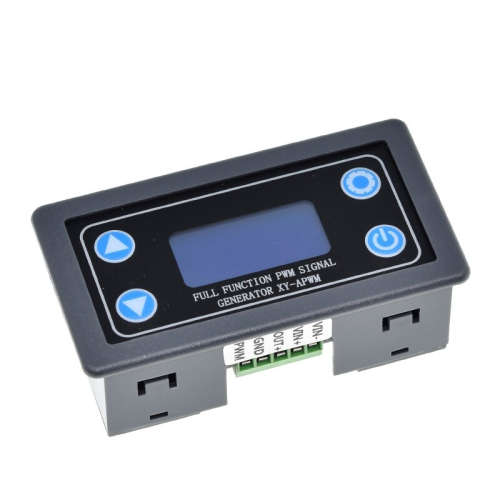

Controller Duty Cycle Frequency PWM Digital Display (1HZ-150kHZ) 3.5-12V **LOCAL STOCK**

Controller Duty Cycle Frequency PWM Digital Display (1HZ-150kHZ):

Category Code: 1500312645 / 1516312645 - Controller Motor Speed

Specifications:

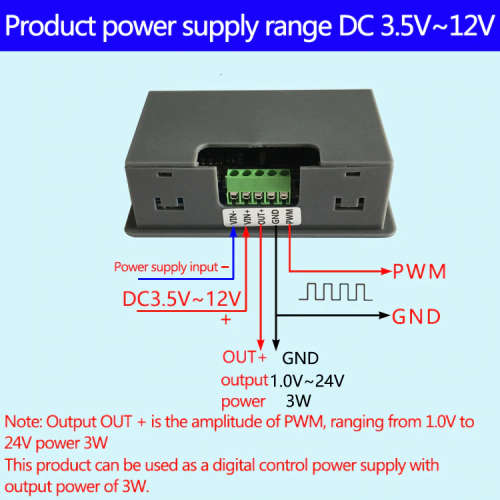

Input voltage: DC3.5~12V, output voltage OUT+ (amplitude voltage): DC1.0V~24.0V power 3W (this product can be used as a power 3W CNC power supply);
Frequency range: 1 Hz~150 KHz in general mode, 1 HZ~15 KHZ in fine mode;
Frequency accuracy: the accuracy in each range is about 2%.
Signal load capacity: the output current can be about 5~30 Ma (Note: This product is the output of PWM signal, can not directly drive high-power load);
Output amplitude: DC1.0V~24.0V adjustable;
Ambient temperature: -20~+70

Features:

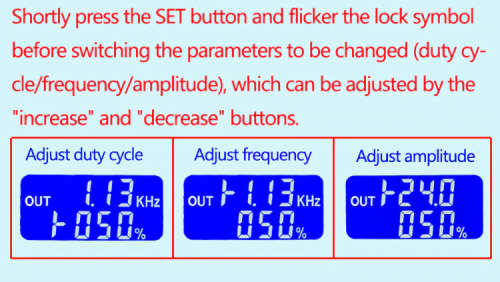

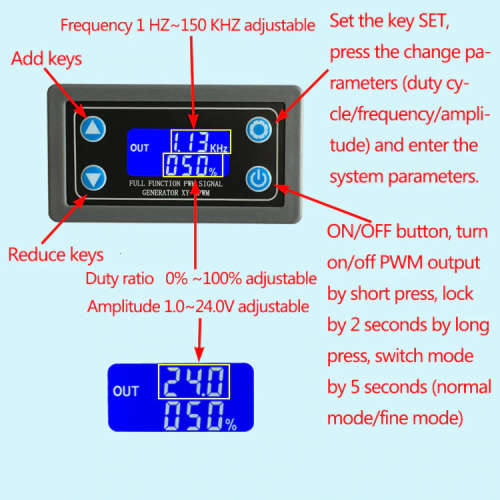

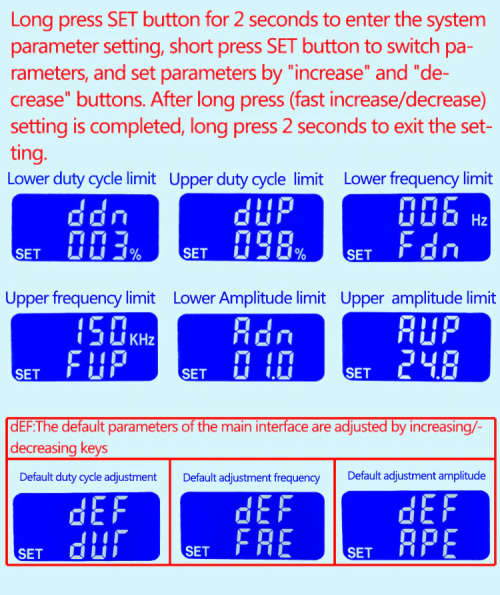

1. The duty cycle, frequency and amplitude can be adjusted, and the upper and lower limits can be set.
2. You can customize the default parameters (duty cycle/frequency/amplitude) when the main interface press the ‘increase'or ‘decrease' button.

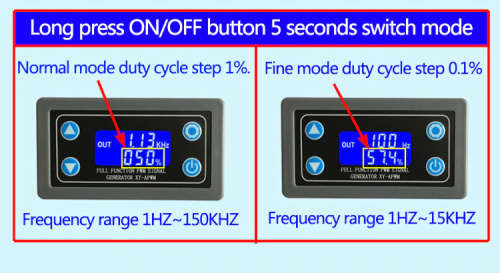

3. Dual mode, fine mode duty cycle step 0.1%;

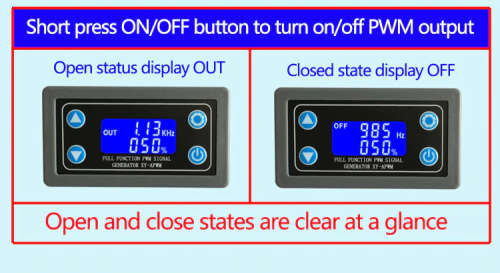

2. LCD display frequency, duty cycle and amplitude, with ON/OFF keys, very clear

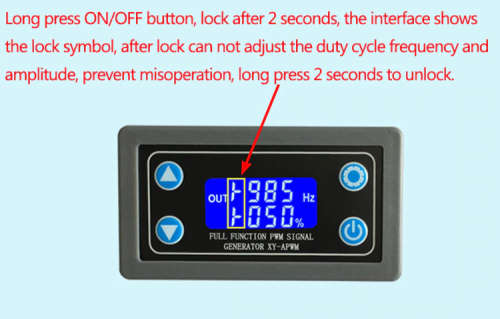

4. With locking function to prevent misoperation;
5. This product can be used as a 3W power supply.
6. All parameters are saved after power failure.

Uses:

1. Used as a square wave signal generator to generate square wave signals for experimental development and use;
2. Square wave signal used to control motor driver;
3. Generate adjustable pulses for MCU use.
4. Generate adjustable pulses and control related circuits (PWM dimming and speed regulating applications).
