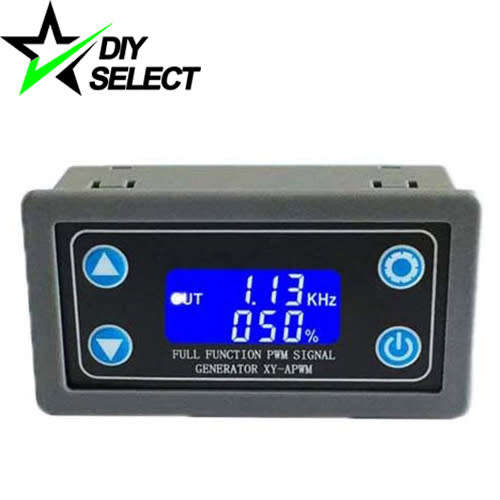

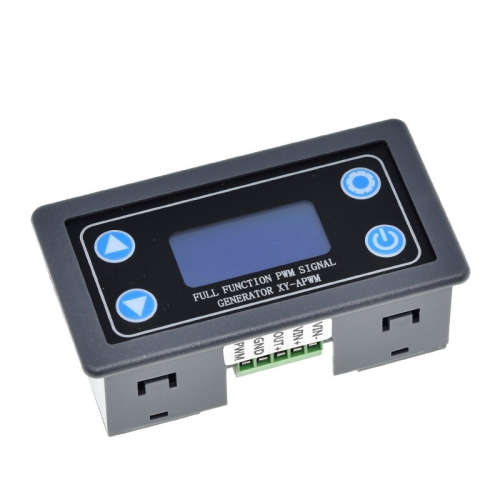

Controller Duty Cycle Frequency PWM Digital Display (1HZ-150kHZ) 3.5-12V **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Controller Duty Cycle Frequency PWM Digital Display (1HZ-150kHZ):
| Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |
Specifications:

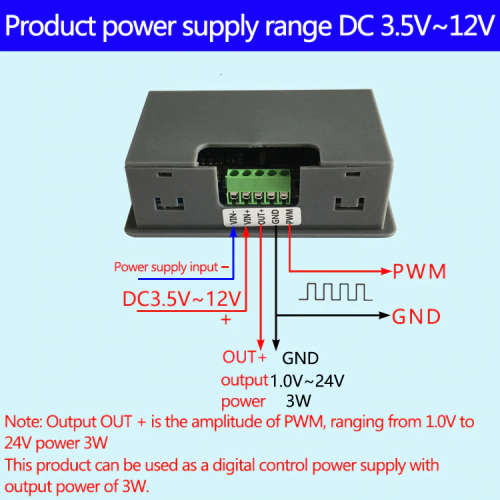

Input Voltage: DC3.5~12V, output voltage OUT+ (amplitude voltage): DC1.0V~24.0V power 3W (this product can be used as a power 3W CNC power supply);

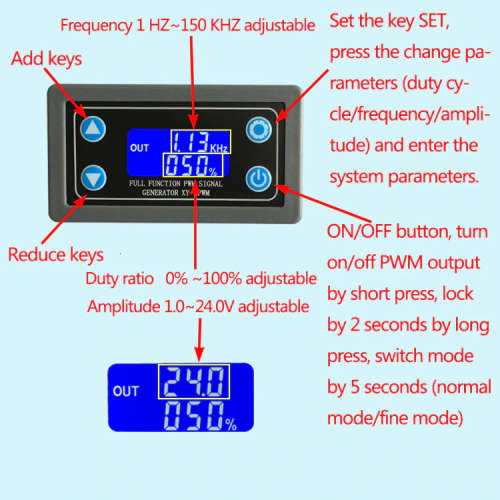

Frequency Range: 1 Hz~150 KHz in general mode, 1 HZ~15 KHZ in fine mode;
Frequency Accuracy: the accuracy in each range is about 2%.
Signal Load Capacity: the output current can be about 5~30 Ma (Note: This product is the output of PWM signal, can not directly drive high-power load);
Output Amplitude: DC1.0V~24.0V adjustable;
Ambient Temperature: -20~+70
Features:

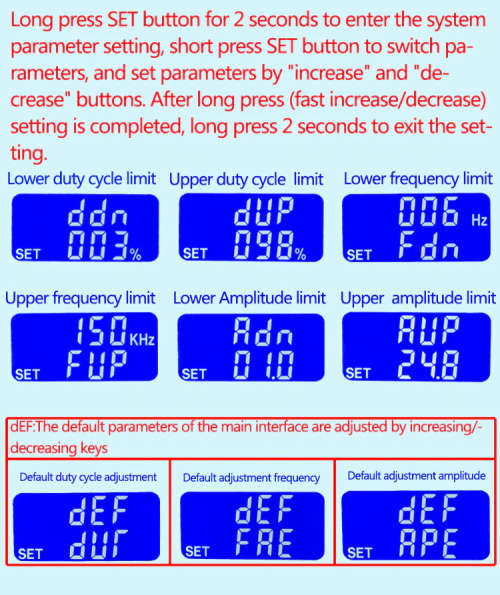

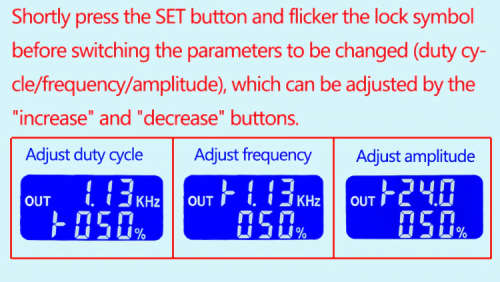

1. The duty cycle, frequency and amplitude can be adjusted, and the upper and lower limits can be set.
2. You can customize the default parameters (duty cycle/frequency/amplitude) when the main interface press the increase'or decrease' button.

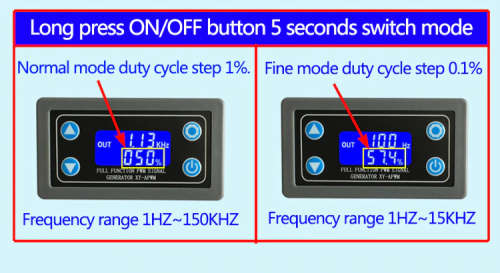

3. Dual mode, fine mode duty cycle step 0.1%;

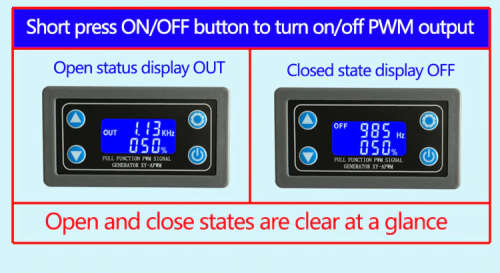

2. LCD display frequency, duty cycle and amplitude, with ON/OFF keys, very clear

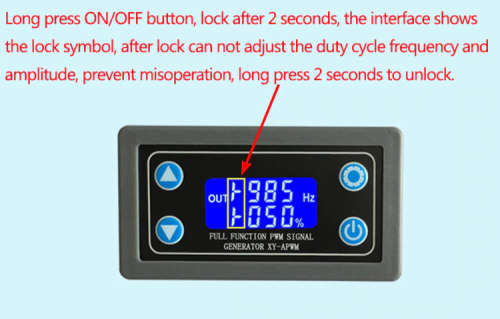

4. With locking function to prevent misoperation;
5. This product can be used as a 3W power supply.
6. All parameters are saved after power failure.
Uses:
1. Used as a square wave signal generator to generate square wave signals for experimental development and use;
2. Square wave signal used to control motor driver;
3. Generate adjustable pulses for MCU use.
4. Generate adjustable pulses and control related circuits (PWM dimming and speed regulating applications).
