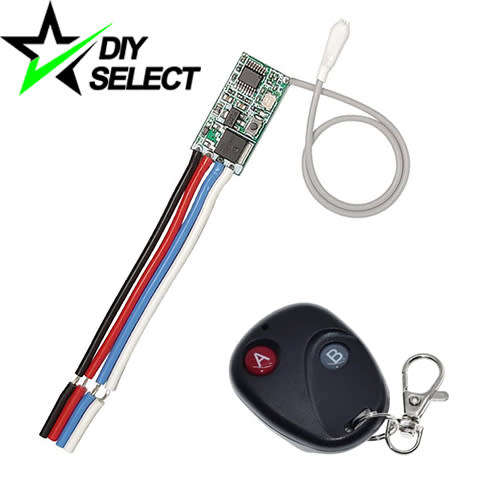

Controller Micro RF Relay 5-24V 1 Channel with Antenna + 1 Remote 433MHz:
Specifications:

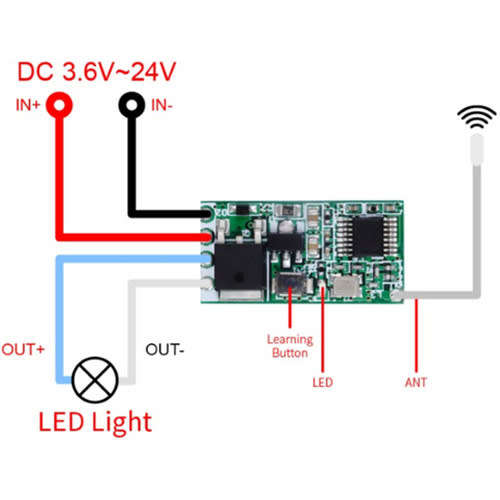

Working Voltage: 5-24V DC
RF Frequency: 315Hz
Transmitting Distance: 30m (open space)
Load Capacity: 2A

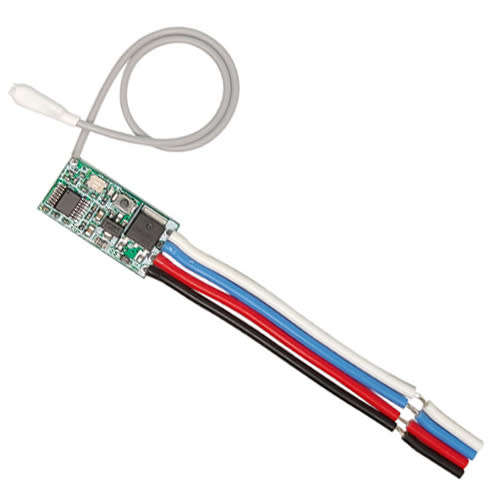

Board Size: 26 x 13 x 3mm

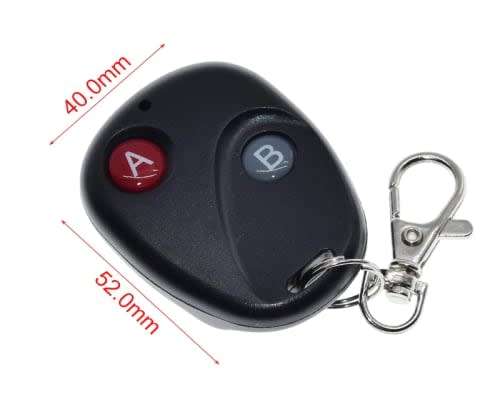

* 12V 23A Battery for remote included
Uses:
Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control. Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc.
Functions:
Momentary: Press and hold the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press the remote button once, the relay connects, press the remote button again, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnects.
Setting the Functions:
Removing The Code: (This process must be done each time before changing the mode)
Press the learning button 8 times in a row, the indicator light will flash several times showing the learning code has been removed.
Learning the code: (Momentary)
Press the learning key on the receiver once to enter the momentary setting mode.
Wait for a moment, the LED will light up and enter learning state.
Press the remote button, LED indicator on the receiver board will flash then go off indicating successful learning.
Learning the code: (Toggle)
Press the learning key on the receiver twice to enter the toggle setting mode.
Wait for a moment, the LED will light up and enter learning state.
Press the remote button, LED indicator on the receiver board will flash then go off indicating successful learning.
Learning the code: (Latching)
Press the learning key on the receiver three times to enter the latching setting mode.
Wait for a moment, the LED will light up and enter learning state.
Press the remote button A, LED indicator on the receiver board will flash then light up again, press the remote button B, the receiver board will flash again and go off indicating successful learning.
