PWM Motor Speed Controller:



Free combined shipping for additional orders placed in our other store "LED SELECT"  https://bidorbuy.co.za/seller/434337



Specifications:

Working Voltage: 9-60V DC, input anti-reverse connection protection
Rated Current:
12A
Maximum Power:
500W
Working Frequency:
1 - 99KHz adjustable, 1KHz step, default frequency of 20KHz
Duty Cycle:
0-100%, 1
% Step
Size: 79 x 43 x 26mm
Install Hole Size:
76.5 x 39mm

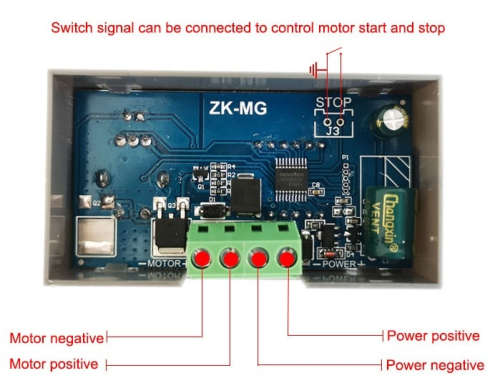

1. Equipped with start-stop button, and can be external switch control, to meet various customer control requirements.
(note: the external switch should use the self-reset button or key, press to open and then press to close;It can't realize the function of opening output when it is closed all the time, and closing output when it is not closed)
2. Motor soft start function. When starting the motor, the current increases slowly and there is no shock current, which can effectively protect the motor and prolong its service life.
3. Duty cycle upper and lower limits and working frequency can be set to facilitate customers to operate and use their motors according to their working characteristics.

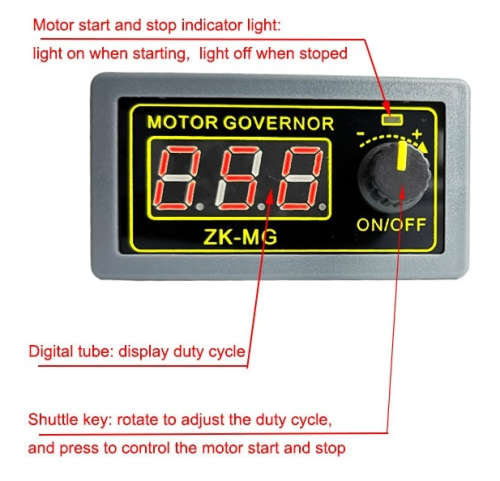

4. Digital encoder knob adjusts motor speed, which is more accurate and consistent than an ordinary potentiometer.
