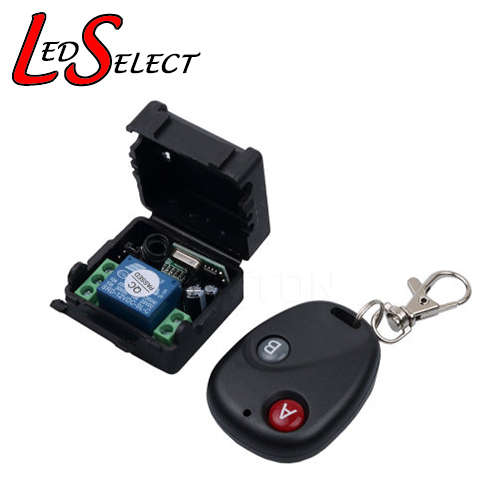

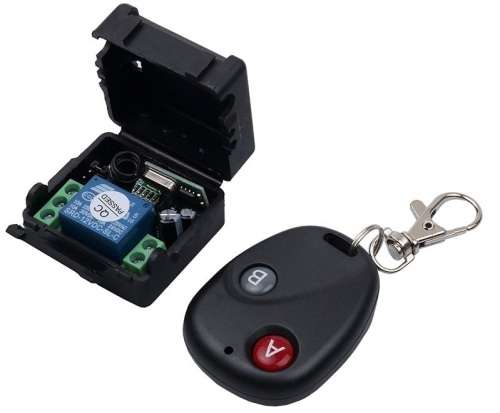

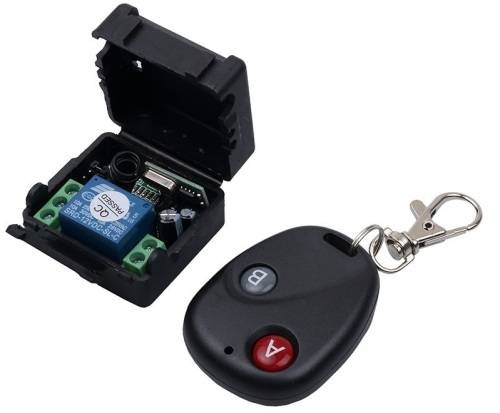

Controller Relay 12V 1 Channel + 1 Remote (2 Button) 433MHz**IN STOCK**

Remote Control Relay Switch 1 channel DC 12V & 1 Remote:

*NOTE: This unit can use more than one remote. Extra remotes can be purchased separately in our store. Please search "Remote Only - 2 Button Black 433MHZ".

Uses:

Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control. Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc.

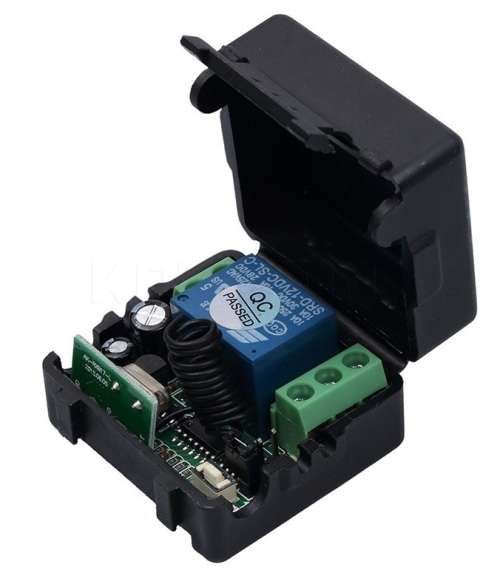

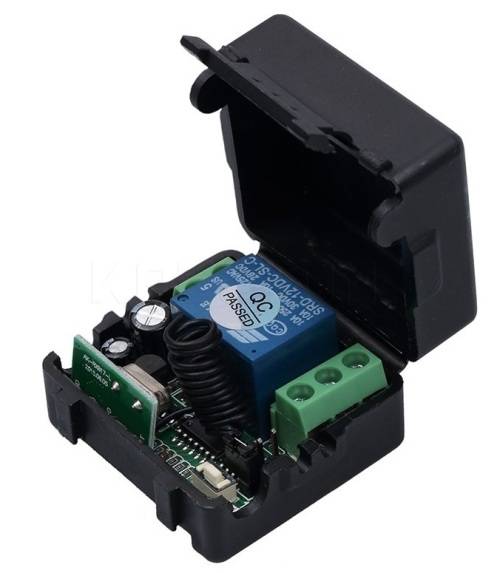

Receiver Specifications:

Channels: 1
Working Voltage: 12V DC
Operating Current: <6mA
Output Current: <10A
Sensitivity: ≥-105dBm
Frequency: 433MHz
Dimension: 38 x 38 x 27mm
Operating Temperature: -40 to +80 degrees
Code: Learning code (Non-Locked, Locked, Auto-Locked)

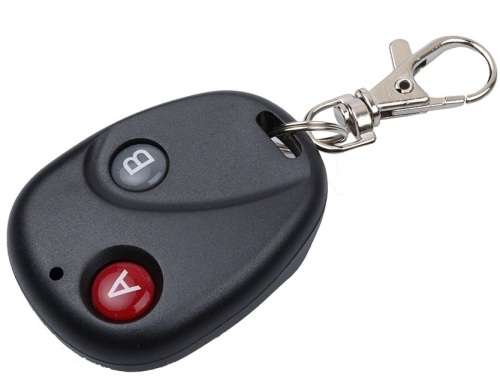

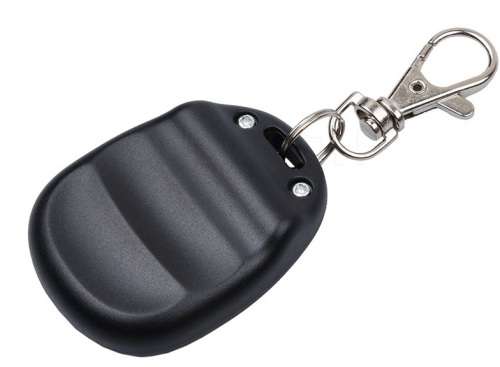

Remote Control Specifications:

Voltage: 6V DC
Frequency: 433MHz
Range: 50-100 meters (Open Space)
Current: < 15mA
Buttons: ON/OFF (A/B)
Size: 50 x 38 x 13mm

Learning Method:

1. Once the unit is connected the indicator light will always be on. Then you press and hold the learning button for 3 seconds. The indicator light will power off during this time.
2.Release the learning button and immediately press and hold any key of remote control
3. After the indicator light flashes 5 times, it shows that you have successfully set the code.

Remove Method:

Press the learning button for 9 seconds, the indicator light returns to being powered on showing the learning code has been removed.

Functions:

Mode 1: Set Jumper on pins 2+3 = Press on/off switch once to turn on connected appliance and again to switch it off

Mode 2: Set Jumper on pins 1+2 = Keep in the on/off switch to turn on connected appliance and let go of switch to turn it off.
