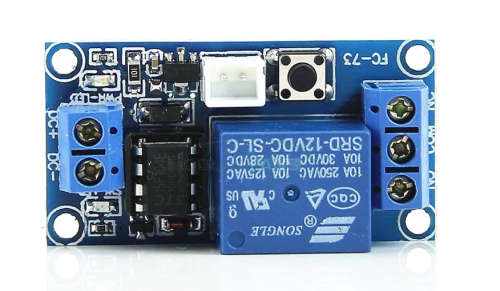

Controller Relay 12V 1 Channel on Board with Trigger **LOCAL STOCK**

Controller Relay Board 12V:

Category: 1500312645 / 1518312645 - Controller Relay Module

Specifications:

Working Voltage: 12V
Current: more than 100mA
Maximum Load: AC 250V/10A, DC 30V/10A
Size: 50 x 26 x 18mm

Features:

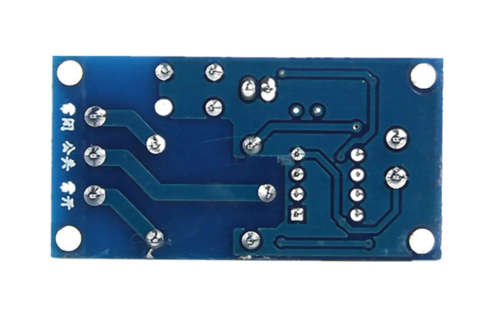

- Double panel design PCB
- Chips made of using stable and reliable control , stable and reliable performance, strong anti-interference, not false triggering, performance is superior than the CD4013
- Regulator has the power to provide adequate and stable voltage, and have enough vents to ensure stable and reliable product for a long time to work
- With anti- reverse protection diode power , reverse power for a short time without any damage to the product
- Use SONGLE genuine relay control load in 250V 10A ( AC ) and 30V 10A ( DC ) under load can withstand

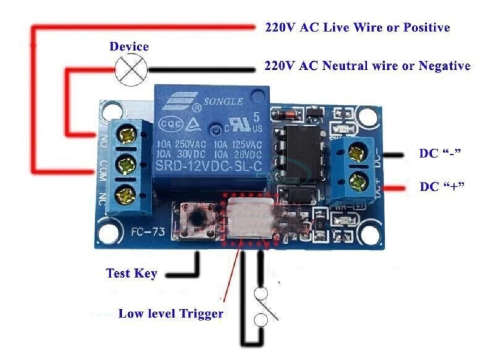

- Can also trigger an external trigger switch, the products have a connection with a good seat and lead, more convenient to use
- Triggering sensor module can also be used to do other triggers, are valid as long as the trigger is low, there are more functional expansion
- Has a touch switch as product testing, stability testing of products directly
