Name: Controller Relay 12V 2 Channel + 1 Remote (2 Button) 315Mhz **LOCAL STOCK**
SKU: CNT420
Price: 166.00 ZAR
Availability: SoldOut

Controller Relay 12V 2 Channel + 1 Remote (2 Button) 315Mhz **LOCAL STOCK**

9 were available / new

R166.00

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8481

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

CNT420

Bob Shop ID

571648143

Relay Switch 2 Channel DC 12V & 1 Remote:

Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337

Specifications:

Working Voltage: 12V DC
RF Frequency: 315Mhz
Relay Switch Voltage: 10A/250VAC; 10A/30VDC
Working Status: Self-locking
Memory Save: Yes
Transmitting Distance: 50 - 100m (open area) (please stretch the antenna in order to achieve effective distance)

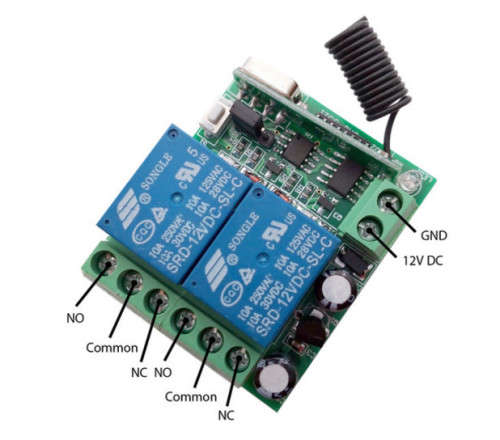

Wiring Diagram:
+V: 12V + Input
- V: 12V - Input
NO: Output, normally open
COM: Output, common
NC: Output, normally closed

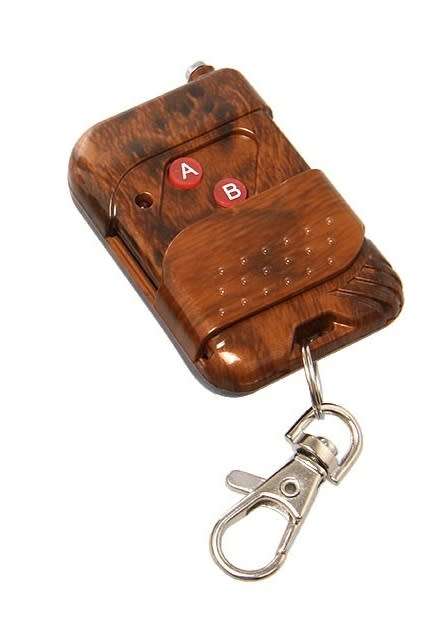

* 12V 23A Battery for remote included

Uses:

Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control. Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc.

Modes: (Applies to both relays. Change jumper on relay controller to change modes)

Momentary: Press and hold the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press the remote button once, the relay connects, press the remote button again, the relay disconnects.
Latching: Press the remote button B, the relay connects, press the remote button A, the relay disconnects.

Setting the Functions:

Removing The Code:
Press the learning button for 15 seconds, the indicator light will flash several times showing the learning code has been removed.

Learning The Code:
Press the learning button for 2 seconds, the indicator light will light up, press the A or B button on the remote to learn code.
