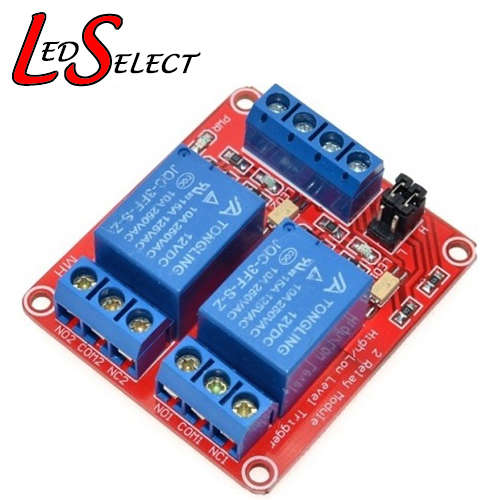

Controller Relay 12V 2 Channel on Board **LOCAL STOCK**

3 were available / new
R69.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
CNT467
Bob Shop ID
509071132

Controller Relay Board 12V:

 Category Code: 1500312645 / 1520312645 - Controller Relay Module



Specifications:

Operating Voltage: 12V
Maximum Load: AC 250V/10A, DC 30V/10A
Current: 5mA
Power Indicator: Green
Relay Status Indicator: Red

Size: 50 x 45 x 20mm



Module Port:

1. DC+: DC power supply positive
2. DC-:   DC power supply negative
3. IN1:   Channel 1 signal trigger terminal
4. IN2:   Channel 2 signal trigger terminal



Relay Output:

1. NC1:     Channel 1 relay normally closed pin
2. COM1:  Channel 1 relay common pin
3. NO1:     Channel 1 relay normally opened pin
4. NC2:     Channel 2 relay normally closed pin
5. COM2:  Channel 2 relay common pin
6. NO2:     Channel 2 relay normally opened pin



High And Low Level Trigger Option:

1. S1:   It is option switch for channel 1 relay
2. S2:   It is option switch for channel 2 relay
