Controller Relay 12V 4 Channel + 1 Remote (4 Button) 433MHz **LOCAL STOCK**

Relay Switch 4 Channels DC 12V & 1 Remote:

Specifications:

Input Voltage: 12V DC
Operating Frequency: 433MHZ
Channel Numbers: 4
Operation Way: Inching, Self-locking
Coding Way: Intelligent Learning
Operating Temperature: -40°C - +80°C
Output Current: ≤ 10A
Receiver Sensitivity: ≥-105dBm
Factory Default: Self-locking
Code: Learning Code ( jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched )
Board Dimension: 72.5 x 52.5 x 23mm

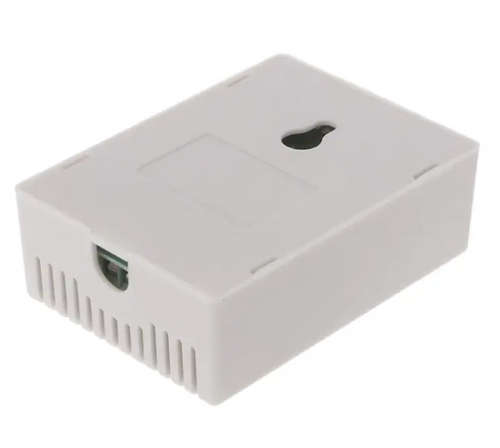

Case Dimension: 74 x 53 x 30mm

* 12V 23A Battery for remote included

Learning and remove method:

1. Press the first learning code .the indicator flash ,loosen your finger ,press first button of the remote control ,the indicator flash 2 times and off .press the second learning code .the indicator flash ,loosen your finger ,press second button of the remote control ,the indicator flash 2 times and offit mean you learn it successfully .
2. Remove/clean: press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully.

Uses:

Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control. Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc.

* See this link for operating instructions: https://www.youtube.com/watch?v=7IP1isvo5Sg
