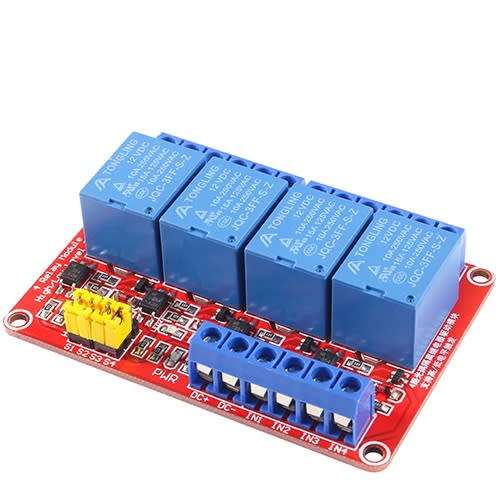

Controller Relay 12V DC 4 Channel Module Board **LOCAL STOCK**

4 were available / new
R112.00
Shipping
Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Diy Select - Cape Town8430
100.00 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
CNT468
Bob Shop ID
625467148

Controller Relay Board 12V:



Specifications:

Operating Voltage: 12V DC
Maximum Load: AC 250V/10A, DC 30V/15A
Trigger Current: 5mA
Power Indicator: Green
Relay Status Indicator: Red
Size: 50 x 73 x 20mm

This unit can be used to open or close 4 separate circuits. The control load can be AC or DC up to 10A or 15A respectively.

Module Port:

1. DC+: DC power supply positive
2. DC-:  DC power supply negative
3. IN1: Channel 1 signal trigger terminal
4. IN2: Channel 2 signal trigger terminal
5. IN3: Channel 3 signal trigger terminal
6. IN4: Channel 4 signal trigger terminal



Relay Output:

1. NC1:     Channel 1 relay normally closed pin
2. COM1:  Channel 1 relay common pin
3. NO1:     Channel 1 relay normally opened pin
Repeats for Channel 2,3,4.



High And Low Level Trigger Option:

1. S1: Option switch for channel no. 1 Relay
2. S2: Option switch for channel no. 2 Relay
3. S3: Option switch for channel no. 3 Relay
4. S4: Option switch for channel no. 4 Relay
