Controller Relay 12V DC 4 Channel Module Board LOCAL STOCK

Name: Controller Relay 12V DC 4 Channel Module Board **LOCAL STOCK**
SKU: CNT468
Price: 112.00 ZAR
Availability: InStock

New

2 available

Only 2 left – grab it before it’s gone!

R112.00

Add to watchlist Watch

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8666

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

CNT468

Bob Shop ID

653619236

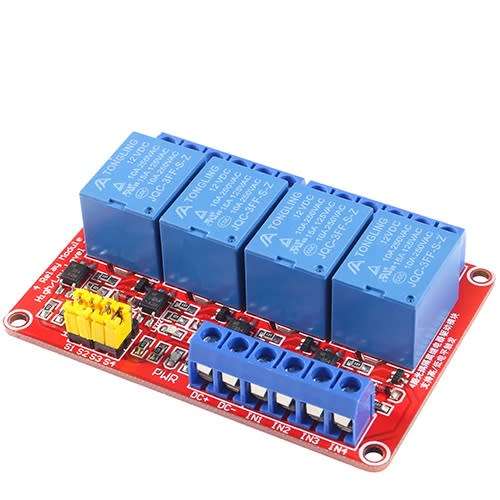

Controller Relay Board 12V:

Specifications:

Operating Voltage: 12V DC
Maximum Load: AC 250V/10A, DC 30V/15A
Trigger Current: 5mA
Power Indicator: Green
Relay Status Indicator: Red
Size: 50 x 73 x 20mm

This unit can be used to open or close 4 separate circuits. The control load can be AC or DC up to 10A or 15A respectively.

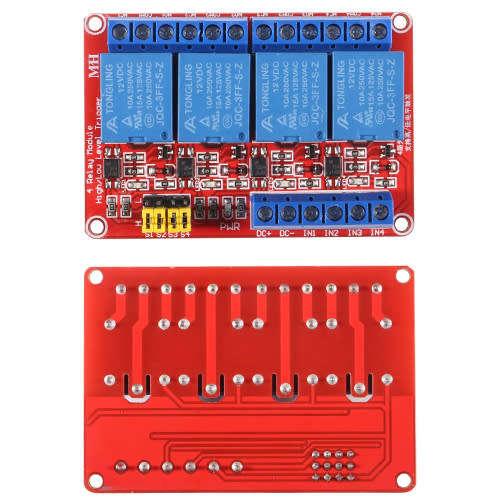

Module Port:

1. DC+: DC power supply positive
2. DC-: DC power supply negative
3. IN1: Channel 1 signal trigger terminal
4. IN2: Channel 2 signal trigger terminal
5. IN3: Channel 3 signal trigger terminal
6. IN4: Channel 4 signal trigger terminal

Relay Output:

1. NC1: Channel 1 relay normally closed pin
2. COM1: Channel 1 relay common pin
3. NO1: Channel 1 relay normally opened pin
Repeats for Channel 2,3,4.

High And Low Level Trigger Option:

1. S1: Option switch for channel no. 1 Relay
2. S2: Option switch for channel no. 2 Relay
3. S3: Option switch for channel no. 3 Relay
4. S4: Option switch for channel no. 4 Relay
