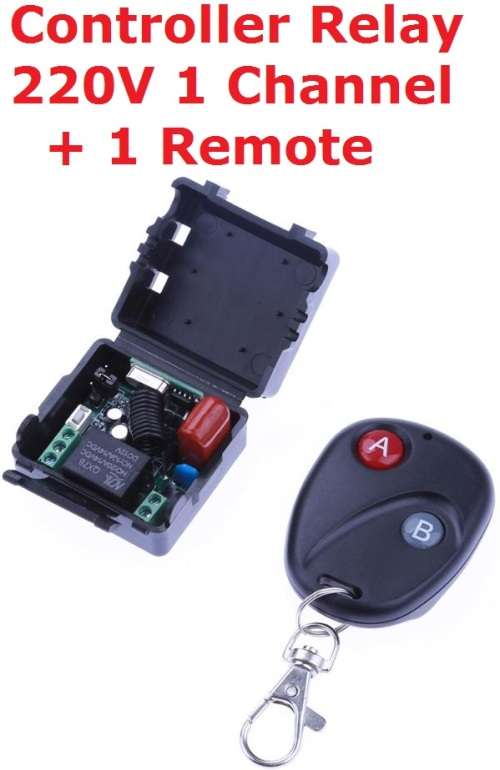

Controller Relay 220V 1 Channel + 1 Remote (2 But) 315mhz **IN STOCK**

Controller Relay 220V 1 Channel + 1 Remote (2 But) 315mhz:

Specifications:

Operating voltage: AC 180-240V
Operating temperature: -40~80 degrees
Operating frequency: 315/433MHZ(default 315MHZ)
Maximum load: 1500W
Receive sensitivity: ≥-95dB
Remote control distance: 20-40m
Switch size: 40 x 40 x 28mm
Remote Control size: 50 x 40 x 12mm
Control panel weight: approx. 25g
Remote control weight: approx. 22g
Material: ABS
Working Mode: Self locking, point action and interlocking

Operation Manual:

Press the learn button for three seconds, lights out (that has entered the state of learning), Release the learning button, press any key of the remote control, and the indicator light flashes 5 times to show the success of the study.
Note: The controller can learn the fixed code / learning code, total 16 different encoding, arbitrary button remote control, and beyond will be cleared in the early learning of remote control.

Removal Method:

Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success.

Connection Way:

 1. 220 volts ac output: learning single remote control switch input, 220 v ac power after 220, the output received L very public end, electrical appliances on the output side often start and N end, a simple control circuit is designed.
2. Direct current output: the learning type 220 volt single-channel remote control switch input terminal, and then a 220 volt ac power supply. The positive terminal of the dc power supply on the output end, and the negative pole of the cathode is connected to the cathode. The dc power supply can range from 0V ~ 24V.

 Uses:

Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc
