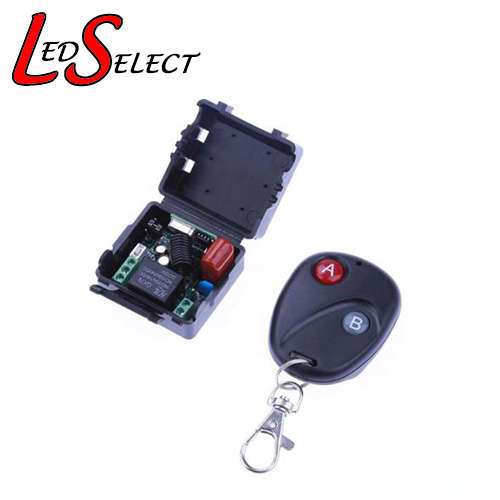

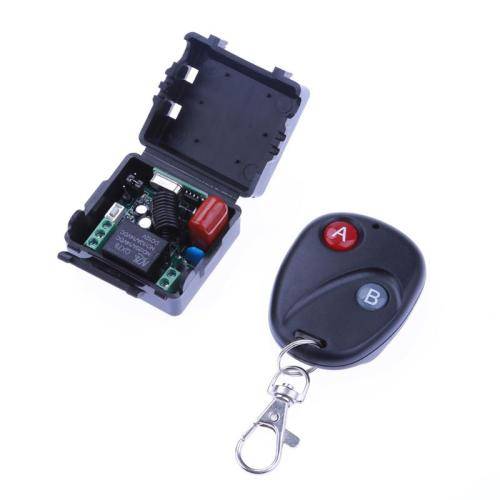

Controller Relay 220V 1 Channel + 1 Remote (2 Button) 433MHz **IN STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Controller Relay 220V 1 Channel + 1 Remote:
*NOTE: This unit can use more than one remote. Extra remotes can be purchased separately in our store. Please search "Remote Only - 2 Button Black 433MHZ".
Uses:
Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control. Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc.
Specifications:
Operating voltage: AC 180-240V
Operating temperature: -40~80 degrees
Operating frequency: 433MHZ
Maximum load: 1500W
Receive sensitivity: ≥-95dB
Remote control distance: 20-40m

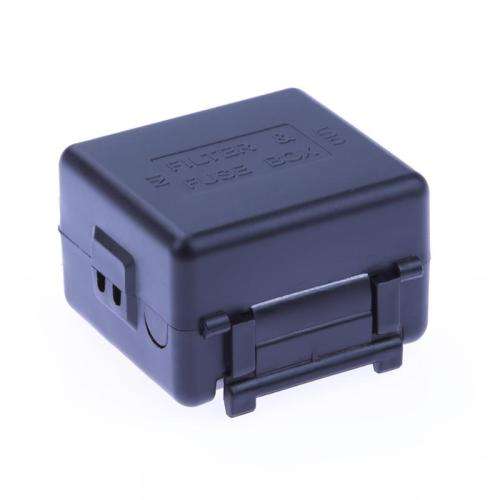

Switch size: 40 x 40 x 28mm

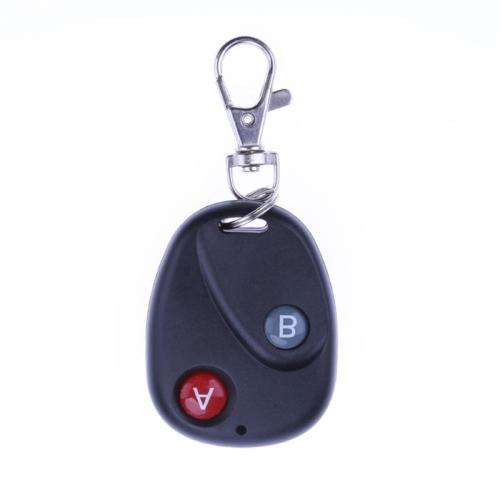

Remote Control size: 50 x 40 x 12mm
Control panel weight: approx. 25g
Remote control weight: approx. 22g
Material: ABS
Working Mode: Self locking, point action and interlocking
Learning Method:
1. Once the unit is connected the indicator light will always be on. Then you press and hold the learning button for 3 seconds. The indicator light will power off during this time.
2.Release the learning button and immediately press and hold any key of remote control.
3. After the indicator light flashes 5 times, it shows that you have successfully set the code.
Remove Method:
Press the learning button for 9 seconds, the indicator light returns to being powered on showing the learning code has been removed.
Connection Way:
1. 220 volts ac output: learning single remote control switch input, 220 v ac power after 220, the output received L very public end, electrical appliances on the output side often start and N end, a simple control circuit is designed.
2. Direct current output: the learning type 220 volt single-channel remote control switch input terminal, and then a 220 volt ac power supply. The positive terminal of the dc power supply on the output end, and the negative pole of the cathode is connected to the cathode. The dc power supply can range from 0V ~ 24V.
