Name: Controller Relay 5V 1 Channel + 1 Remote (2 Button) 433MHz**LOCAL STOCK**
SKU: CNT411
Price: 150.00 ZAR
Availability: SoldOut

Controller Relay 5V 1 Channel + 1 Remote (2 Button) 433MHz**LOCAL STOCK**

3 were available / new

R150.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

CNT411

Bob Shop ID

523535345

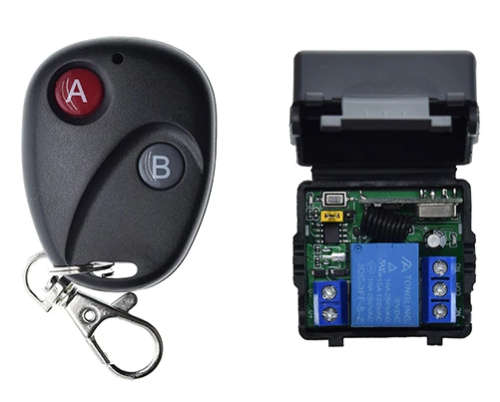

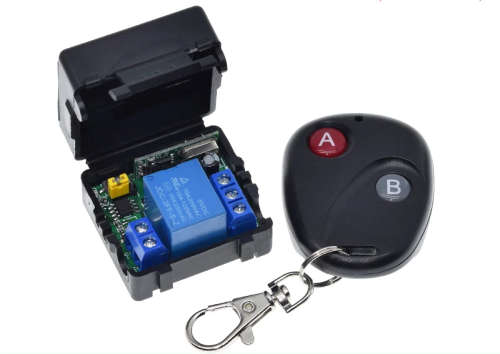

Remote Control Relay Switch 1 channel DC 5V & 1 Remote:

Category Code: 1500312645 / 1520312645 - Controller Relay Module + Remote

* 12V 23A Battery for remote included

Uses:

Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control. Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc.

Specifications:

Working Voltage: 5V DC
RF Frequency: 433Hz
Transmitting Distance: 30m (open space)
Working Mode: Momentary, Toggle, Latching
Memory Save: Yes

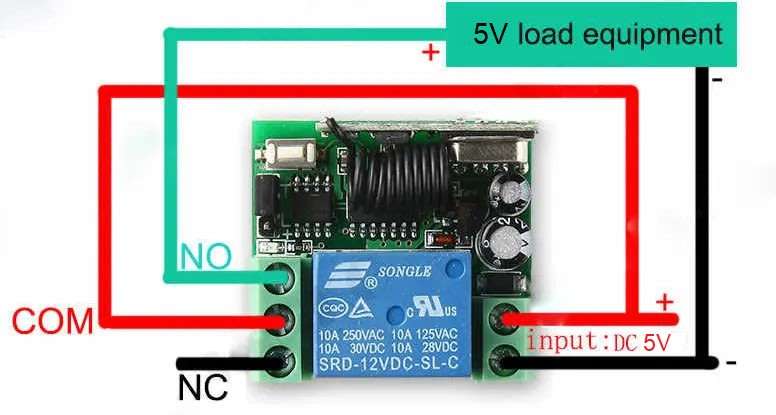

Wiring Diagram:
+V: 12V + Input
- V: 12V - Input
NO: Output, normally open
COM: Output, common
NC: Output, normally closed

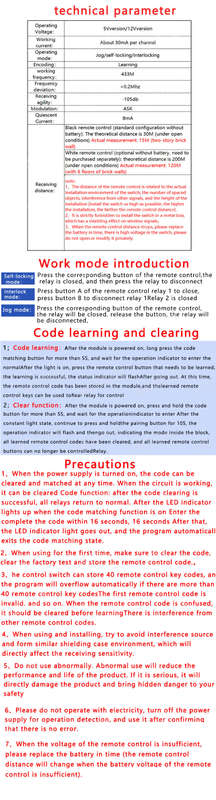

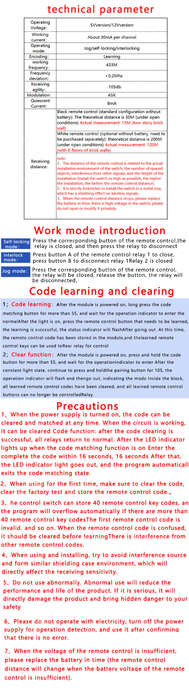

Functions:

To change functions move the jumper connector to different pins or remove entirely. To remove all codes keep program button on relay in for 20 seconds till light goes off.

Momentary: Press and hold the remote button A, the relay connects, release the remote button, the relay disconnects. B - No function
Toggle: Press the remote button A once, the relay connects, press the remote button again, the relay disconnects. B - No function
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnects.
