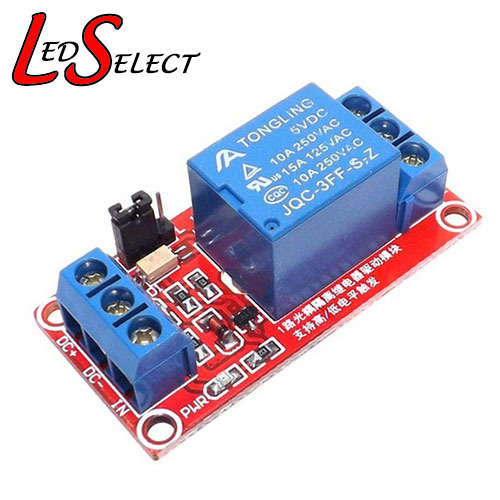

Controller Relay 5V 1 Channel on Board:
Specifications:
Relay Version: 5V
Quiescent Current: 5mA
Maximum Current: 190mA
Trigger Current: 2 - 4mA
Trigger Voltage (low): 0 - 1.5V
High: 2.5 - 5V
Module Interface:
DC+: positive power supply (voltage relay according to requirements, and 24V 5V.9V.12V selection)
DC-: connect power negative
IN: can be high or low level control relay
Relay Outputs:
NO: normally open relay interface and relay before vacant after the pull with COM
COM: Common Interface Relays
NC: normally closed relay interface and relay before with COM, after the pull-vacant
