Controller Relay 5V 1 Channel on Board **LOCAL STOCK**

Controller Relay 5V 1 Channel on Board **LOCAL STOCK**

New 2 available
Only 2 left – grab it before it’s gone!
R45.00
Shipping
Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
CNT455
Bob Shop ID
651620567

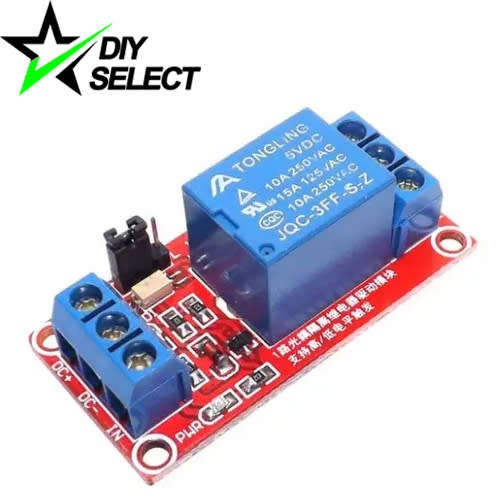

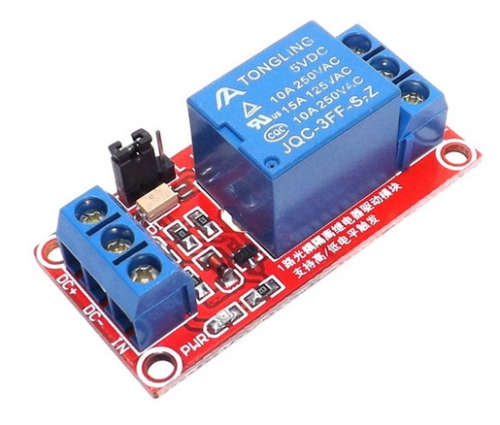

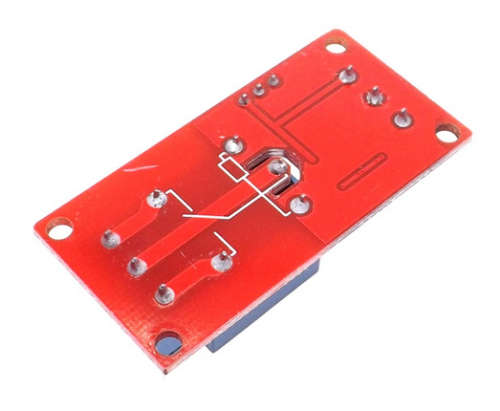

Controller Relay Board 5V 1 Channel:



Specifications:

Working Voltage: 5V
Maximum Load: AC 250V/10A, DC 30V/10A
Quiescent Current: 5mA
Maximum Current: 190mA

Trigger Current: 2 - 4mA

Trigger Voltage: Low: 0 - 1.5V
                          High: 2.5 - 5V

Size: 50 x 26 x 18mm


Module Interface:

DC+: positive power supply
DC-: connect power negative
IN: can be high or low level

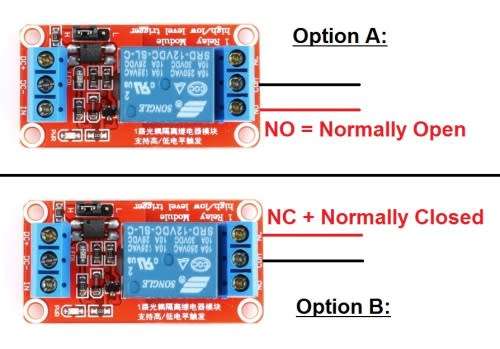

Relay Outputs:

NO: Normally open relay
COM: Common
NC: Normally closed
