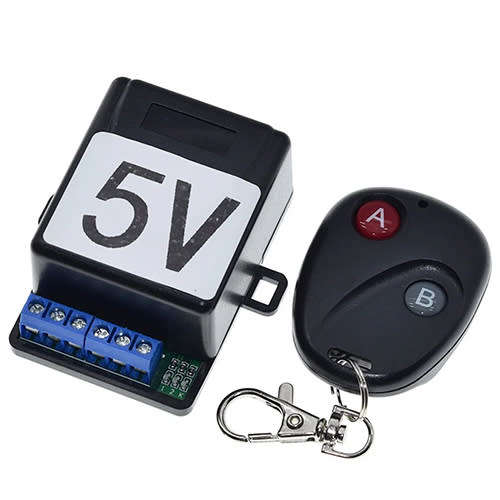

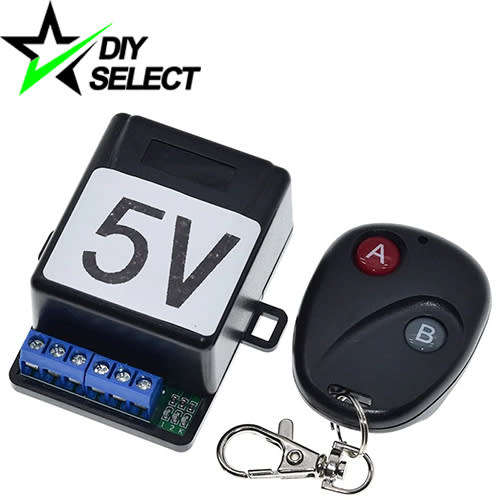

Controller Relay 5V 2 Channel + 1 Remote (2 Button) 433MHz **LOCAL STOCK**

Specifications:

Working Voltage: 5V DC
RF Frequency: 433Hz
Transmitting Distance: 30m (open space)
Load Capacity: 12V DC 10A; 220V AC 10A
Memory Save: Yes

Wiring Diagram:
+V: 12V + Input
- V: 12V - Input
NO: Output, normally open
COM: Output, common
NC: Output, normally closed

 * 12V 23A Battery for remote included

Uses:

Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control. Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc.

Functions:

To change functions move the jumper connector to different pins or remove entirely. To remove all codes keep program button on relay in for 20 seconds till light goes off.
