Controller Relay 5V DC 4 Channel Module Board **LOCAL STOCK**
Sold

Controller Relay 5V DC 4 Channel Module Board **LOCAL STOCK**

2 were available / new
R115.00
Shipping
Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
CNT457
Bob Shop ID
593122117

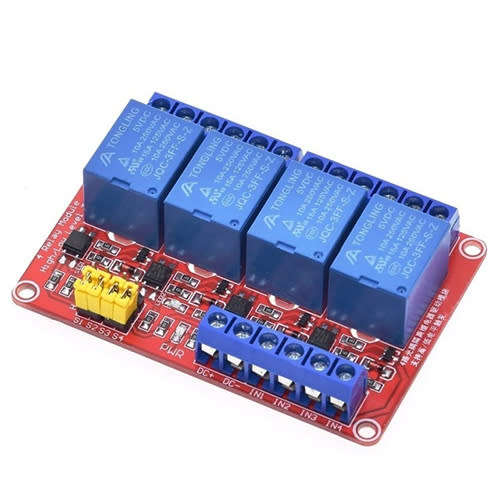

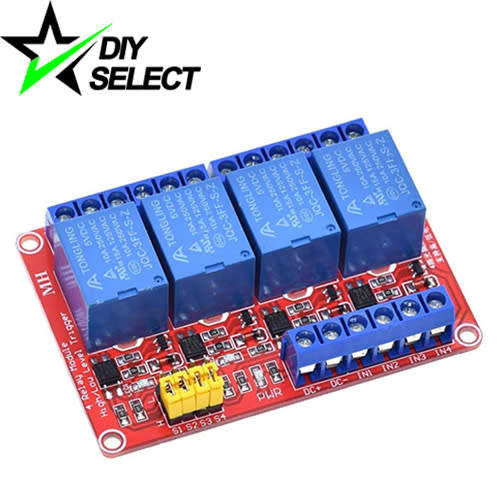

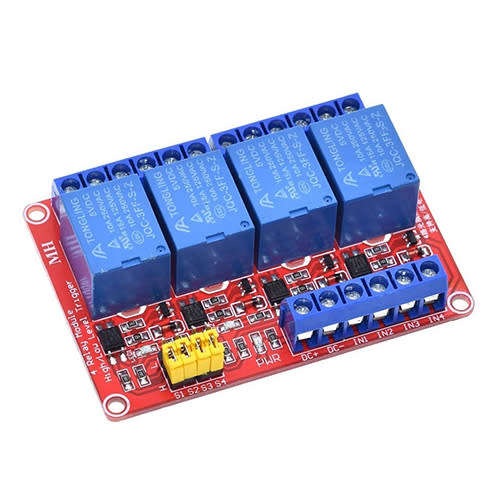

Controller Relay Board 5V:

Free combined shipping for additional orders placed in our other store "LED SELECT"  https://bidorbuy.co.za/seller/434337



Specifications:

Operating Voltage: 5V DC
Maximum Load: AC 250V/10A, DC 30V/15A
Trigger Current: 5mA
Power Indicator: Green
Relay Status Indicator: Red

Size: 50 x 73 x 20mm



Module Port:

1. DC+: DC power supply positive
2. DC-:  DC power supply negative
3. IN1: Channel 1 signal trigger terminal
4. IN2: Channel 2 signal trigger terminal
5. IN3: Channel 3 signal trigger terminal
6. IN4: Channel 4 signal trigger terminal



Relay Output:

1. NC1:     Channel 1 relay normally closed pin
2. COM1:  Channel 1 relay common pin
3. NO1:     Channel 1 relay normally opened pin
Repeats for Channel 2,3,4.



High And Low Level Trigger Option:

1. S1: Option switch for channel no. 1 Relay
2. S2: Option switch for channel no. 2 Relay
3. S3: Option switch for channel no. 3 Relay
4. S4: Option switch for channel no. 4 Relay
