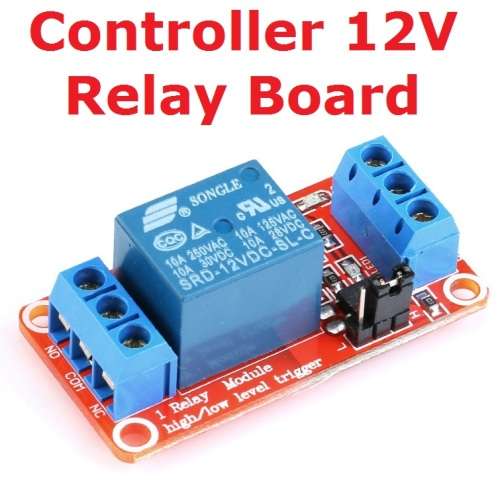

Controller Relay Board 12V:

Specifications:

Size: 50 x 26 x 18.5mm
Operating Voltage: 12V

Current: 5mA
Power Indicator: Green
Relay Status Indicator: Red
Maximum Load: AC 250V/10A, DC 30V/10A



Module interface:

1. DC+: positive power supply (VCC)
2. DC-: negative power supply (GND)
3. IN: can be high or low level control relay

Relay outputs:

1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

High and low level trigger options:

It is low level trigger when jumper connect to LOW pin

It is high level trigger when jumper connect to HIGH pin
