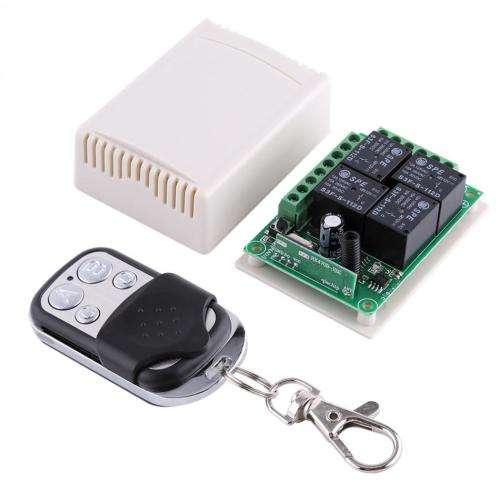

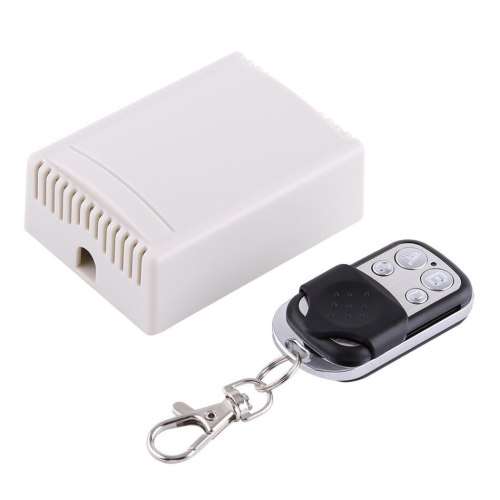

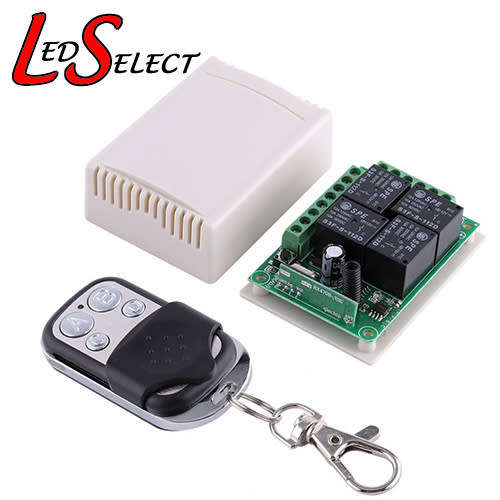

Remote Control Relay Switch 4 channels DC 12V & 1 Remotes:
Category Code: 1500312645 / 1520312645 - Controller Relay Module + Remote
Specifications:

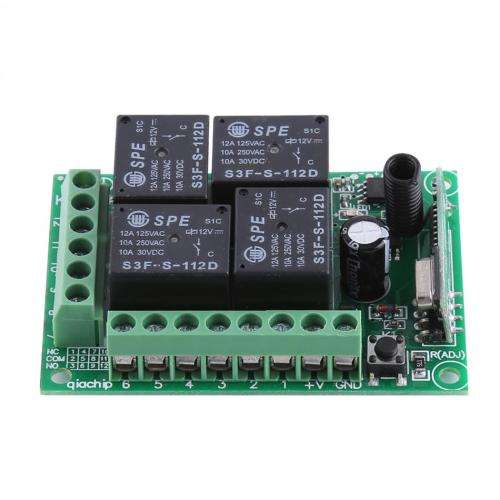

Receiver:
Working Voltage: DC12V
Working Temperature: -40 to +80
Receiver Sensitivity: more than -105dBm
Working Frequency: 433mHz
Max Load Current: 10A
Material: Plastic + Metal
Size: 72 x 52 x 26mm
Remote control (transmitter):
Operating Voltage: DC12V
Frequency: 315/433mHz
Operating Current: 13 mAh
Code Type: Fixed code / Learning code
Frequency Distance: 20-200m
Material: Plastic + Metal
Size: 58 x 39 x 14mm
How to use:
1. Jog/Non-latched: Press SET button once.
2. Self -lock/Self-latched: Press SET button twice.
3. Inter-lock /Latched: Press SET button thrice.
