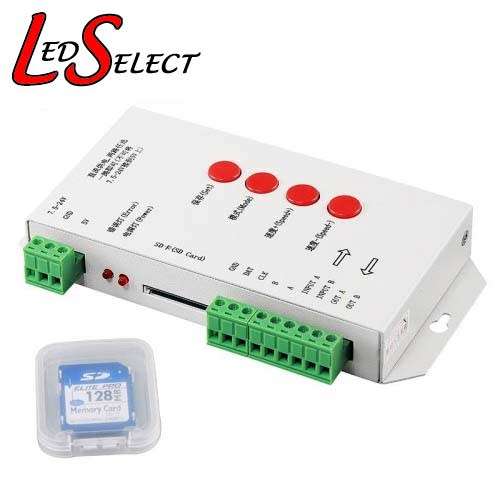

Controller T1000S Programmable LED Pixel 5-24V WS2812B LPD6803 with SD Card **LOCAL STOCK**

Controller T1000S LED Pixel 5-24V:

Category: 1500312645 / 1502312645 - Controller Led Strip

Specifications:

Input Voltage: DC 5-24V
Power: 1W
Working Temperature: -30 to 85 deg
MAX number of pixels: 2048
Signal Port: 3pin connect port
Size: 165 x 80 x 30mm
Weight: 0.35KG

Memory card:
Type: SD card
Capacity: 128MB—2GB
Format: FAT

- Compatible with single line or double line chips.
- 32—256 Gray, Support software Gamma correction.
- Support the rules and special-shaped handle.
- Single-port output, can support 2048 lights.
- Off-line(SD Card) control, play back content stored in the SD card.

Applications:
Led Strip, Led Pixel Strip, Led Display, Led Module, Flashing Led Light, Led Sign Light, Led Running Light, Led Christmas Light, etc.

Please Note:

- When T-1000S controller less than 512 pixels the frame rate can reach 30fps. When T-1000S control more than 512 pixels the frame rate will slow down automatically.
- When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the Controller.
- T-1000S Must use the New Software LedEdit 2014.
