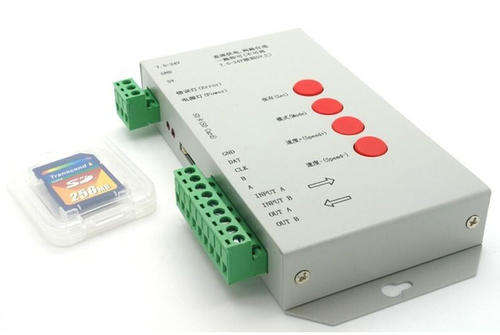

Controller T1000S SD Card:
This unit is used to control Led Strip Lights: WS2811, WS2812, WS2812B
Warning:
Do not take out SD CARD when the controller is POWER ON, the SD card will be damaged!
Memory card:
Type:SD card
Capacity:128MB-2GB
Store file:*.led
Physical parameters:
Working temperature :-30-85degree celsius
Working voltage:DC5V / DC7.5-24V
Working power:2W
Weight:0.3kg
Size:L165mm×W80mm×H30mm
Signal port:3pin connect port
T-1000S System features:
1. 256 Gray,Gamma correction processing software.
2. Support the rules and special-shaped handle.
3. Controller, a port output, may bring 1024/2048 light.
4. Off-line control, play back content stored in the SD card
5. T-1000C store a maximum of 16 documents
Note: The model T-1000S with one port output, When it control 512 pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically
