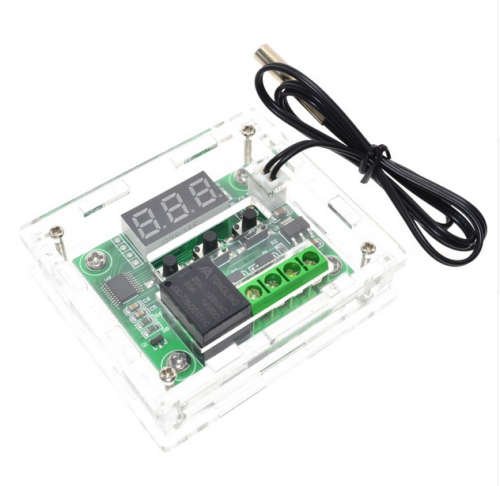

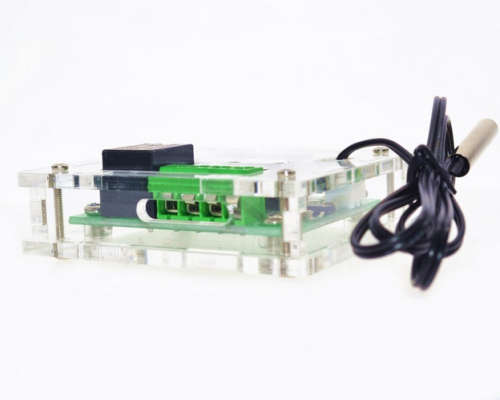

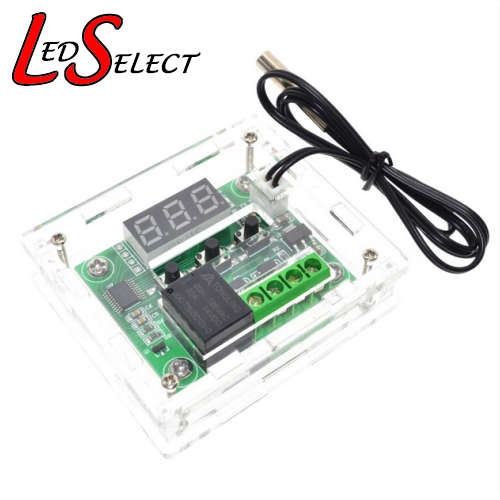

Controller Temperature Thermostat Thermometer W1209 DC 12V Cover 500mm Probe **LOCAL STOCK**

Thermostat Temperature Controller with Cover DC 9-15V:

Category: 1500312645 / 1510312645 - Controller Humidity / Temperature

Specifications:

Input Power: DC12V
Temperature Control Range: -50 to 110 ° C
Measurement Accuracy: 0.1 ° C
Measuring Inputs: NTC (10K 0.5%) Waterproof sensor
Output: 1 Channel relay output, capacity = 220V AC 10A
Display Type: 0.28 " three digital display tube (Red)
Probe Length: 500mm
Size: 48 x 40 x 14mm


Instructions:

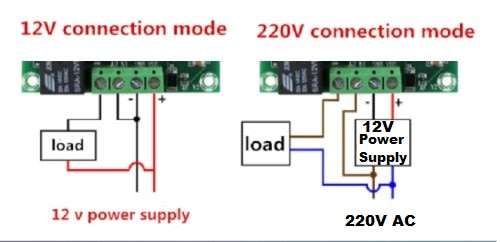

Connect the power supply and the load, you can supply to the controller,Is displayed as a measured temperature,Press the SET button, the display flashes the temperature,Press + - to set the desired temperature,After setting press SET to confirm return,The controller automatically performs the relay by setting off!

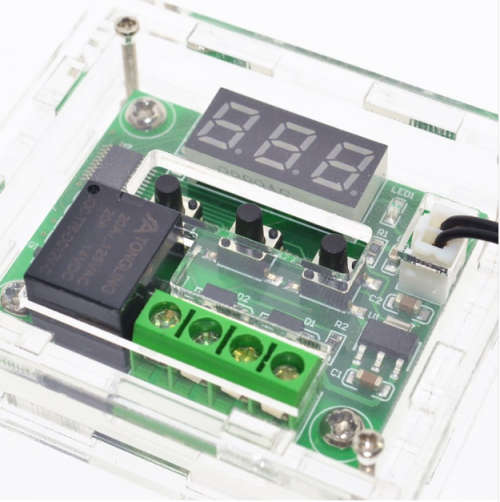

Lights, LED status descriptions:Indicator: Off The relay is switched off, Always indicate the relay is closed.LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Parameter Function:Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press SET or 10 seconds of no key activity confirmed their return to the controller

Code         Code Description             Setting range         Factory setting
P0             Cooling /Heating                    C/H                         C
P1             Hysteresis setting                 0.5-15                      2
P2             Highest setting upper limit      110                        110
P3             Lowest setting upper limit       -50                        -50
P4             Temperature correction          -7-7                         0
P5             Delay start time                0-10 Minutes                0
P6             High temperature alarm        0-110                      OFF

Off state, long press + - boot to restore the factory settings
