Name: Controller Temperature Thermostat W1209 With Dark Cover **LOCAL STOCK**
SKU: CNT345B/CNT350A
Price: 97.00 ZAR
Availability: SoldOut

Controller Temperature Thermostat W1209 With Dark Cover **LOCAL STOCK**

New

8 were available

R97.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

CNT345B/CNT350A

Bob Shop ID

510708430

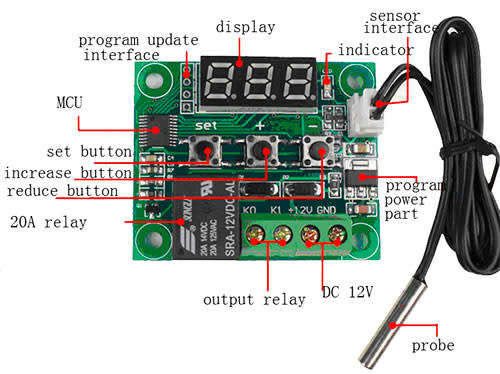

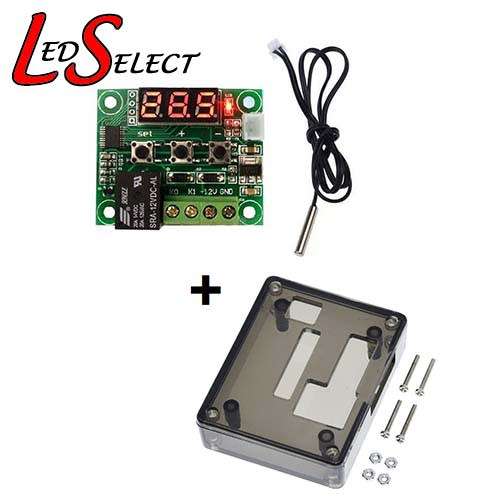

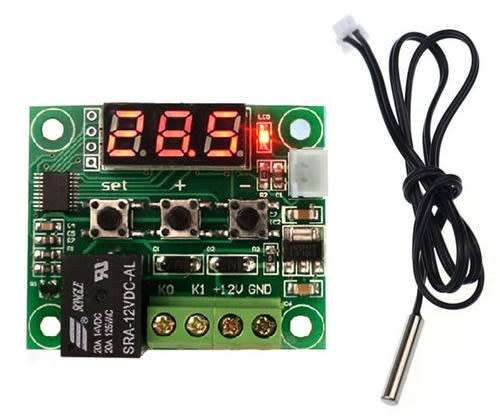

Controller Temperature + Housing Cover:

Category: 1500312645 / 1510312645 - Controller Humidity / Temperature

Specifications:

Temperature Control Range: -50 to 110 ° C
Measurement Accuracy: 0.1 ° C
Refresh Rate: 0.5 S
Input Power: DC 12V
Measuring Inputs: NTC (10K 0.5%)
Output: 1 Channel relay output, capacity = 220V AC 5/10A
Environmental Requirements: -10 to 60 degree Humidity 20% - 85%
Display Type: 0.28 " three digital display tube
Display Colour: Red

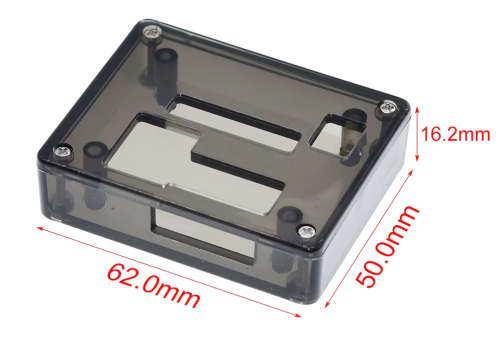

Size: 48 x 40 x 14mm
Probe Length: 300mm

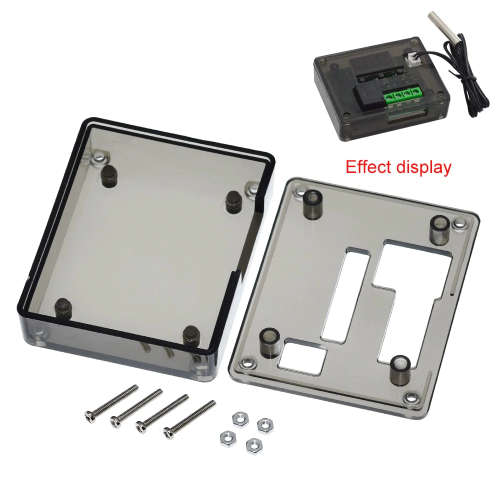

Cover Material: Acrylic
Cover Colour: Dark

Instructions:

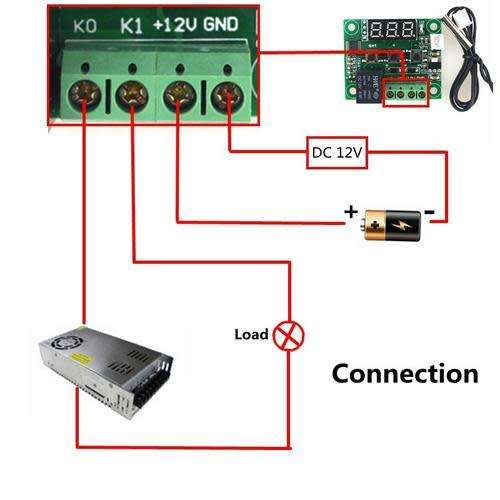

Connect the power supply and the load, you can supply to the controller,Is displayed as a measured temperature, Press the SET button, the display flashes the temperature,Press + - to set the desired temperature, After setting press SET to confirm return,The controller automatically performs the relay by setting off!

Lights, LED status descriptions: Indicator: Off The relay is switched off, Always indicate the relay is closed.LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Parameter Function:Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press SET or 10 seconds of no key activity confirmed their return to the controller
