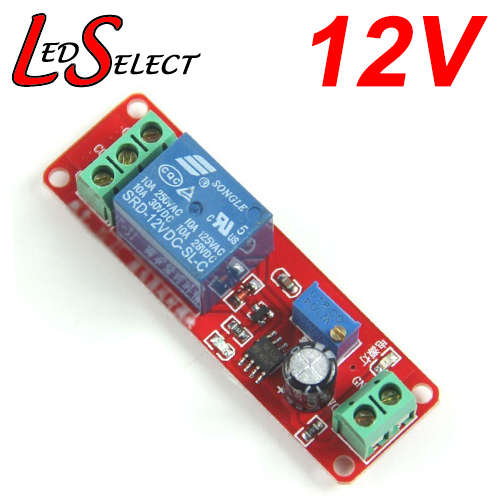

Controller Timer Delay 12V NE555 0-10Sec **LOCAL STOCK**

Controller Timer Delay NE555 0-10Sec 12V with Pot:

Category: 1500312645 / 1508312645 - Controller Time Delay

Specifications:

Module: NE555 chip
Delay Module: Delay connect module
Input Voltage: DC12V
Max Load: 2200W
Size: 68 x 21mm

Features:

Timing from Microseconds to HOURS.
Simple Circuitry.
Precision Pulse Generation / Timing,
FMAX = 500 KHz.
Use a single 4 to 16 VDC supply.
Excellent temperature stability 0.005% / °C.
Adjustable Duty Cycle.
Countless Application and Information Sources.

The output can be connected to AC 250V 10A DC 30V 10A
load

Chip (NE555) Characteristic:
When unconnected with the supply power, the state of the module is "NO" [ normal open ], CB and COM are conductive. CK and COM are unconductive.

When connected with the supply power, delay for 0-10s, the module will in the state of "NC" [ normal closed ], CB and COM are unconductive, CK and COM is conductive.

Applications of:
Vehicle equipment-delay to prevent car ignition, prevention of
high sudden current to burn components and devices.
