Controller Timer Delay Cycle Switch 0-999 seconds/minutes 3 button + Case **LOCAL STOCK**

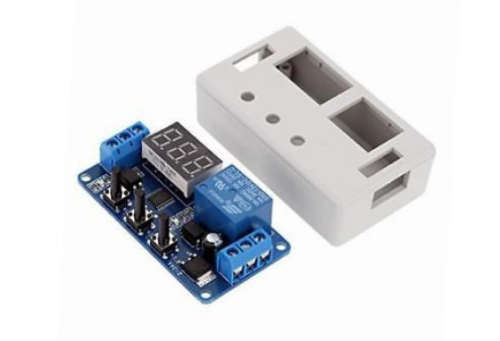

Delay Timer Switch Module + Case:

Category: 1500312645 / 1508312645 - Controller Time Delay

Specifications:

Working Voltage: 12V DC (normal operating voltage DC10V-16V)
Source: 4V - 20V DC (positive trigger common power button, PNP sensors, PLC signals, etc.)
Output Relay: AC 220v10A within 30v5A
Quiescent Current: 20mA
Working Current: 50mA
Working Temperature: -40 to 85 Degrees Celsius
Size: 70 x 40 x 25mm

Features:

Working mode selection:
After power on, long press K1. 2 seconds later into the select function mode, P1-4 for choose.
P1-1 operating modes: A signal to trigger relay, time is up, the relay disconnect users, You can set relay time T, click K2 the hundred digital tube starts flashing, then press K3, the hundred digital change, click K2 ten digital tube starts flashing, then press K3, ten digit changes, click K2
bit digital tube starts flashing, then press K3, single-digit change, then click K2, digital pipe does not blink, then press the K3, shifting the decimalpoint, the decimal point in a bit indicates 0-999minutes in ten represents 0 to 99.9 seconds without the decimal point represents 0-999 seconds, good choice, bringing the time setting is completed.
P1-2 operating modes: A signal trigger, digital countdown begins, X seconds after, there lay open Y seconds, then close.
Users can set the relay time X,Y. P1-1 different time settings similar to the blue lights that set the relay time, blue light indicates setting relay off time.
P1-3 operating modes:Open X seconds, disconnect Y seconds, infinite loop. Users can set the relay time X,Y. Time setting similar to P1-2
