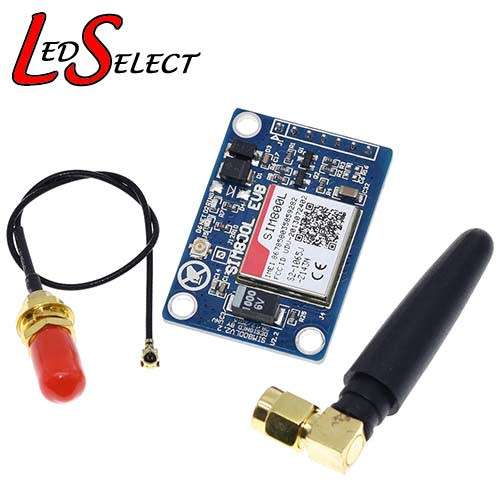

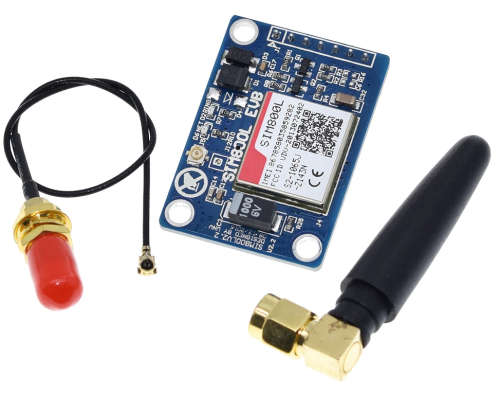

Controller Wireless GSM 5V Module for Arduino SIM800L **LOCAL STOCK**

Controller Wireless GSM 5V Module:

Category: 1500312645 / 1518312645 - Controller Relay Module

Specifications:

Supply Voltage Range: 3.4 - 4.4V
Bluetooth: Compliant with 3.0+EDR
FM: 76-109MHz worldwide bands with 50 KHz tuning step
Control via AT commands (3GPP TS 27.007, 27.005 And SIMCOM enhanced AT Commands)
Operation Temperature: -40 - 85
Dimensions: 15.8 x 17.8 x 2.4mm
Weight: 1.35g

Quad-band 850/900/1800/1900MHz
GPRS multi-slot class 12/10
GPRS mobile station class B
Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)

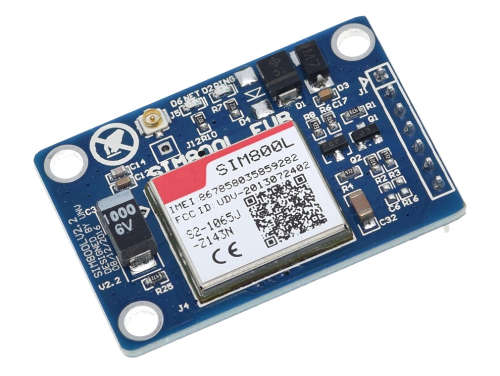

The chip of SIM800L basic features:
SIM800H is a complete Quad-band GSM/GPRS solution in a LGA type which can be embedded in the customer

Applications:
SIM800H support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power

Consumption:
With tiny size of 15.8*17.8*2.4 mm, it can fit into slim and compact demands of customer design.
Featuring Bluetooth, FM and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.

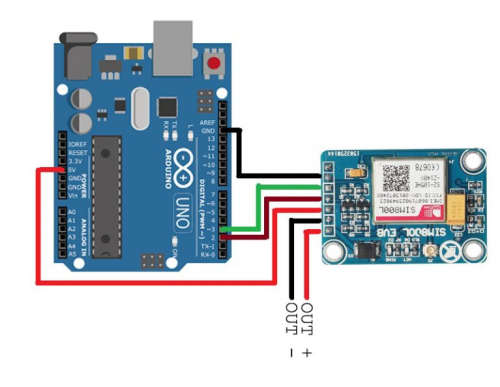

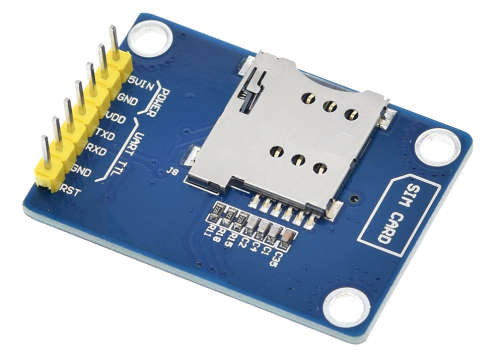

This  SIM800L module supports quad-band GSM/GPRS network, available for GPRS and SMS message data remote transmission. SIM800L is one of the most commonly used GSM module among hobbyists and Arduino community. It is not very easy for a beginner to properly understand and use Arduino with SIM800L. Therefore, this post summarizes how a beginner could interact with SIM800 using Arduino. On the back it has a simslot on which you insert a micro-Sim. When it is receiving enough power the power LED on board must light.
