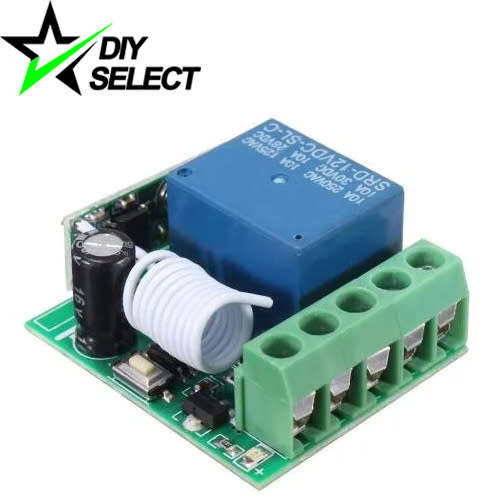

Controller Wireless RF Relay 12V 1 Channel 433Mhz Board Only (No Remote) **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Controller Relay 12V 1 Channel 433Mhz Board:
| Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |
Specifications:
Input Voltage: DC 12V
Output Current: 10A
Rated Load: 10A 250VAC / 10A 30VDC
RF Frequency: 433MHZ
RF Working Mode: Super heterodyne receiver
Receiver Sensitivity: >90dBm
Remote Control Distance: >100 meter (In open environment)
Decoding Way: MCU Software decoding
Can store the number of remote control: 50
Support remote control type: Fixed code, learning code
Multiple working Modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)

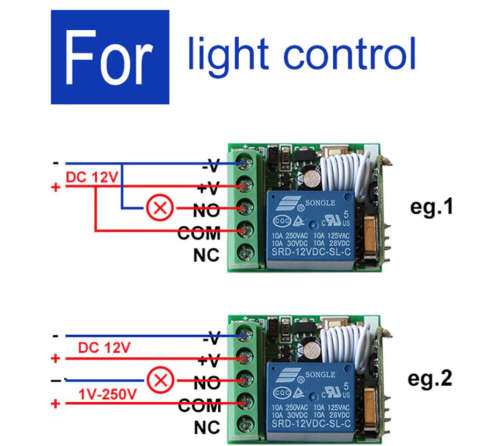

Wiring Method: Fixed wiring terminal
10A 30VDC / 10A 28VDC

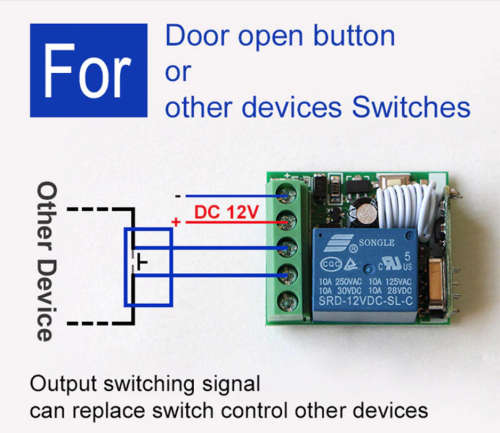

Output: Normally open, Common, Normally closed
Size: 35 x 30 x 16mm
Setting the Functions:
Removing The Code: (This process must be done each time before changing the mode)
Press the learning button 7 times, the indicator light will flash several times showing the learning code has been removed.
Learning the code: (Momentary)
Press the learning key on the receiver once to enter the momentary setting mode.
Wait for a moment, the LED will light up and enter learning state.
Press the remote button, LED indicator on the receiver board will flash then go off indicating successful learning.
Learning the code: (Toggle)
Press the learning key on the receiver twice to enter the toggle setting mode.
Wait for a moment, the LED will light up and enter learning state.
Press the remote button, LED indicator on the receiver board will flash then go off indicating successful learning.
Learning the code: (Latching)
Press the learning key on the receiver three times to enter the latching setting mode.
Wait for a moment, the LED will light up and enter learning state.
Press the remote button A, LED indicator on the receiver board will flash then light up again, press the remote button B, the receiver board will flash again and go off indicating successful learning.
Learning the code: (Time delay mode)
Press the learning key on the receiver four times to enter time delay mode for 5 seconds.
Press the learning key on the receiver five times to enter time delay mode for 10 seconds.
Press the learning key on the receiver six times to enter time delay mode for 15 seconds. Wait for a moment, the LED will light up and enter learning state. Press the remote button, LED indicator on the receiver board will flash then go off indicating successful learning.
