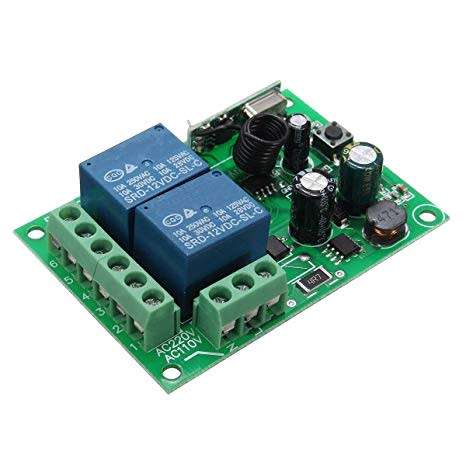

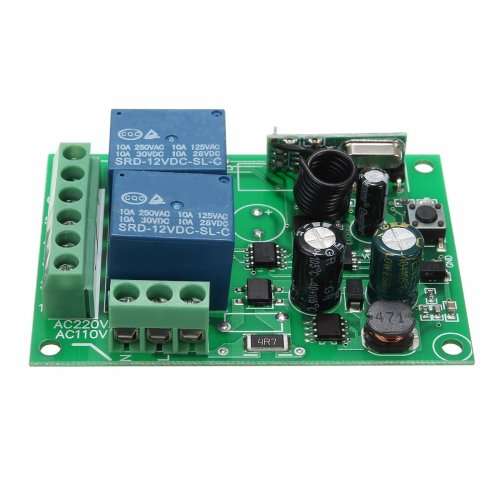

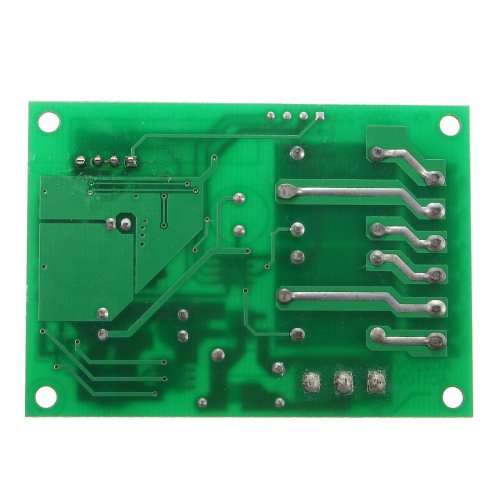

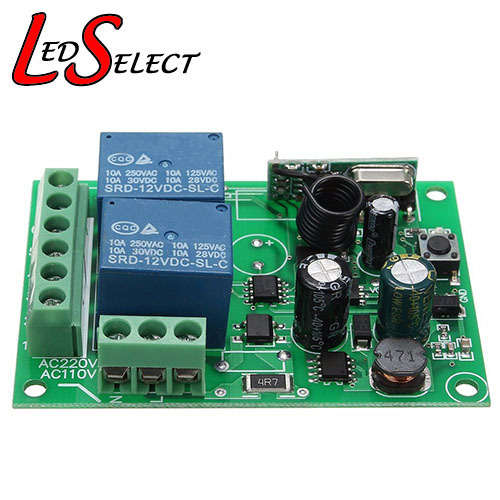

Controller Relay 12V 2 Channel 315Mhz Board:
Category Code: 1500312645 / 1520312645 - Controller Relay Module + Remote
Specifications:
Input Voltage: AC 85V - 220V
RF Frequency: 315MHZ
Rated Load: 10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
RF Working Mode: Super heterodyne receiver
Receiver Sensitivity: -107dBm
Remote Control Distance: >100 meter(In open environment)
Decoding Way: MCU Software decoding
Can store the number of remote control: 32
Support Remote Control Type: Fixed code, learning code
Multiple Working Modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)

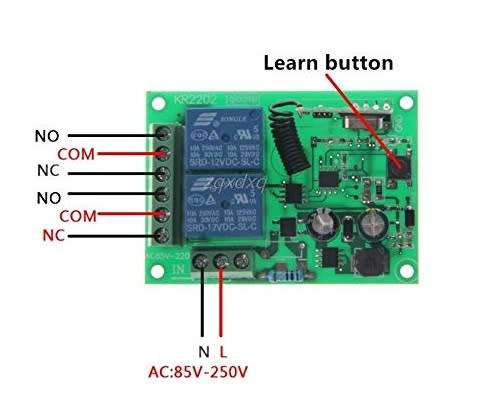

Wiring Method: Fixed wiring terminal
Size: 69 x 48 x 17mm
Working/output Way:
1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2. Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Reset new operating mode:
1. Jogging
Press the white learning button on the top of the control panel, LED lights, and then press any button on the remote control set to ‘Jog’ button, the control panel LED lights flashing, indicating that the setup is complete
2. Self-locking
Press the white learning button on the top of the control panel, LED lights, and then press any button on the remote control to set to ‘self-locking’ button, the control panel LED lights flashing,
3. Interlock
Press the white learning button on the control panel, the LED lights, and then press any button on the remote control set to ‘start’ button, the control panel LED lights flashing, press another button to set to ‘stop’ button LED Blinking means the setting is complete
Clear & Learn Code:
1. Clear function - After pressing the "KEY" button 8 times, the LED will go off and release all the remote control data in the memory.
When the LED flashes for 5 times, it indicates that the clear function is completed.
2, learning function - click the learning button "KEY", LED indicator light indicates that the microprocessor to enter the learning state of the code,
press the matching wireless remote control button, LED light blinks 3 times then turn off means Code success.
3. LED flashes to determine the selected function.
* Flashing 1 time - Jogging function
* Flashing 2 times - Self-locking function
