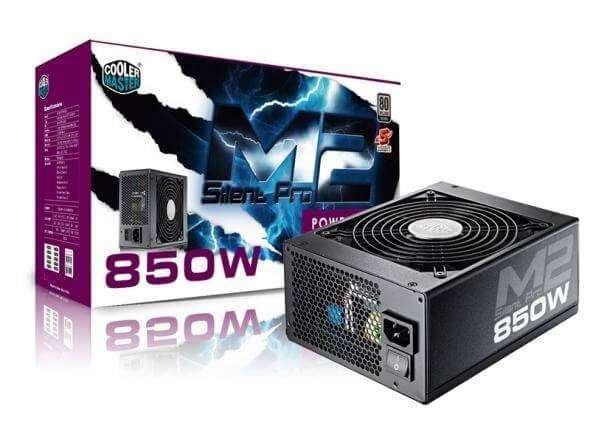

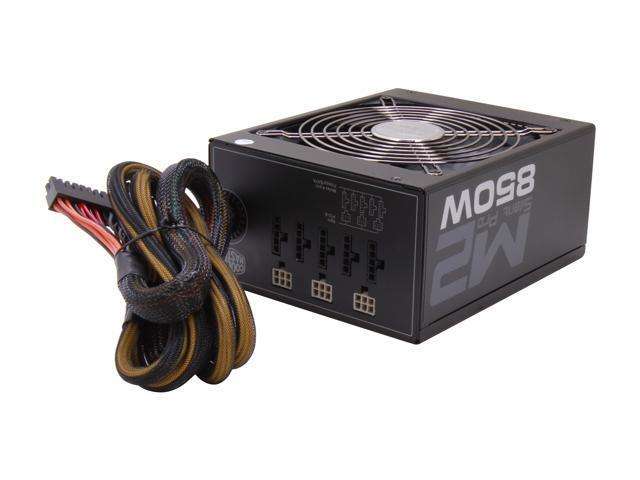

Model: RS-850-SPM2
Type: Intel Form Factor ATX 12V V2.3
Dimension: (W / H / D) 150 x 180 x 86mm
5.9 x 7.1 x 3.4 inch
Input Voltage: 90-264Vac (Auto Range)
Input Current: 11 5.5A
Input Frequency Range: 47 - 63Hz
PFC: Active PFC (>0.9)
Power Good Signal: 100-500ms
Hold Up Time: >17ms
Efficiency: 88% Typically
MTBF: 100,000 Hours
Protection: OVP/UVP/OCP/OPP/OTP/SCP
Output Capacity: 850W
Operation Temperature: 0~40C (Nominal Input Voltage)
Regulatory: TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC
Fan: 135mm Hydraulic Dynamic Bearings
Certifications: 80 Plus Silver
Connector: M/B 24 Pin Connector x 1
CPU 8 Pin x 2
PCI-E 8 Pin x 3
PCI-E 6+2 Pin x 2
SATA x 4
4 Pin Peripheral x 3
