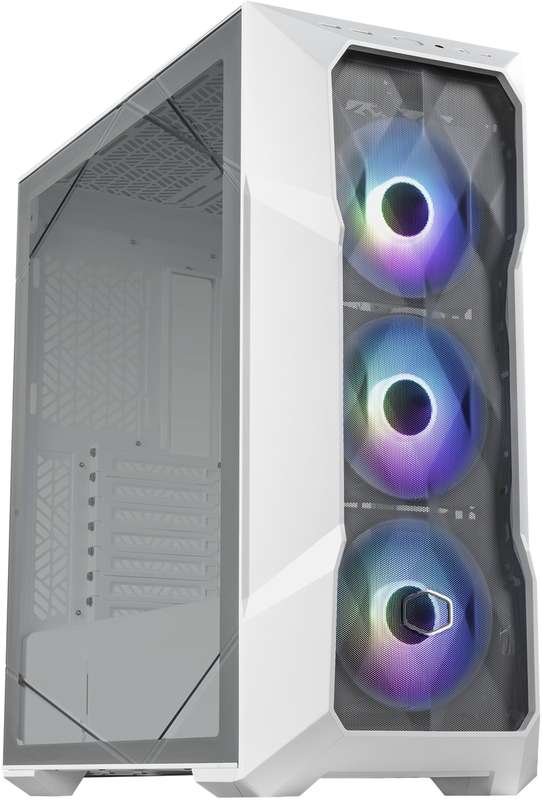

Cooler Master MasterBox TD500 V2 ATX Mesh White case, Diamond Cut design, 3x 120mm RGB fans, Tempered Glass left side panel, 7 Expansion slots, 2x 3.5" Drive bays, 3x 2.5" Drive bays, I/O panel USB Ports - 2x USB 3.2 Gen 1 / 1x USB 3.2 Gen 2 Type-C, 1x audio jack, 1x ARGB fan Hub, 200mm clearance - PSU, 410mm clearance - Graphics, 165mm clearance - CPU CoolerOverview:MasterBox TD500 Mesh V2 - Exquisitely RuthlessMasterBox TD500 Mesh V2 s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.Polygonal FineMesh Front PanelThree CF120 ARGB Fans IncludedUSB 3.2 Gen 2 Type C SupportTool-Free Crystalline TG Side PanelPSU Shroud With Removable CoverARGB Controller IncludedRemovable Top PanelRemovable HDD cageFeatures:FineMesh Performance Front PanelPolygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.Available in both Black & White colorationsMasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!Three CF120 ARGB Fans IncludedPre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.USB 3.2 Gen 2 Type C SupportUSB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.ARGB/FAN HUB IncludedThe included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.Removable Top PanelThe top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.Tool-Free Crystalline TG Side PanelFeaturing a crystalline tempered glass side panel, completely toolless for quick access to the internals.Versatile Cooling OptionsSupport for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.PSU Shroud With Removable CoverMasterBox TD500 Mesh V2s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.Hardware CompatibilityMasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".Specifications:Model Number TD500V2-KGNN-S00, TD500V2-WGNN-S00Exterior Color Black, WhiteMaterials - Exterior Steel, Mesh, PlasticMaterials - Left Side Panel Tempered GlassDimensions (L x W x H) 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)Volume 50L (excl. Protrusions)Motherboard Support Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)Expansion Slots 73.5" Drive Bays 22.5" Drive Bays 3I/O Panel - USB Ports 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type CI/O Panel - Audio In / Out 1x Audio JackI/O Panel - Other 1x ARGB Fan HubPre-installed Fans - Front 3x 120mm CF120 ARGBFan Support - Top 3x 120mm, 2x 140mmFan Support - Front 3x 120mm, 2x 140mmFan Support - Rear 1x 120mmRadiator Support - Top 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)Radiator Support - Front 120mm, 140mm, 240mm, 280mm, 360mmRadiator Support - Rear 120mmClearance - CPU Cooler 165mm/6.49"Clearance - PSU 200mm, (Recommended up to 170mm)Clearance - GFX 410mm / 16.14"Cable Routing - Behind Motherboard Tray 19mm / 0.74"Dust Filters Front, Top, BottomPower Supply Support Bottom Mount, ATXSeries MasterBox SeriesSize Mid Tower
