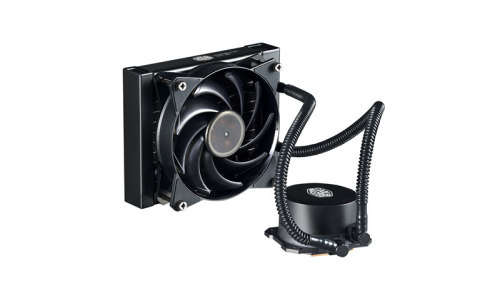

Cooler Master Masterliquid Lite 120 AIO Liquid Cooler

Cooler Master Masterliquid Lite 120mm All in One

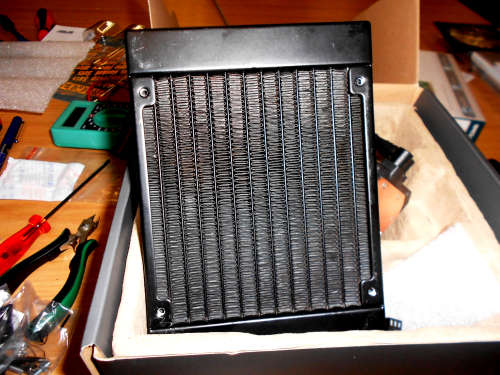

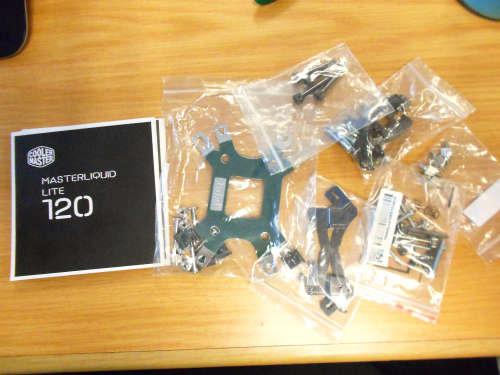

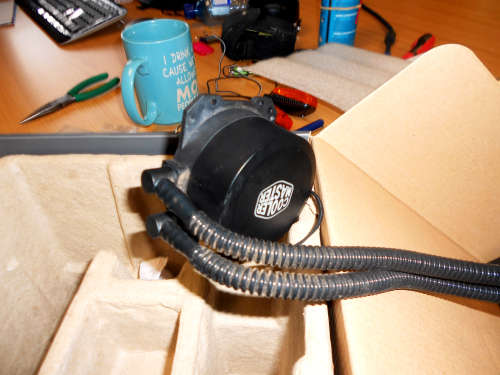

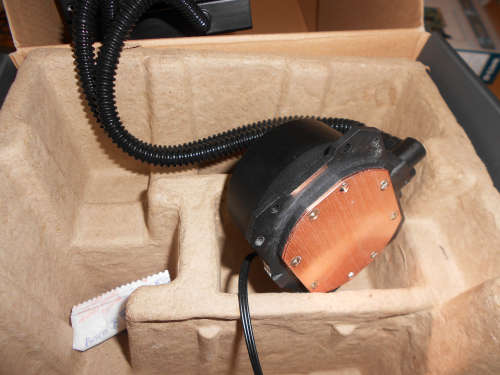

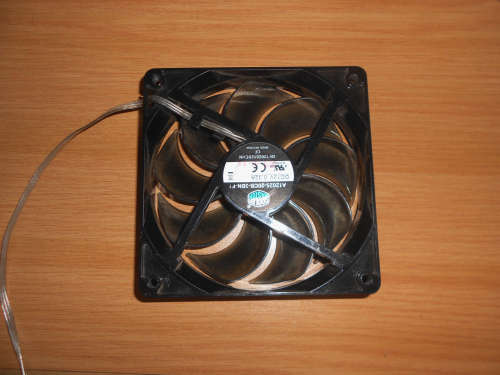

Note: See pics. I have touched the fins on the radiator but not enough to affect cooling. All parts used cleaned and returned to original packaging.

Product NameMasterLiquid Lite 120
Model NumberMLW-D12M-A20PW-R1
CPU SocketIntel® LGA 2066 / 2011-v3 / 2011 / 1366 / 1151 / 1150 / 1156 / 1155 / 775 socket

AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 socket
Main SystemDimensions62 x 62 x 36.4 mm (2.4 x 2.4 x 1.4")
Power Connector4-Pin
WaterblockDimensions80.3 x 76 x 42.2mm (3.2 x 3.0 x 1.7")
PumpMTTF70,000 hours
Noise Level< 8 dBA
Connector3-Pin
Rated Voltage12 VDC
Load Current0.3 A
Power Consumption3.96 W
RadiatorDimensions157 x 119.6 x 27mm (6.2 x 4.7 x 1.1")
MaterialAluminum
FanDimension120 x 120 x 25 mm (4.7 x 4.7 x 1")
Speed650 ~ 2000 RPM (PWM) ± 10%
Air Flow66.7 CFM ± 10%
Air Pressure2.34 mmH2O ± 10%
MTTF160,000 hours
Noise Level6-30 dBA
Connector4-Pin (PWM)
Rated Voltage12 VDC
EAN Code4719512055847
UPC Code884102030918
