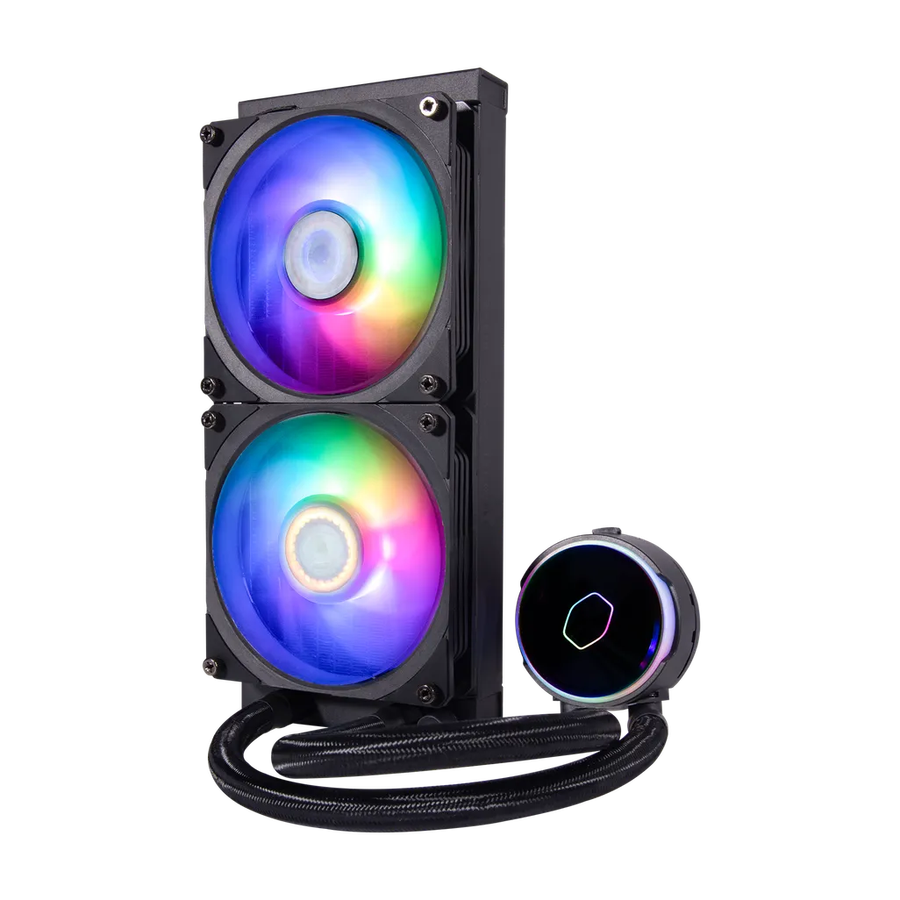

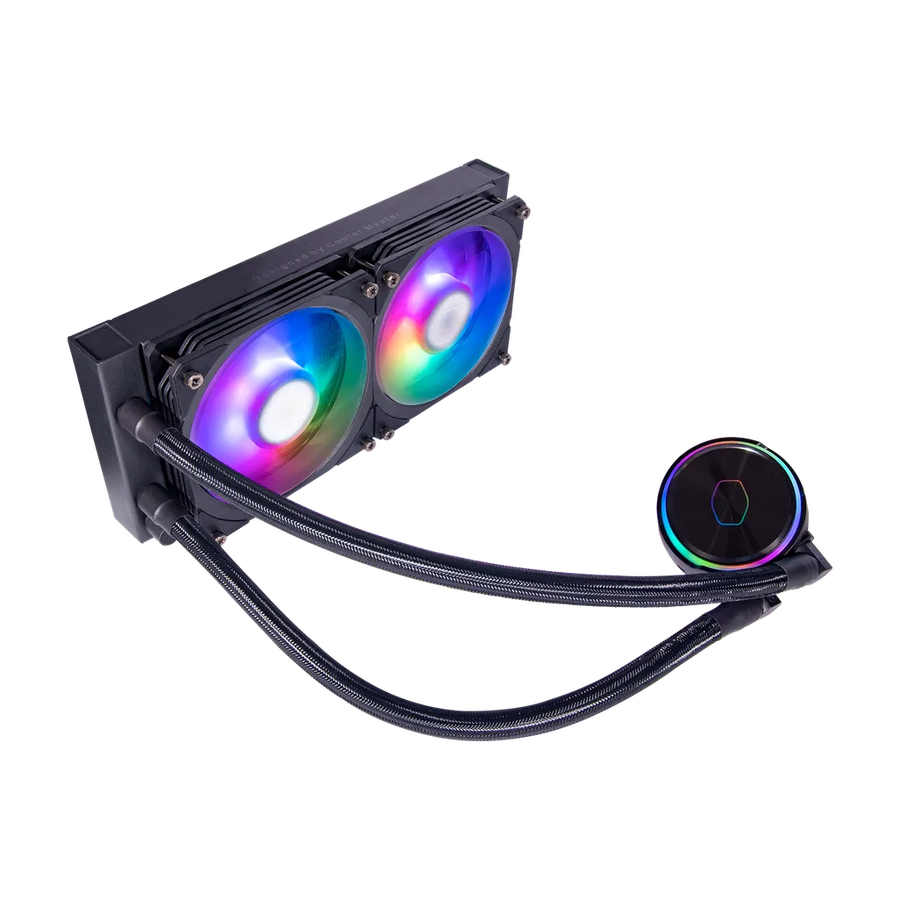

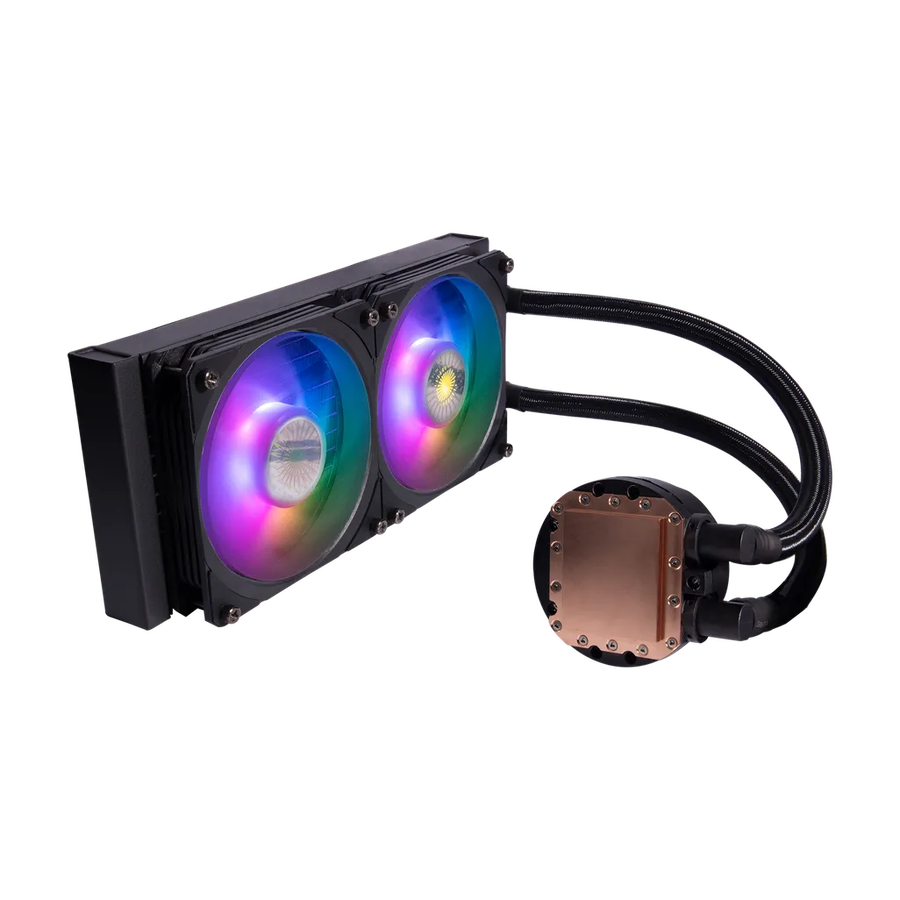

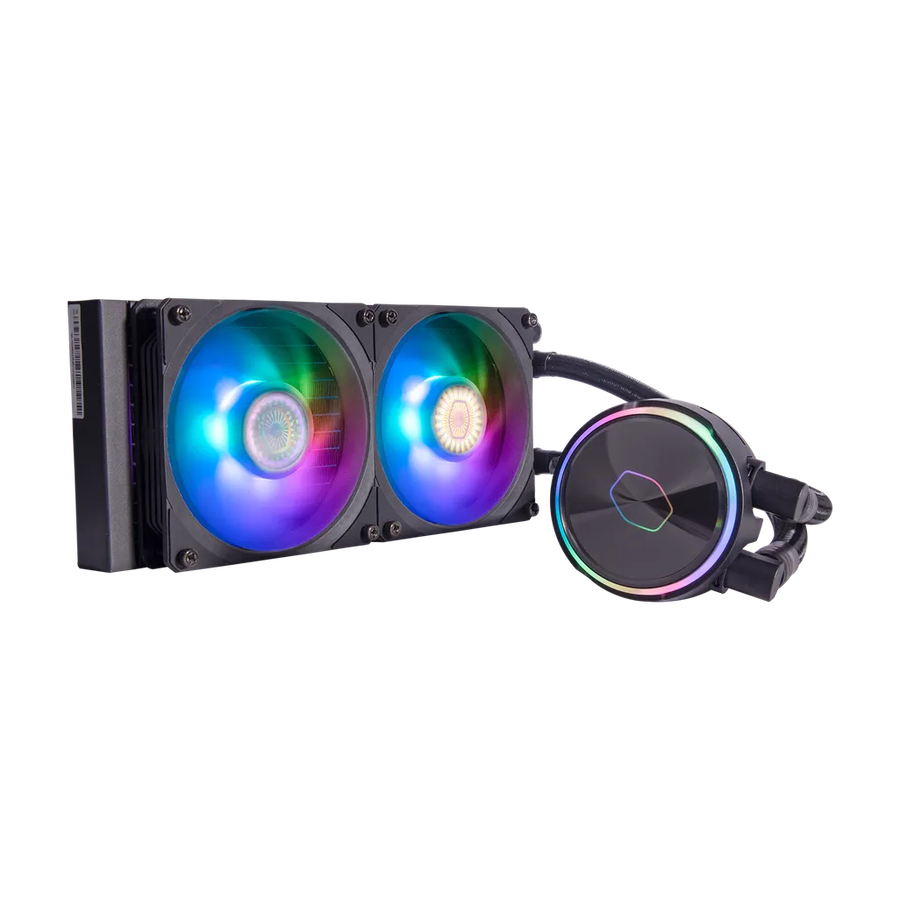

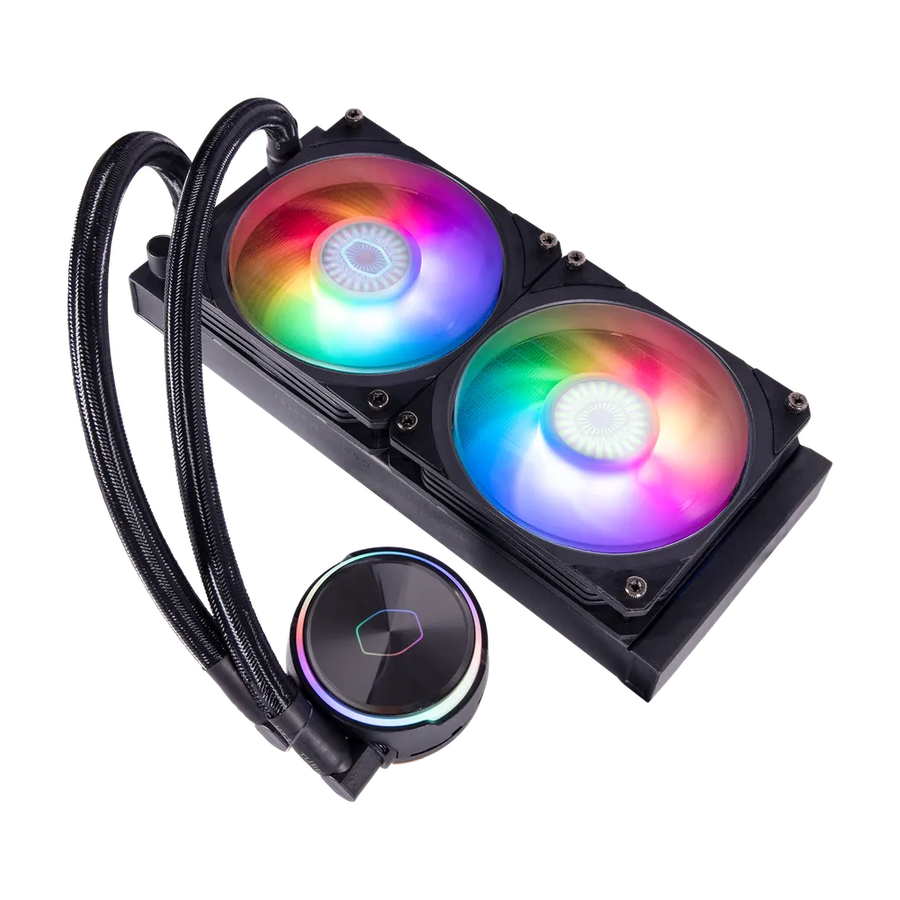

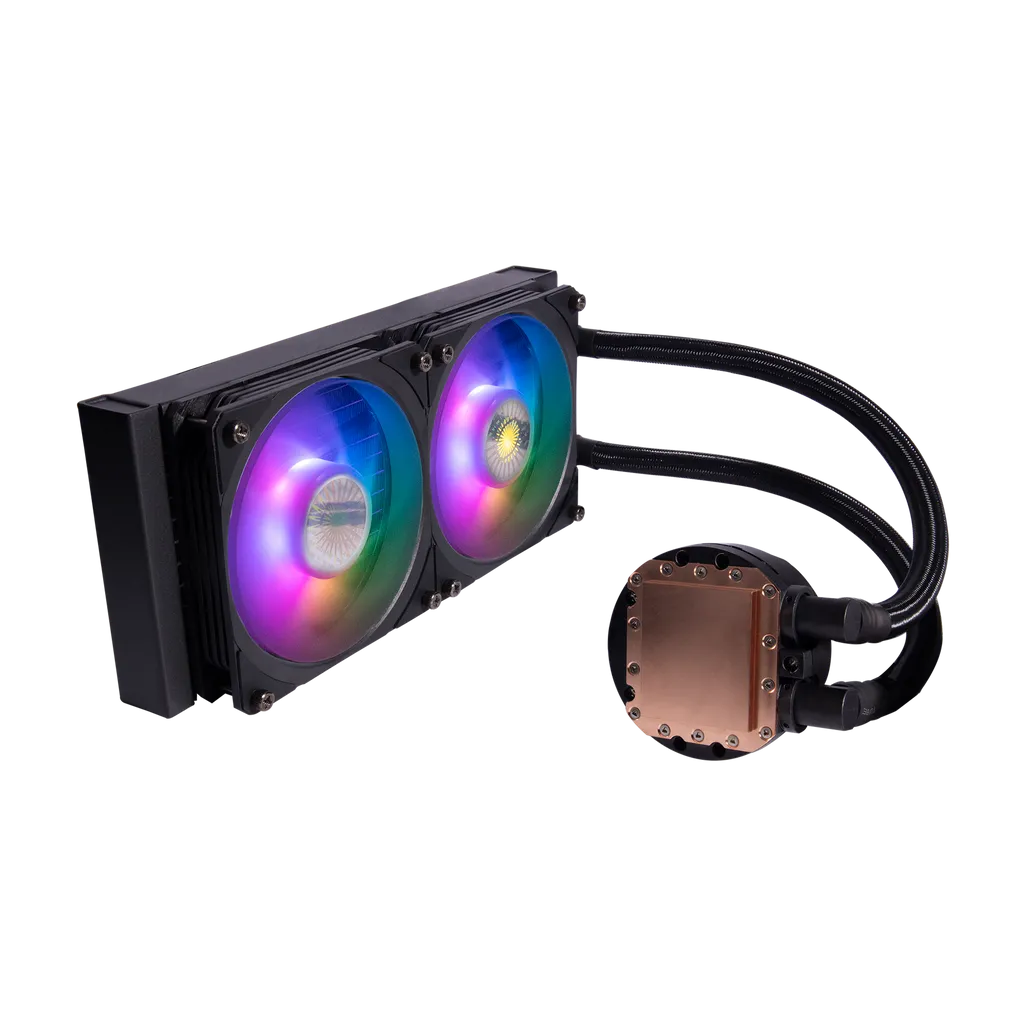

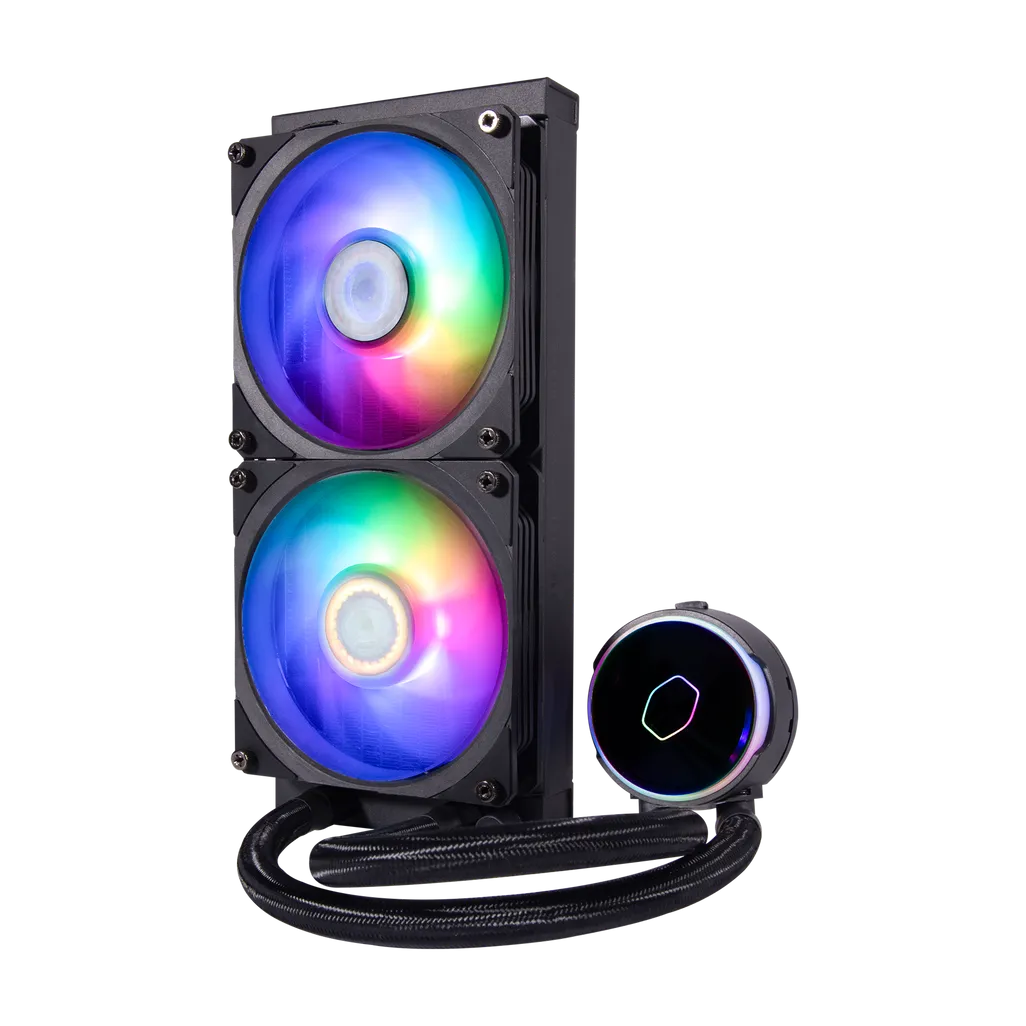

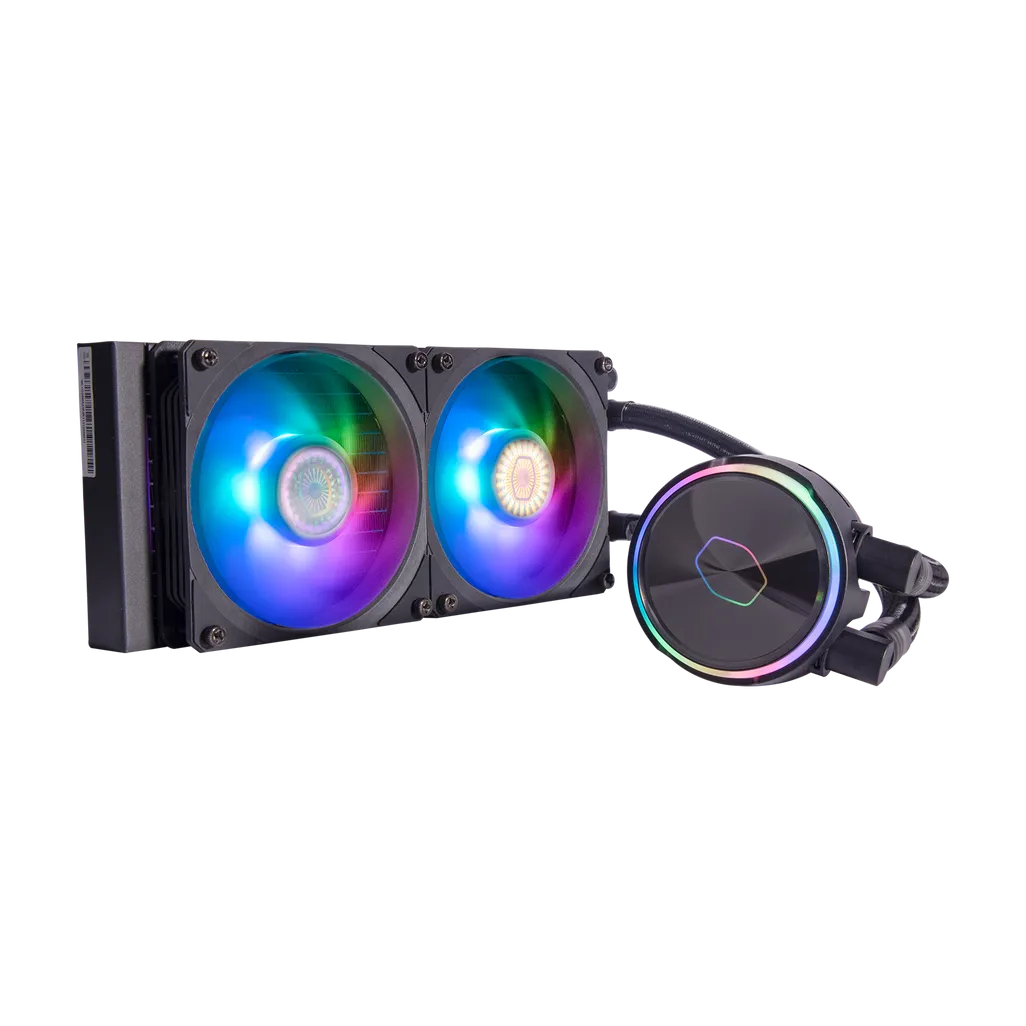

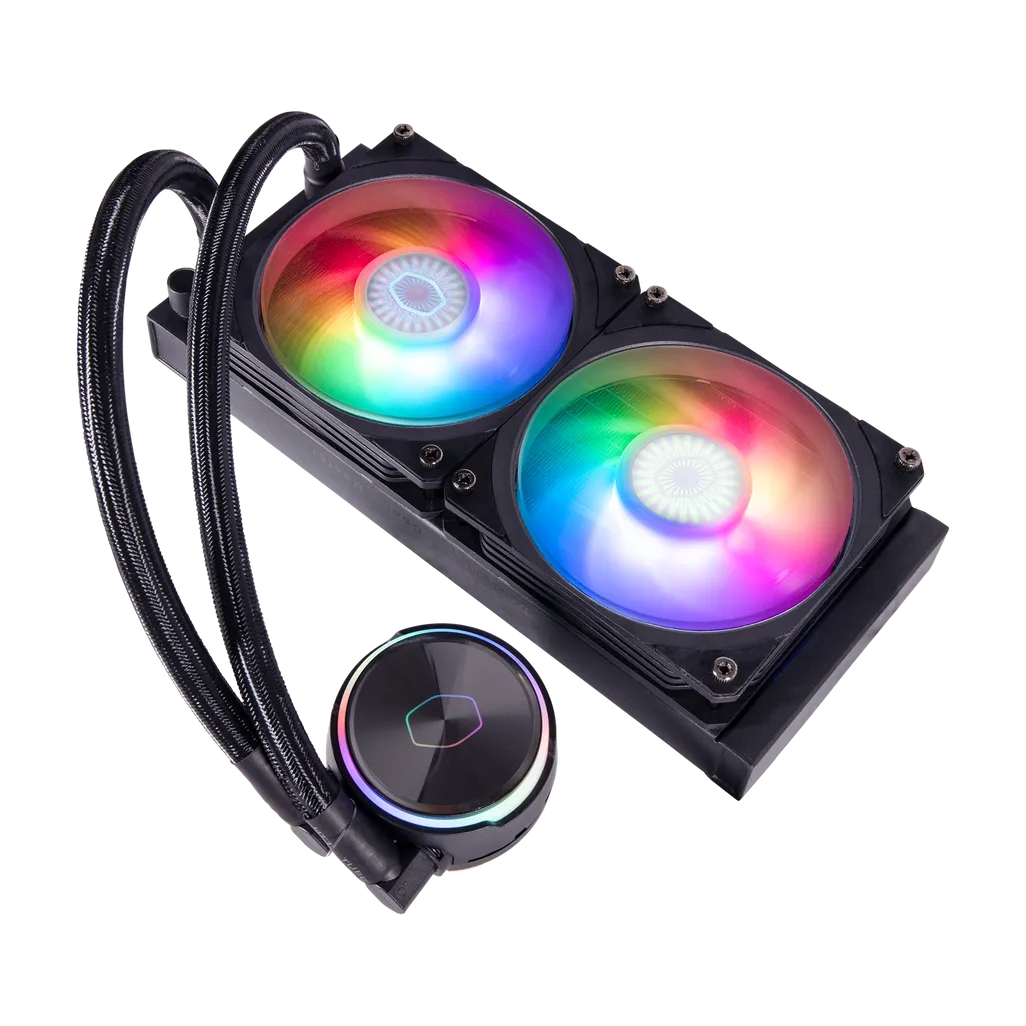

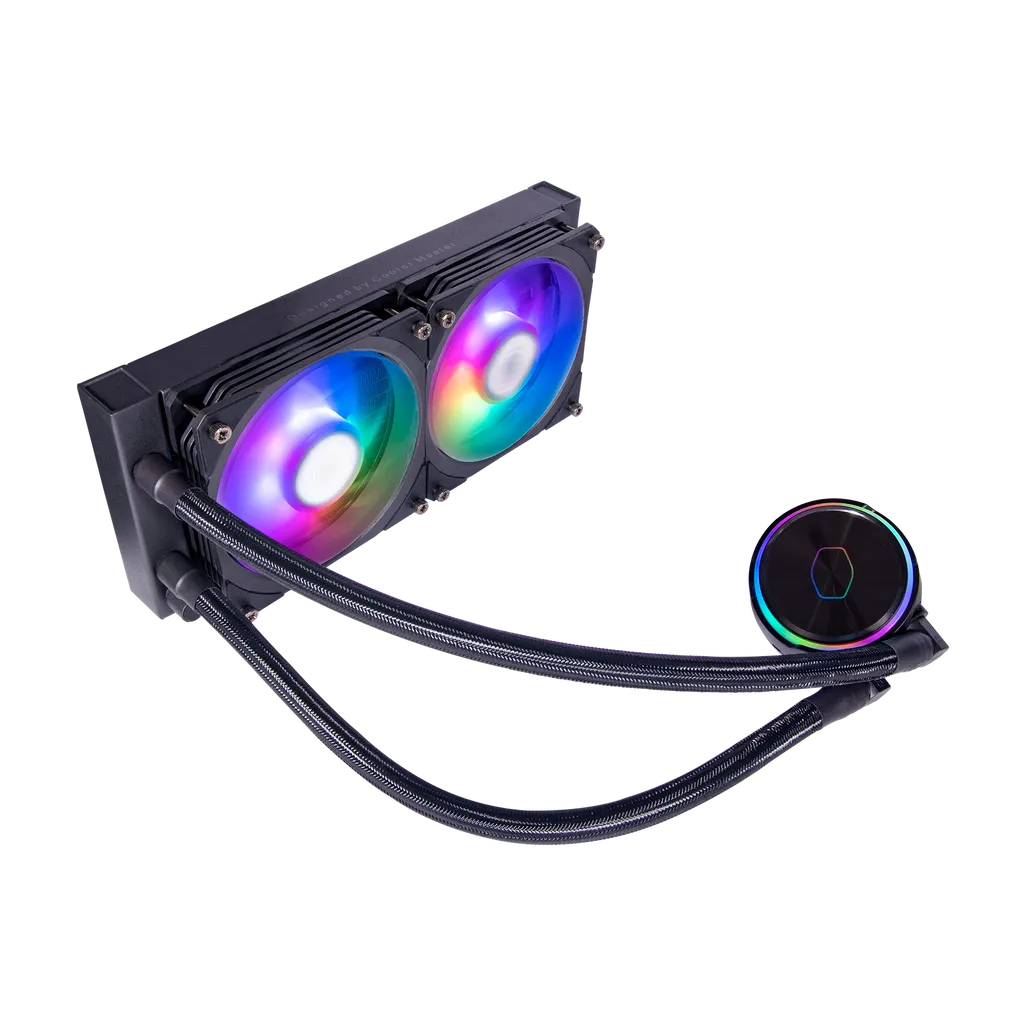

Cooler Master MasterLiquid PL240 Flux
The Cooler Master MasterLiquid PL240 Flux is a high-performance liquid cooling kit designed to provide efficient thermal management for modern processors. Featuring a 12 cm fan with a maximum rotational speed of 2300 RPM, this cooling solution ensures optimal airflow and pressure while maintaining a low noise level of 32 dB at high speed. Its sleek black design complements any system build, combining aesthetics with functionality.
Specifications
Design
| Product colour | Black |
|---|
| Illumination colour | Multi |
|---|
| Illumination LED | Yes |
|---|
| Fan connector | 4-pin |
|---|
| Radiator material | Aluminum |
|---|
Weight & Dimensions
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
|---|
| Radiator width | 277 mm |
|---|
| Radiator depth | 119.6 mm |
|---|
| Radiator height | 27.2 mm |
|---|
| Weight | 1430 g |
|---|
| Package width | 285 mm |
|---|
| Package depth | 348 mm |
|---|
| Package height | 147 mm |
|---|
| Package weight | 2578 g |
|---|
| Pump width | 89 mm |
|---|
| Pump depth | 75 mm |
|---|
| Pump height | 40 mm |
|---|
Performance
| Fan diameter | 120 mm |
|---|
| Pulse-width modulation (PWM) support | Yes |
|---|
| Pump noise level | 15 dB |
|---|
| Pump connector | 4-pin |
|---|
| Type | Liquid cooling kit |
|---|
| Suitable location | Computer case, Processor |
|---|
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket TR4 |
|---|
| Rotational speed (max) | 2300 RPM |
|---|
| Noise level (high speed) | 32 dB |
|---|
| Maximum airflow | 72.37 cfm |
|---|
| Maximum air pressure | 2.96 mmH2O |
|---|
| Pump's mean time to failure (MTTF) | 210000 hours |
|---|
Power
| Rated current | 0.15 A |
|---|
| Safety current | 0.3 A |
|---|
| Pump voltage | 12 V |
|---|
| Fan voltage | 12 V |
|---|
| Pump power consumption | 6 W |
|---|
Logistics Data
| Master (outer) case length | 585 mm |
|---|
| Master (outer) case width | 460 mm |
|---|
| Master (outer) case height | 372 mm |
|---|
| Products per master (outer) case | 6 |
|---|
| Harmonized System (HS) code | 84733080 |
|---|
Other Features
The Cooler Master MasterLiquid PL240 Flux is engineered to deliver reliable and consistent cooling performance for a wide range of processor sockets, including Intel and AMD platforms. Its aluminum radiator ensures efficient heat dissipation, while the multi-color LED illumination adds a customizable aesthetic element to your system. The inclusion of PWM support allows for precise fan speed control, balancing cooling efficiency with acoustic comfort.
With a pump designed for longevity, boasting a mean time to failure (MTTF) of 210,000 hours, this liquid cooling kit offers dependable operation for extended periods. The compact pump dimensions facilitate easy installation without compromising performance. Additionally, the fan's optimized airflow and air pressure specifications contribute to maintaining optimal system temperatures under various workloads.
Designed with both performance and user convenience in mind, the MasterLiquid PL240 Flux is compatible with most standard computer cases and processor configurations. Its 4-pin connectors for both the fan and pump enable seamless integration with motherboard fan headers, supporting automatic speed adjustments based on system temperature.
In summary, the Cooler Master MasterLiquid PL240 Flux represents a professional-grade liquid cooling solution that combines quality materials, advanced engineering, and versatile compatibility to meet the demands of modern computing environments.
