Cooler Master MWE Bronze V2 650W (MPE-6501-ACAAB)

The Cooler Master MWE Bronze V2 650W (MPE-6501-ACAAB) is a reliable, non-modular ATX power supply. It features an 80 PLUS Bronze certification, a quiet 120mm Hydraulic Bearing (HDB) fan, and DC-to-DC circuit design to ensure stable and efficient power delivery for standard gaming or workstation desktop builds.

Core Specifications

• Model: MWE Bronze 650 - V2
• Part Number: MPE-6501-ACAAB (varies slightly by region e.g., -EU, -UK)
• Total Wattage: 650W
• Efficiency Rating: 80 PLUS Bronze (typically 85% efficiency)
• Form Factor: ATX 12V V2.52
• Power Factor Correction (PFC): Active PFC
• Dimensions (L x W x H): 140 × 150 × 86 mm [Electrical Specifications

• Input Voltage: 100 - 240V
• Input Current: 10-5A
• Input Frequency: 50 - 60Hz
• Protections: OVP (Over Voltage), OPP (Over Power), SCP (Short Circuit), UVP (Under Voltage), OTP (Over Temperature)
• Hold Up Time: >14ms at 100% full load [Cooling and Acoustics

• Fan Size: 120mm
• Fan Bearing: Hydraulic Bearing (HDB)
• Max Fan Speed: 2400 RPM
• Noise Level: Ranges from ~16.5 dBA at 20% load up to ~42.5 dBA at full load [Cabling and Connectors

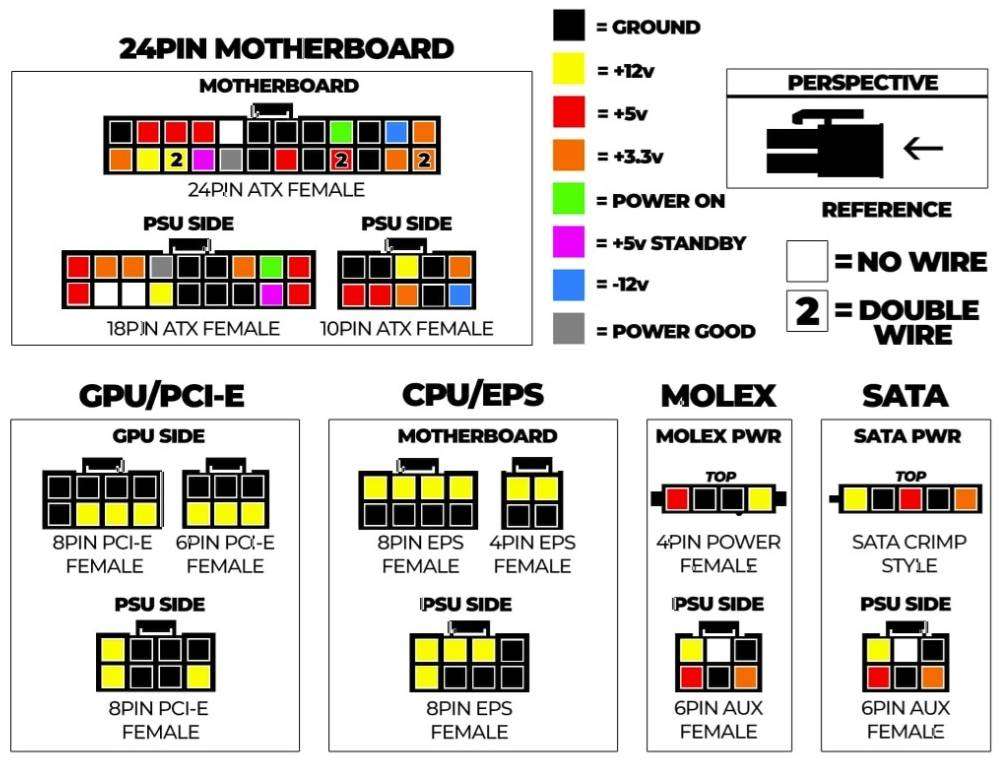

• ATX 24-Pin: 1
• EPS 4+4 Pin: 1
• EPS 8-Pin: 1
• PCI-e 6+2 Pin: 4
• SATA: 6
• Peripheral 4-Pin: 3

FULLY TESTED UNDER LOAD - PASSED
