Product details
Cooler Master V1000 80 Plus Fully Modular Power Supply Unit - Black
PSU IS IN PERFECT WORKING CONDITION
COMES IN ITS ORIGINAL PACKAGING. USED FOR 6 MONTHS
NO WARRANTY OR GUARANTEE.
PAYMENT STRICTLY WITHIN 24 HOURS PLEASE
Description
CoolerMaster V1000 80 Plus Fully Modular Power Supply Unit - Black
Only use the cables you need, no unnecessary cable mess. Thanks to our modular flat ribbon design, routing and hiding cables behind the mainboard tray or HDD cage is a breeze. Building a clean and tidy system with excellent airflow has never been this easy and convenient.
Features:
- Fully Modular Cable System

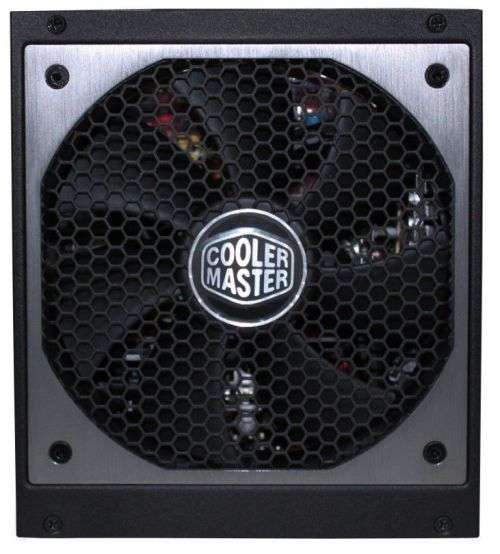

- Ultra-Silent Long Life: 135mm FDB Fan
Instead of a conventional 120mm fan, our V series uses a larger 135mm fan, which allows it to spin slower while moving the same amount of air as a 120mm fan. The larger size, the FDB bearing and the fine-tuned fan speed profile, make the V-series one of the quietest PSUs on the market.
The most important Voltage:
The 12V rail is the most important part of a modern power supply. Both the CPU and graphics cards, the two most important and power hungry components in any computer, are powered by the 12V line. Voltage fluctuations can cause anything from high pitch noises, to lower CPU and VGA overclocks, system instability or even damage components.
FDB Advantages:
Thanks to an elaborate design with microscopic tolerances and a detailed channel design, the bearing core and inner case are constantly separated by a thin film of oil, and the two metal parts never actually touch. The Channels on the bearing core act as a pump constantly looping it back to the centre and giving it no chance to leak, the results in extremely quiet operation and an extremely long life.

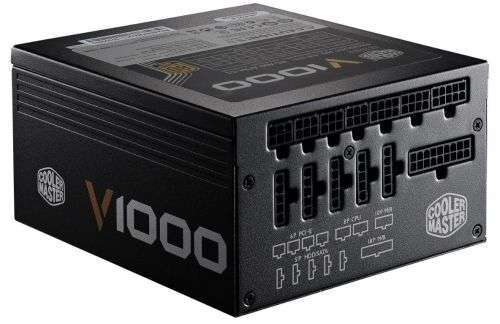

Connector:
- M/B 20+4 Pin Connector x 1
- CPU 4+4 Pin x 2
- PCI-e 6+2 Pin x 8
- SATA x 9
- 4 Pin Peripheral x 4
- 4 Pin Floppy x 1
Specifications:
- Model: RS-A00-AFBA-G1
- Type: Intel Form Factor ATX 12V V2.31
- Dimension: 150mm x 170mm x 86mm (5.9 x 6.7 x 3.4 inch)
- Input Voltage: 90-264Vac (Auto Range)
- Input Current: 12 - 6A
- Input Frequency Range: 60 - 50Hz
- PFC: Active PFC (greater than 0.9)
- Power Good Signal: 100-500ms
- Hold Up Time: greater than 17ms
- Efficiency: 90% Typically
- MTBF: greater than 100,000 Hours
- Protection: OVP/UVP/OPP/OTP/SCP
- Output Capacity: 1000W
- Operation Temperature: 0 to 40°C
- Regulatory: CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC
- Fan: Silent FDB 135mm
- Certifications: 80 plus Gold
What's in the box
V1000W ATX PSU x 1
