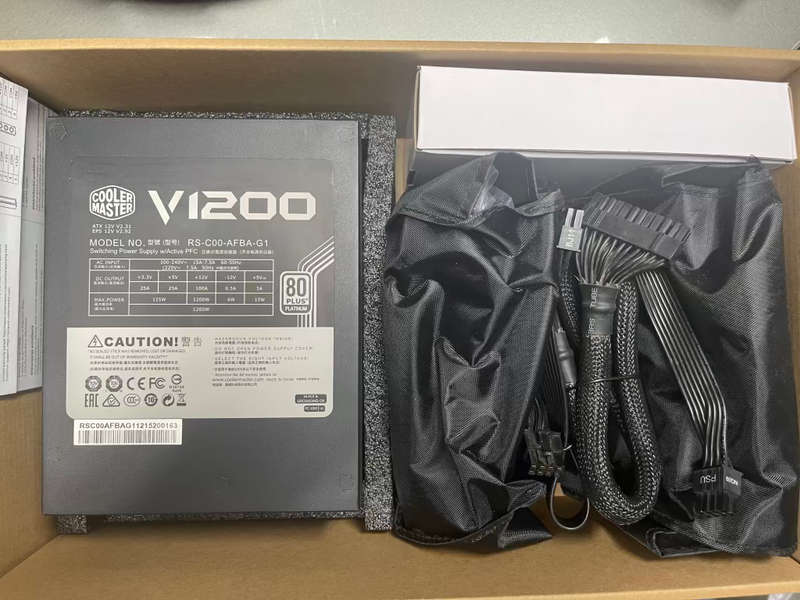

All Cables in Box that came from factory
Specifications
Modular Fully Modular
Model RSC00-AFBAG1-XX
PFC Active PFC (>0.9 Typical)
ATX Version Intel Form Factor ATX 12V V2.31
Dimensions (L x W x H) 190 x 150 x 86 mm
Operation Voltage 100-240Vac
Input Current 15-7.5A
Input Frequency 50-60Hz
Power Good Signal 100 - 500 ms
Hold Up Time >17ms
Efficiency 93% Typically
MTBF >100,000 Hours
Protections OVP, UVP, OPP, OTP, OCP, SCP
Output Capacity 1200W
Operating Temperature 0-40°C
Regulatory CE, TUV, TUV-SUDNRTL, FCC, EAC, CCC, BSMI, RCM, KC
Fan Size Silent FDB 135mm
Certification 80 Plus Platinum
MB 20+4 Pin Connectors 1
CPU 12V 4+4 Pin Connectors 2
PCI-e 6+2 Pin Connectors 12
SATA Connectors 12
Peripheral 4 Pin Connectors 9
FDD Cable 4 Pin Connectors 1

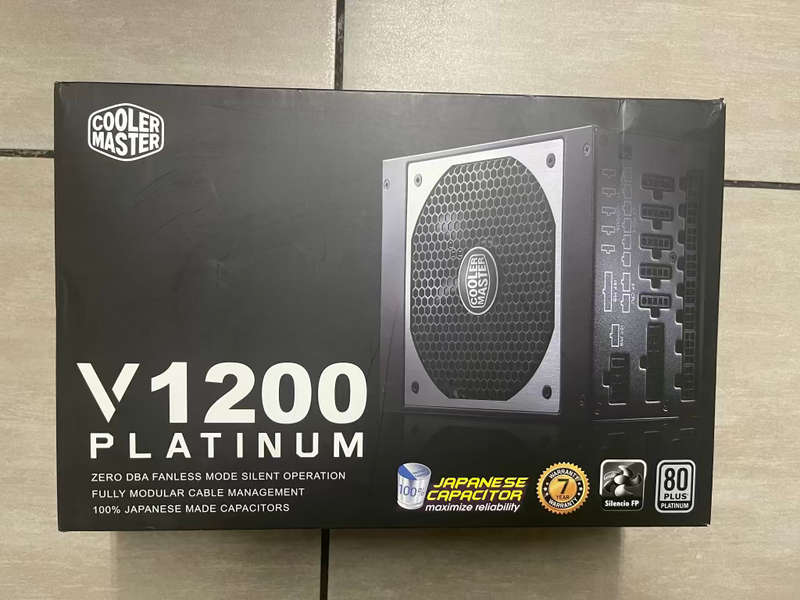

Product Name V1200 Platinum
