6-PIN PCI-E X 2 , SATA X 3 , 4-PIN PERIPHERAL X 6 , 4-PIN FLOPPY X 2 , CPU 12V X 1 & 20+4-PIN MB CONNECTORS
OVP , OPP & SHORT CIRCUIT PROTECTION

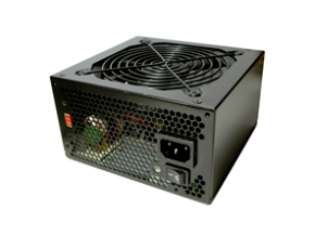

Model | RS-550-PCAR |
Type | ATX form factor 12V V2.31 |
Dimension (W / H / D) | Standard ATX PS2 150 x 140 x 86 mm |
Input Voltage | 180~264V |
Input Current | 6.3A@230Vac |
Input Frequency Range | 47~63Hz |
PFC | Passive PFC |
Power Good Signal | 100-500ms |
Hold Up Time | >17ms |
Efficiency | >70% typically |
MTBF | >100,000 hrs |
Protection | OVP / OPP / Short Circuit Protection |
Output Capacity | 550W |
Operation Temperature | 5~50℃ |
Safety | Nemko / TUV / CE / BSMI / FCC / CCC |
Fan | Sleeve bearing 120mm fan |
Connector | M/B 20+4 Pin x 1 |
