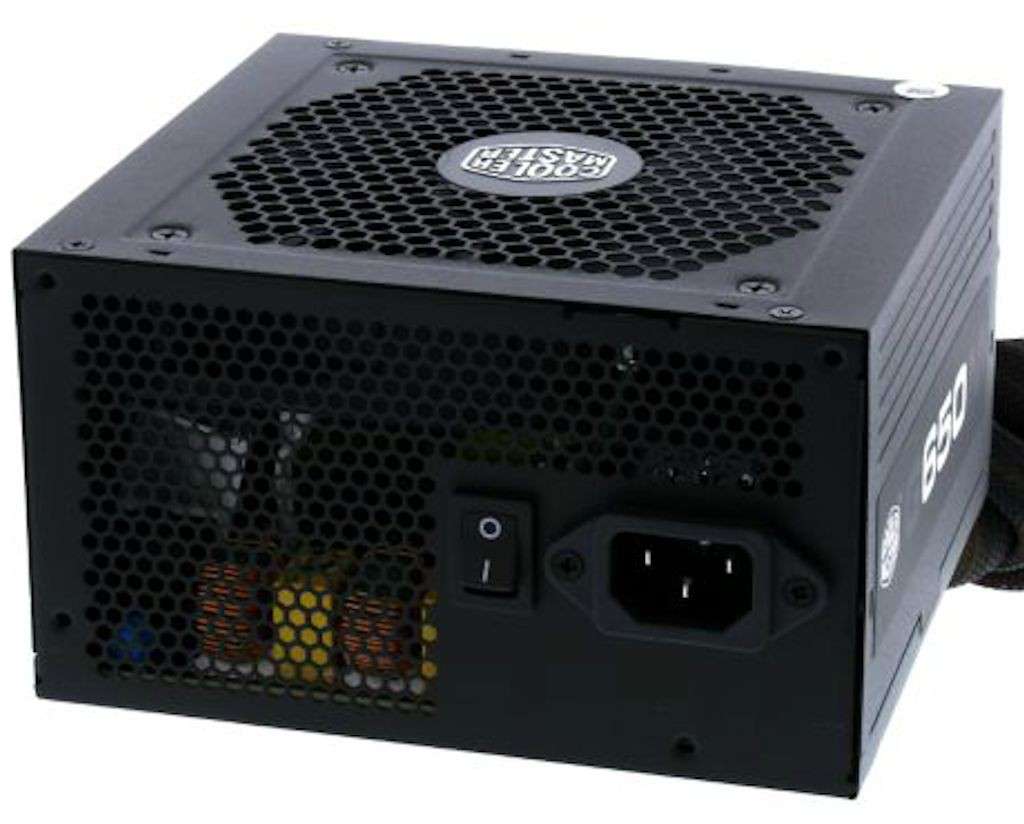

CoolerMaster Power Supply RS650-AMAAB1-US G650M 650W ATX 12V - CoolerMaster

Features:

• Unique 3D circuit design offers high efficiency and improves the heat dissipation. It reduces the unnecessary cables which results in much lower crosstalk, signal noise and improves airflow
• Powerful Single +12V rail for superior load balancing and VGA compatibility. All series supports VGA up to Nvidia Titan
• Modular cable designs for better cable management
• Custom DC-DC module design offers higher efficiency and voltage stability
• Haswell C6/C7 support & zero load operation
• 80 PLUS Bronze certified: up to 88% efficiency @ typical load

Specifications:

General Information
Product Name: CoolerMaster Power Supply RS650-AMAAB1-US G650M 650W ATX 12V
Product Model: RS650-AMAAB1-US
Product Type: ATX12V & EPS12V Power Supply

Technical Information
Efficiency: 85%
Number of Fans: 1
Modular: Yes

Power Description
Input Voltage: 120 V AC, 230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC @ 22 A, 5 V DC @ 22 A, 12 V DC @ 52 A, -12 V DC @ 300 mA, 5 V DC @ 2.50 A
Output Power: 650 W

Physical Characteristics
Form Factor: Internal
Height: 3.4"
Width: 5.9"
Depth: 5.5"

Miscellaneous
Green Compliant: Yes
Green Compliance Certificate/Authority: TÜV, 80 Plus Bronze
