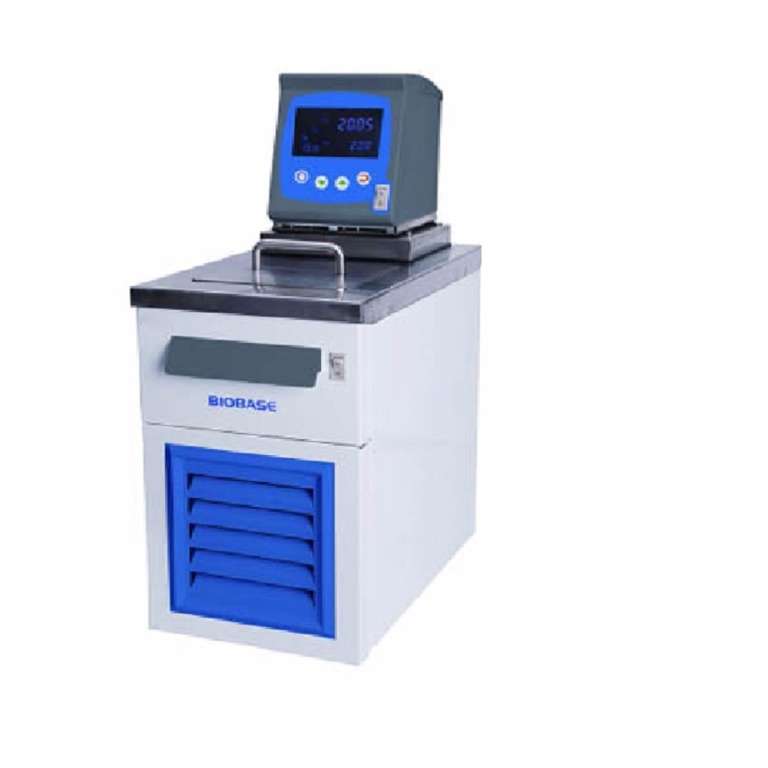

Cooling Recirculating Chiller

Laboratory Cooling-water bath, Water Bath Recirculating Chiller

Features

• Cooling system adopt TECUMSEH compressor in order to ensure cooling efficiency, and reduce noise.
• PID temperature controlling technology is adopted. Cooling method is not the traditional stat-stop type, EEV technology improve the stability.
• Over-temperature protection and auto-alarm function is used in refrigeration control system to avoid damage temperature medium caused by abnormal liquid temperature value.
• Water level observation window and automatic water level detection device, automatic alarm when low liquid level.
• Water current detection device is adopted. When external cycle closed or blocked, internal cycle will be switched automatically.
• High performance circulating water pump guarantee the long time continuous running, and good sealing avoid leakage. The pressure of pump is 0-1.5 par, adjustment is available by rotary knob. Pressure value is displayed.
• Color LCD screen display more running data and dynamic identifier. Easy to monitorTechnical Parameters

• Model	BK1200
  Temperature control range	5 °C ~ 40°C
  Temperature control	PID
  Temperature stability	±0.3°C
  Temperature sensor	PT100
  Display resolution	0.1°C
  Pump flow rate	20L/min
  Cooling capacity	1.2Kw
  Refrigerant	R134a
  Pump capacity Pressure	0.35 bar
  Filling volume liters	8L
  Power supply	220VAC±10% 50Hz
  External size (L*W*H)	550 x 400 x 650mm
  Package size (L*W*H)	750*580*910mm
  Gross weight	74kg
