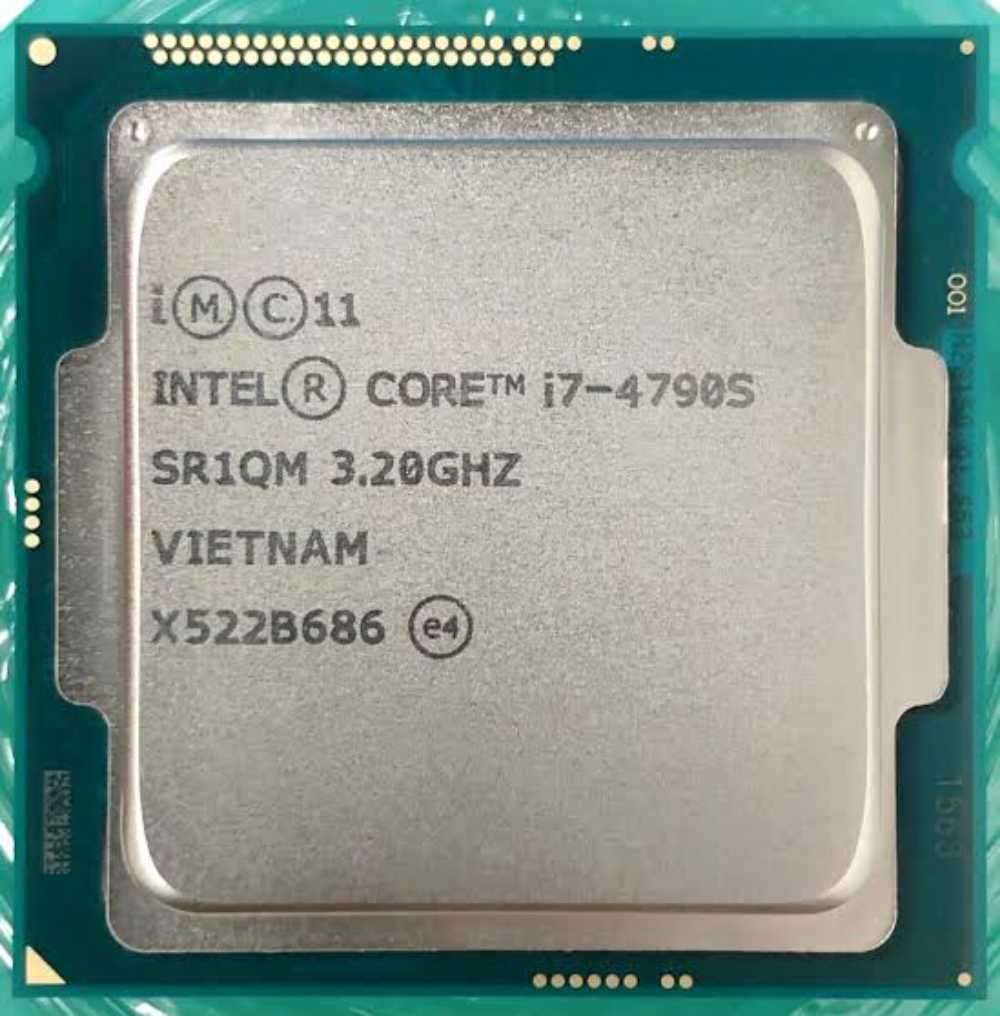

Intel Core i7-4790S Full Specifications
General Information:
Processor Name: Intel Core i7-4790S
Codename: Haswell
Launch Date: Q2 2014
Lithography: 22nm
Socket: LGA 1150
TDP (Thermal Design Power): 65W
Max Operating Temperature (Tjmax): 72.72°C
CPU Specifications:
Total Cores: 4
Total Threads: 8
Base Clock Speed: 3.2 GHz
Max Turbo Boost Clock: 4.0 GHz
Cache:
L1 Cache: 64 KB per core (32 KB instruction + 32 KB data)
L2 Cache: 256 KB per core
L3 Cache: 8 MB (shared)
Bus Speed: 5 GT/s DMI2
Multiplier: 32x (locked)
Unlocked Multiplier: No (cannot be overclocked)
Memory Specifications:
Memory Type: DDR3
Memory Channels: Dual-channel
Supported Memory Speed: DDR3-1333 / DDR3-1600
Max Memory Bandwidth: 25.6 GB/s
Max Memory Size: 32 GB
Integrated Graphics:
GPU Model: Intel HD Graphics 4600
Base GPU Clock: 350 MHz
Max Dynamic GPU Frequency: 1.2 GHz
Graphics Execution Units: 20
Max Resolution (HDMI 1.4 / DisplayPort): 4096x2304 @ 24Hz
DirectX Version: 11.2
OpenGL Version: 4.3
Quick Sync Video: Yes (for video encoding/decoding)
PCIe & Expansion:
PCI Express Revision: 3.0
PCIe Lanes: 16
Supported Configurations: 1x16, 2x8, 1x8+2x4
Other Technologies:
Hyper-Threading: Yes (4 cores, 8 threads)
Intel Turbo Boost 2.0: Yes
Intel Virtualization (VT-x): Yes
Intel Virtualization for Directed I/O (VT-d): Yes
Intel AES-NI: Yes (hardware encryption support)
Intel Secure Key: Yes
Intel TSX-NI: Yes (Transactional Synchronization Extensions)
Intel 64 (x86-64): Yes
