Design
| Product colour | Black |
|---|---|
| Number of fans | 1 |
| Cooling type | Active |
| Fan diameter | 140 |
| On/off switch | Y |
Weight & dimensions
| Width | 150 |
|---|---|
| Weight | 2000 |
| Depth | 180 |
| Height | 86 |
Power
| AC input voltage | 100 - 240 |
|---|---|
| AC input frequency | 47 - 63 |
| Input current | 7.5 - 15 |
| Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit |
| Total power | 1200 |
| Combined power (+3.3V) | 150 |
| Combined power (+12V) | 1200 |
| Combined power (+5V) | 150 |
| Combined power (+5Vsb) | 15 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V) | 100 |
| Max output current (+5V) | 20 |
| Max output current (+5Vsb) | 3 |
| Efficiency | 90 |
Performance
| 80 PLUS certification | 80 PLUS Gold |
|---|---|
| Mean time between failures (MTBF) | 100000 |
| Power supply unit (PSU) form factor | ATX |
| EPS version | 2.92 |
| Bearing technology | FDB |
| ATX version | 3.0 |
| Purpose | PC/server |
Features
| Quantity | 1 |
|---|

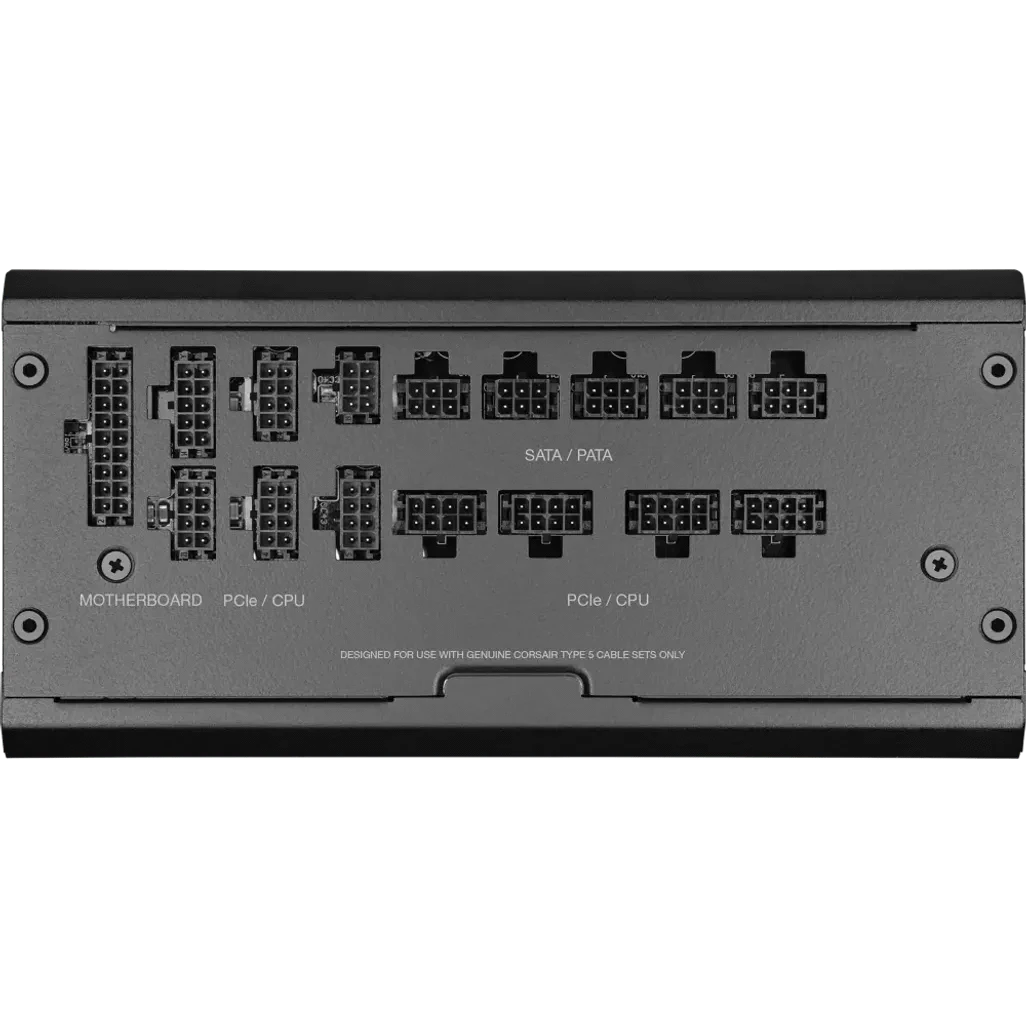

Ports & interfaces
| Peripheral (Molex) power connectors (4-pin) | 8 |
|---|---|
| Number of SATA power connectors | 16 |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 610 |
| PCI Express power connectors (6+2 pin) | 8 |
| Peripheral (Molex) power cable length | 450,550,650,750 |
| EPS power connector (4+4 pin) | Y |
| PCI Express power cable length | 750 |
| PCI Express power connectors (16-pin) | 1 |
| Cabling type | Fully-Modular |
| SATA power cable length | 455,570,685,800 |
Other features
| Screws included | Y |
|---|---|
| EPS cable length | 650 |
Technical details
| Sustainability compliance | Y |
|---|---|
| Sustainability certificates | Low Voltage Directive (LVD),RoHS,UKCA |
| Compliance certificates | Low Voltage Directive (LVD),RoHS,UKCA |
Packaging content
| Cable tie(s) included | Y |
|---|---|
| Cables included | AC,DC |
