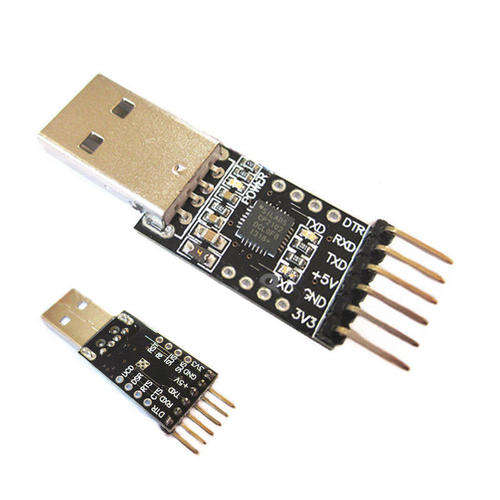

CP2102 Serial Converter (Si Labs)

A USB-TTL converter is required to program the microcontroller on the Arduino Pro Mini / Mini Pro as it has no built-in USB functionality. The Silicon Laboratories CP2102 serial converter is the cheaper alternative to the FTDI devices and gets the job done perfectly!

Features:

• USB Specification 2.0 compliant; full-speed (12 Mbps)
• USB suspend states supported via SUSPEND pins
• Asynchronous Serial Data BUS (UART)
• All handshaking and modem interface signals
• Baud rates: 300 bps to 1 Mbps
• 576 Byte receive buffer; 640 byte transmit buffer
• Hardware or X-On/X-Off handshaking supported
• Event character support
• Line break transmission
• On-chip power-on reset circuit
• On-chip voltage regulator - 3.3V output
• Extra pin placement for DTR, DCD, DSR, RTS, CTS & more.

Drivers for Windows can be downloaded here. Other drivers can be downloaded from the manufacturers website here.

The CP210x Datasheet can be viewed here
