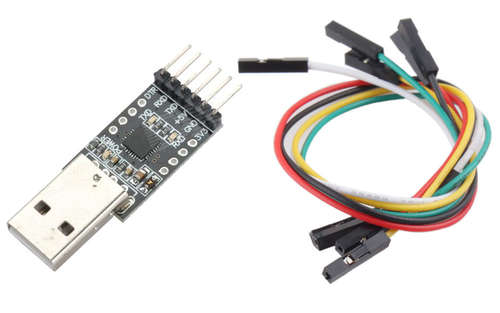

CP2102 USB 2.0 to 6 pin TTL UART Serial Converter Module Including leads

CP2102 USB 2.0 6 PIN TTL UART SERIAL CONVERTER MODULE INCLUDING LEADS

Product information
The CP2102 has a highly integrated, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM and asynchronous serial data bus (UART). It supports full-featured modem signals without any external USB device. The module enables programming the 3.3V and 5V Arduino Pro-mini modules without a costly FT232 to serial module.

Specifications
Brand new and high quality board
Uses a new 2013 CP2102 chip
Board has a self-recovery fuse to protect your computer’s USB port in the event of accidental short circuit
Board has three LEDs to indicate power, data reception and data transmission status
Board has both 3.3V and 5V power output
Includes a clock circuit
Includes power-on reset circuit
Meets the USB2.0 specification standard
SUSPEND pin supports USB suspend state
Asynchronous serial data bus compatible with all handshake and modulation controller interface signals
Supported data format is 8 data bits, 1 stop bit and parity bits
512 byte receive buffer and 512 byte transmit buffer
Supports hardware handshaking or X-ON/X-OFF
PCB Dimensions: 26.5mm x 15.6mm
PCB Colour: Black
Weight: 4g

Driver: http://download.cnet.com/Silicon-Labs-CP210x-USB-to-UART-Bridge/3000-2112_4-196433.html

Package includes
1 x CP2102 USB 2.0 to 6 pin TTL UART Serial Converter Module with leads
