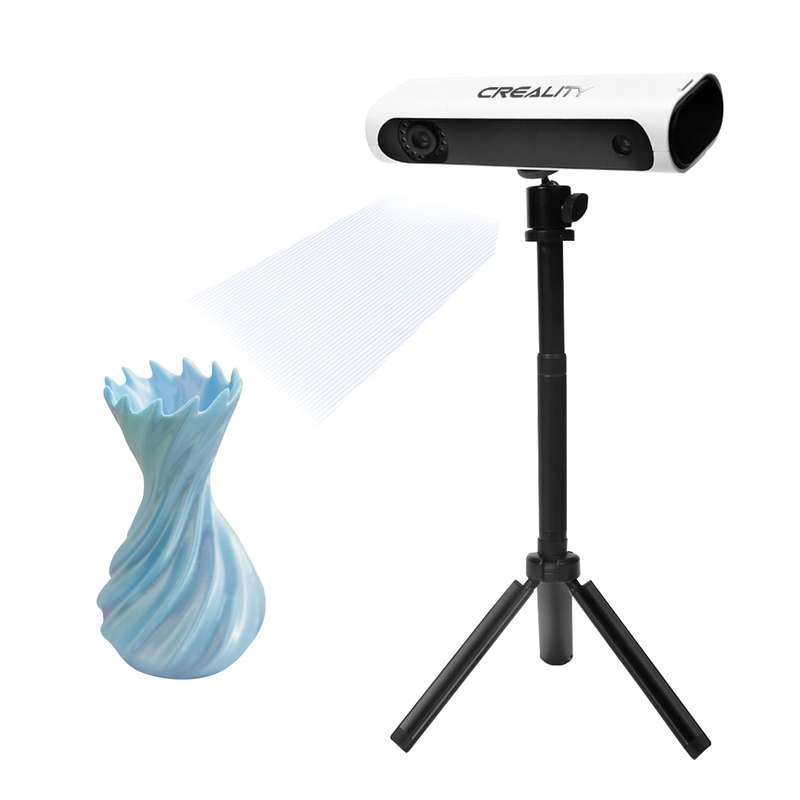

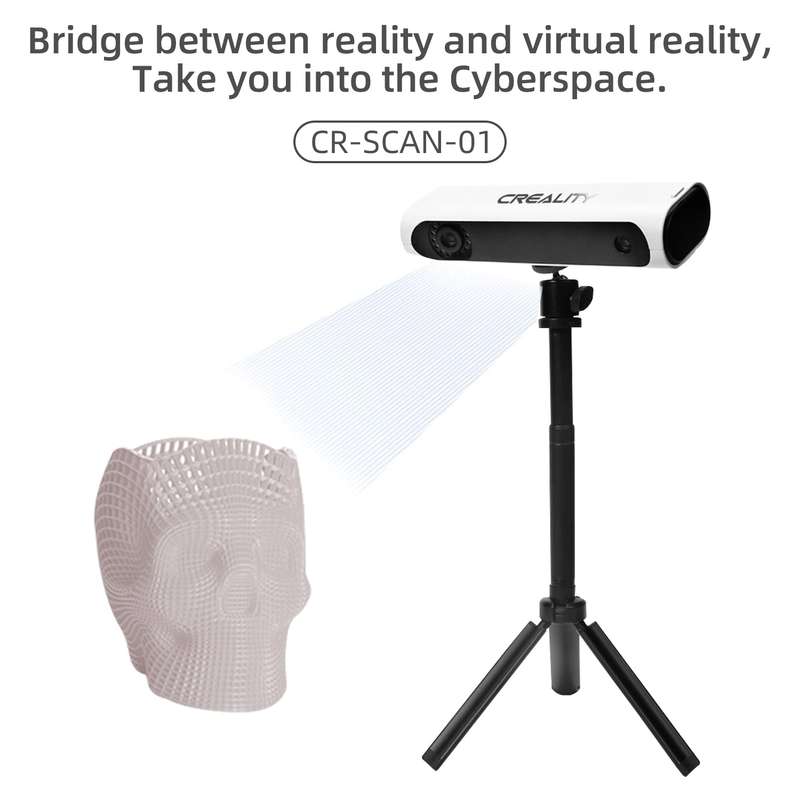

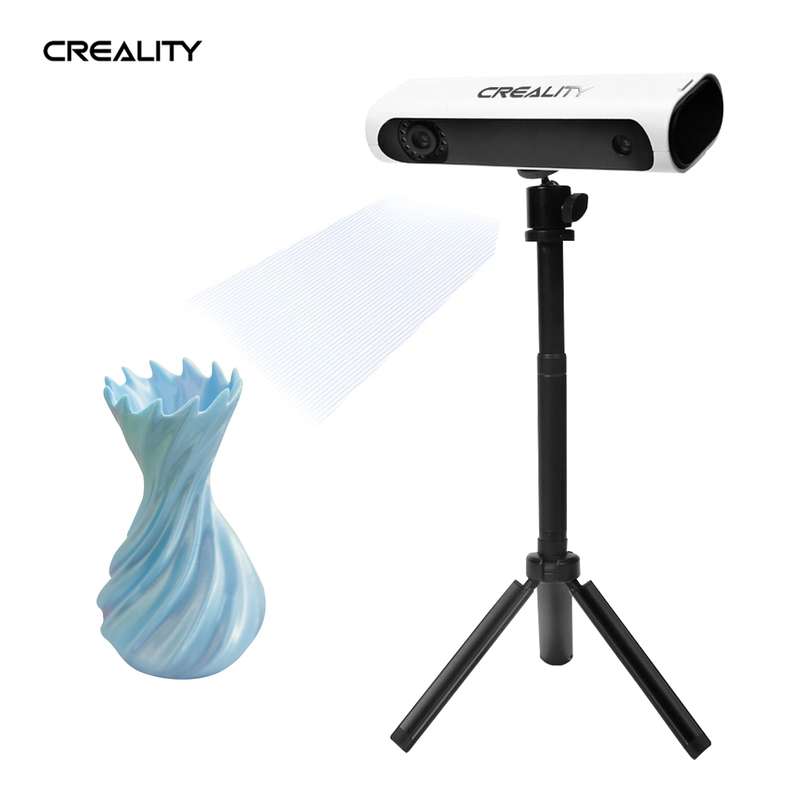

CR-SCAN01 3D scanner, high precision and large scanning area, is a bridge between reality and virtual reality, take you into the Cyberspace.
Features:
Easy to Use: Creality CR-SCAN01 3D modeling scanner, automatic matching, power on and scan, no need to calibrate and mark, easy to use. USB plug and play, support Windows 10 and above system.(Note: it doesn't support MAC and Android system.)
More Professional: High precision scanning, accuracy up to 0.1 mm, even scanning large objects can also ensure high-precision details. Scanning width is 1.5 times of the traditional scanner, and the scanning is faster and smoother.
Multiple Scan Modes: Handheld scanning is more flexible, supports scanning objects of different sizes without marking points. With turntable and tripod, one click automatic scanning, support multiple poses aligned automatically to get a more complete model.
Powerful Model Processing Method: Model editing, automatic filling repair, automatic color repair, automatic substrate recognition, non-destructive mesh simplification, automatic smooth denoising, give you a great scanning experience.
Automatic Multi-Pose Alignment: High-precision matching algorithm based on color and structure features, realizing multiple scan automatic synthesis function.
Wide Application: Capture life in a three-dimensional way and turn abstract into concrete. It is widely used in 3D printing, animation design, industrial design, modeling and so on.
Specifications:
Brand: Creality
Model: CR-SCAN01
Type(optional): Standard Version/Upgrade Version (With Turntable and Tripod)
Material: ABS
Input: 100-240V
Frame Rate: 10fps
Scanning Area: 536 * 378mm
Accuracy: 0.1mm
Resolution: 0.5mm
Scanning Distance: 400-900mm (Distance from the scanned object to the scanning lens)
Scanning Range(Handheld): 0.3m-2m (Distance from the scanned object to the scanning lens)
Scanning Range(Turntable): 0.3m-0.5m (Distance from the scanned object to the scanning lens)
Output Format: obj, stl
Date Interface: USB 3.0
Operating Temperature: 0-40￢ﾄﾃ(Non-condensing)
Scanner Size: 28 * 12 * 5.5cm/ 11 * 4.7 * 2.2in
Scanner Weight: 800g/ 28.2oz
Package Size: 35 * 30.5 * 12.5cm/ 13.8 * 12.0 * 4.9in
Package Weight: 2520g / 88.9oz
Note:
It is an upgrade kit with a turntable and tripod.
Computer configuration requires windows10 above and 8G of running memory. It is not recommended to use lower than this configuration.
Packing List:
1 * 3D Scanner
1 * Tripod
1 * Turntable Bottom
1 * Tabletop
1 * USB Flash Drive
1 * USB Cable
1 * Turntable Control Line
1 * Power Adapter
1 * User's Manual
