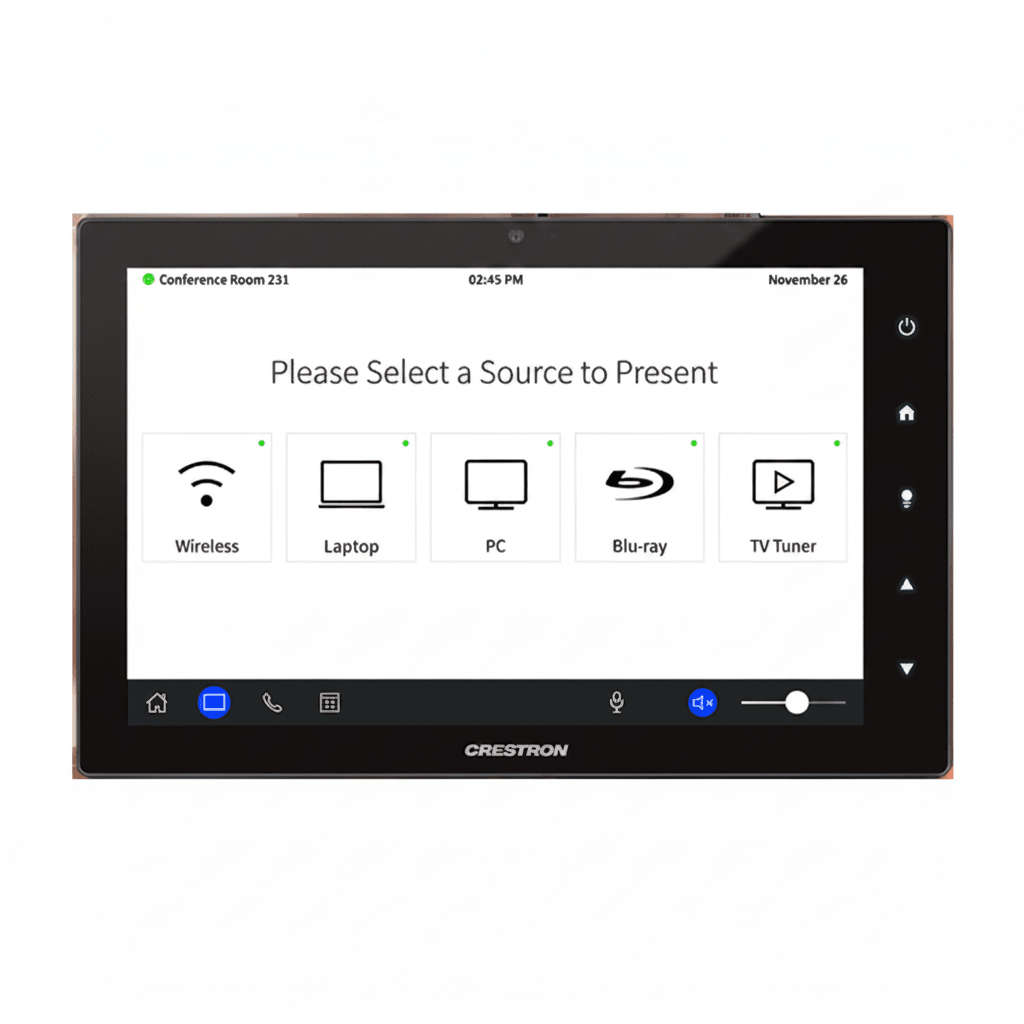

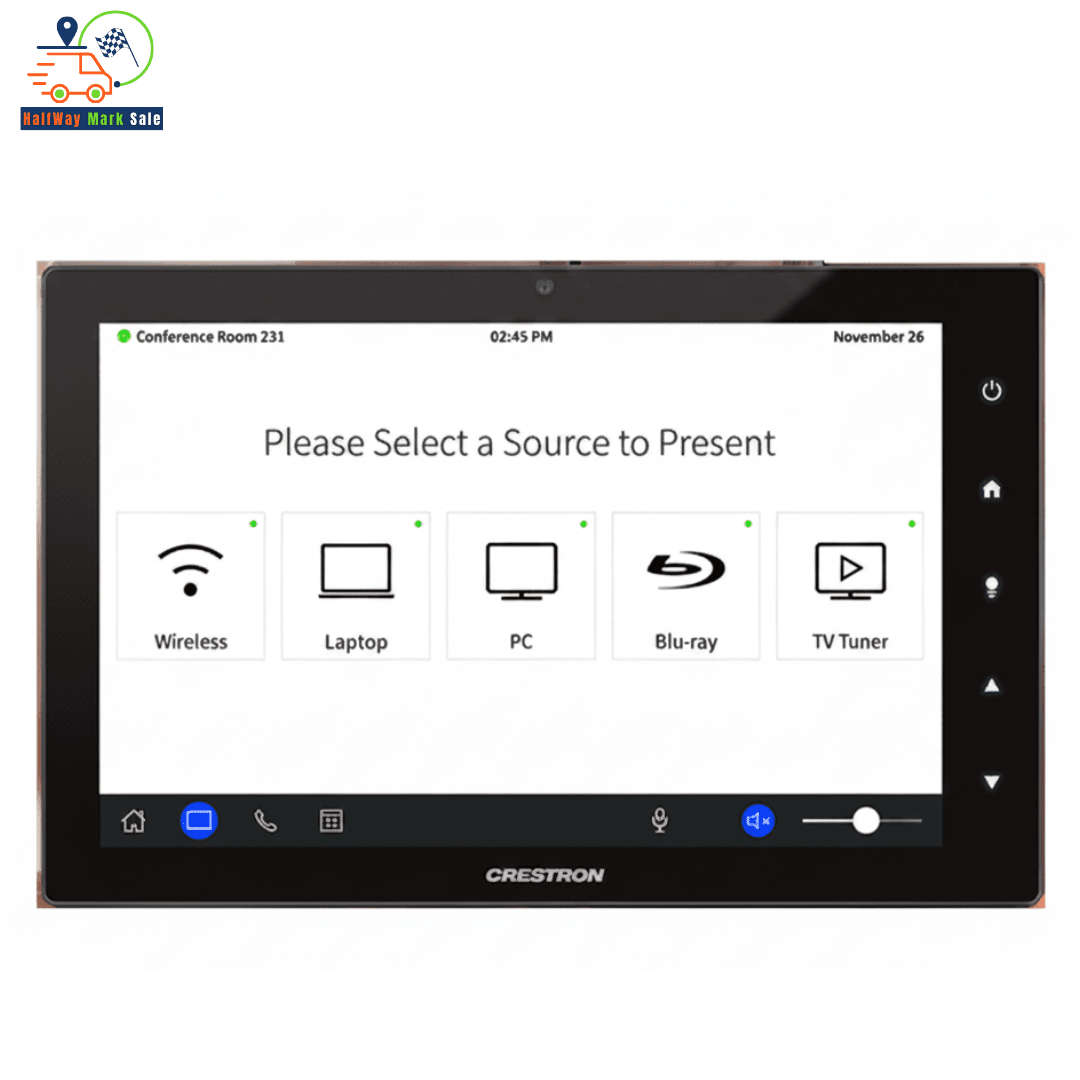

Crestron TSW-1060 10.1 Inch Touch Screen Control Panel – Refurb

The Crestron TSW-1060 is a professional 10.1-inch touchscreen control panel designed for advanced room control, scheduling, and AV automation in corporate, education, and smart building environments. It delivers a responsive multitouch interface with a high-resolution display, enabling intuitive control of meeting rooms, conferencing systems, lighting, and integrated building technologies.

Built on Crestron's Smart Graphics and HTML5 platform, this touch panel supports a wide range of enterprise applications including room scheduling, video conferencing integration, and custom control interfaces. With PoE+ power and enterprise-grade connectivity, it is designed for reliable wall-mounted deployment in modern professional environments.

Key Features & Benefits

10.1" WXGA Touch Display Clear and responsive control interface
5-Point Multitouch Smooth and intuitive user interaction
Crestron Smart Graphics Platform Advanced UI and system integration
PoE+ Powered Single cable power and network connectivity
Built-in Camera & Microphone Supports conferencing and intercom functions
Enterprise Control System Ideal for AV and building automation

Ideal Uses

Conference room control systems
Smart building automation
Room scheduling and management
Corporate AV integration
Video conferencing control panels

Specifications

Condition: Refurbished device with minor signs of previous use. Fully tested and 100% functional.
Brand: Crestron
Model: TSW-1060
Display: 10.1" TFT LCD (1280 × 800 WXGA)
Aspect Ratio: 16:10
Brightness: 400 nits
Touch Type: Projected capacitive (5-point multitouch)

Performance & System
2GB DDR3L RAM
4GB eMMC System Storage
4GB microSD Firmware Storage

Connectivity
1 × RJ45 Ethernet (PoE+)
1 × USB 2.0 Host Port

Power
IEEE 802.3at PoE+ Powered Device

Audio & Camera
Built-in microphone and speakers
Integrated 5MP camera

Construction
Edge-to-edge glass design
Wall/flush mount compatible (no accessories included)

Dimensions
Height: 168 mm
Width: 260 mm
Depth: 39 mm

Environmental
Operating Temperature: 0°C to 45°C
Humidity: 10% to 90% non-condensing

Warranty

6 Month Carry-In Warranty

What's in the Box

Crestron TSW-1060 Touch Screen Panel only
