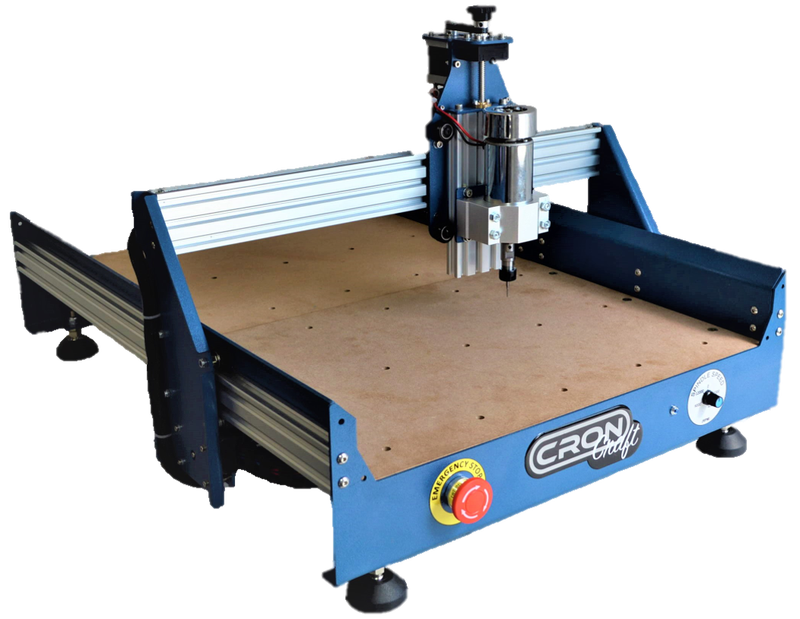

CRON Craft CNC Machine Kit

The Cron Craft CNC machine kit is a small size, high quality CNC machine.  CNC has never been this easy! It comes with a 400W silent cut air cooled spindle, electronics, Z-Probe and cutting bits. This kit is perfect for cutting wood, PCBs, perspex and even aluminium. It comes in 3 sizes: Small, Medium & Large. Each with different cutting area (please see Machine Specifications below for sizes and make selection on top)

What is included:

• All the parts you need to build the CNC machine
• The wires are pre-soldered so that you can plug and play
• Z-Probe for accurate Z homing
• Power Cable
• USB cable
• Collet spanner
• 5 cutting bits
• Work piece clamps

What you will need:

• Computer with internet connection
• Assembly Tools

Machine specifications:

• Cutting Area:
• • Small: 400 x 250mm
  • Medium: 400 x 630mm
  • Large: 400 x 1000mm
• Cutting height: 50mm
• Machine size:
• • Small: 590 x 405 x 460mm (W x L x H)
  • Medium: 590 x 780 x 460mm (W x L x H)
  • Large: 590 x 1165 x 460mm (W x L x H)
• Machine weight: 15kg
• 400W silent cut air cooled spindle with ER11 collet
• Spindle Speed: Variable between 0 - 12 000RPM
• Collets included: 1/8', 1/4', 4mm, 5mm, 7mm
• Maximum Feedrate: 3000mm/min
• Positional resolution: 10 micron
• Positional repeatability: 8 micron (No load)
• Operating Temperature: 15-30 Degree C
• Noise level, Spindle only: 60dB
• Noise level, when cutting: <75dB
• Connectivity: USB
• Z-Probe: Included
• Power Supply: 220V AC, 50Hz, 2.3A Max

The latest assembly instruction can be found here: Cron Craft Assembly Instructions

The downloadable data on the Mega Upload folder can be found here: Cron Craft Mega Upload Folder
