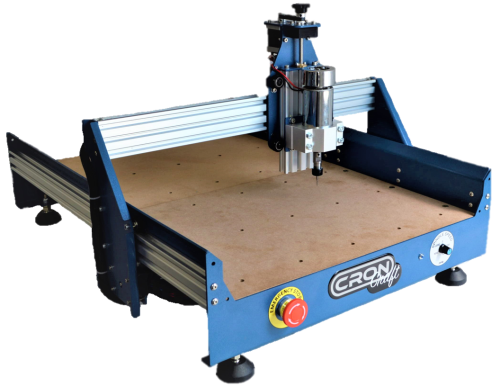

Cron Craft CNC Machine Medium

• The Cron Craft CNC machine kit is a small size, high quality CNC machine.  CNC has never been this easy!  It comes with a 400W silent cut air cooled spindle, electronics, Z-Probe and cutting bits.  This kit is perfect for cutting wood, PCBs, perspex and even aluminium.  It comes in 3 sizes: Small, Medium & Large.  Each with different cutting area (please see Machine Specifications below for sizes)


• What is included:

• All the parts you need to build the CNC machine
• The wires are pre-soldered so that you can plug and play

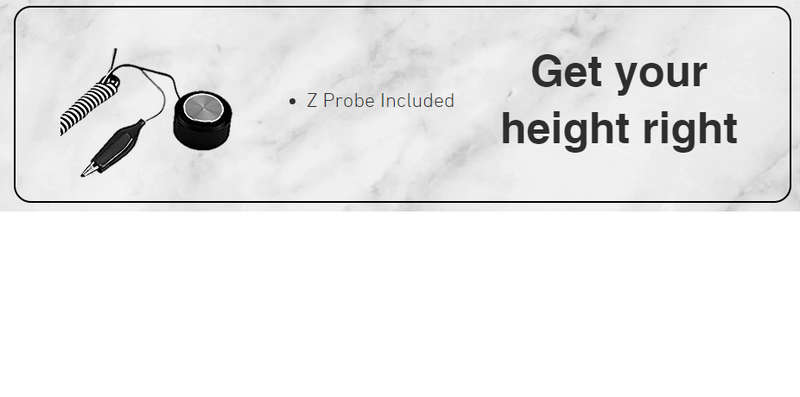

• Z-Probe for accurate Z homing
• Power Cable
• USB cable
• Collet spanner
• 5 cutting bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm)
• Work piece clamps

• What you will need:
• Computer with internet connection
• Assembly Tools

• Machine specifications:

• Cutting Area:
• Medium: 400 x 630mm
• Cutting height: 50mm
• Machine size:
• Medium: 590 x 780 x 460mm (W x L x H)
• Machine weight: 15kg
• Frame made of mild steel
• 400W silent cut air cooled spindle with ER11 collet
• Spindle Speed: Variable between 0 - 12 000RPM Speed Controlled
• Collets included: 1/8', 1/4', 4mm, 5mm, 7mm
• Maximum Feedrate: 3000mm/min
• Positional resolution: 10 micron
• Positional repeatability: 8 micron (No load)
• Operating Temperature: 15-30 Degree C
• Noise level, Spindle only: 60dB
• Noise level, when cutting: <75dB
• Connectivity: USB
• Z-Probe: Included
• Power Supply: 220V AC, 50Hz, 2.3A Max
• Software: Included
