Cross Laser Diode

These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project. This particular module has a lens attached that will turn the dot into a cross. This makes it particularly good for laser-vision guidance, targeting, and more! Simply connect power to the red and black wires and you will be lasing in no time. The cross has a beam spread of approximately 60° in both directions. So from a distance of 5cm, the cross is 5cm tall and 5cm wide.

Please note: this is not a laser pointer. It's a laser diode with an integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output and have a safety label marked on them.

Cross Laser Diode Specs:

• Model: SYD1230
• Weight: 11.85g
• Diameter: 10.11mm
• Length: 32.82mm
• Wire length: 100mm
• 650nm wavelength
• 2.8 - 5.2V DC voltage input
• 25mA max current draw
• Operating temperature -10°C to 40°C

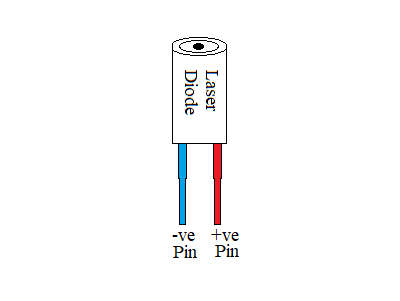

Pin Out:

Resources:

DataSheet
