Cross Slide Table - 430 MM x 240 MM (204)

🛠 Title:

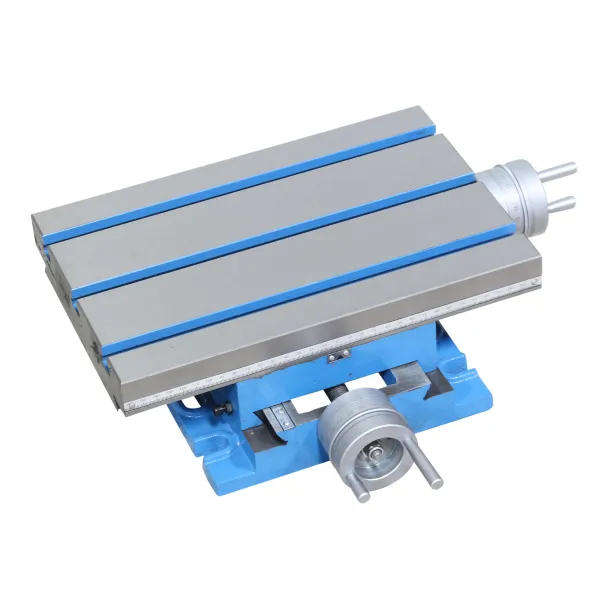

Precision Cross Slide Milling & Drilling Table 430mm x 240mm Heavy-Duty Base

📝 Professional Description:

This heavy-duty cross slide table is engineered for precision in milling, drilling, and lathe operations. With a larger working area and enhanced travel distance, it offers machinists and metalworkers exceptional accuracy, control, and workpiece flexibility.

Built from robust cast iron and machined for flatness and precision, this adjustable table supports both longitudinal and cross-axis movements. Ideal for any serious workshop setup where versatility and stability are key.

Key Features:

• 425mm × 240mm work surface for larger workpieces

• Cross Travel: 225mm | Longitudinal Travel: 150mm

• Precision dial graduations of 0.02mm, with 0.2mm per revolution

• 3 wide 27mm T-slots to accommodate heavy clamping needs

• Compatible with drill presses, lathes, and milling machines

• Reinforced cast iron base with extended bolt spacing for stability

• Perfect for metal fabrication, mechanical repair, and prototyping

📐 Specifications:

• Table Dimensions: 425mm (L) × 240mm (W)

• Cross Travel: 225mm

• Longitudinal Travel: 150mm

• T-Slot Width: 27mm

• Number of T-Slots: 3

• Dial Graduation: 0.02mm

• Travel per Dial Turn: 0.2mm

• Overall Height: 125mm

• Base Size: 340mm (L) × 270mm (W)

• Bolt Spacing on Base: 250mm × 250mm

📦 Packaged Dimensions:

• Metric: 47 cm (L) × 31 cm (W) × 18 cm (H)

• Imperial: 18.5 in × 12.2 in × 7.1 in

• Weight:23.95 kg

📥 Whats in the Box:

• 1 × Heavy-Duty Precision Cross Slide Table

• Pre-installed handwheels

• Setup guide
