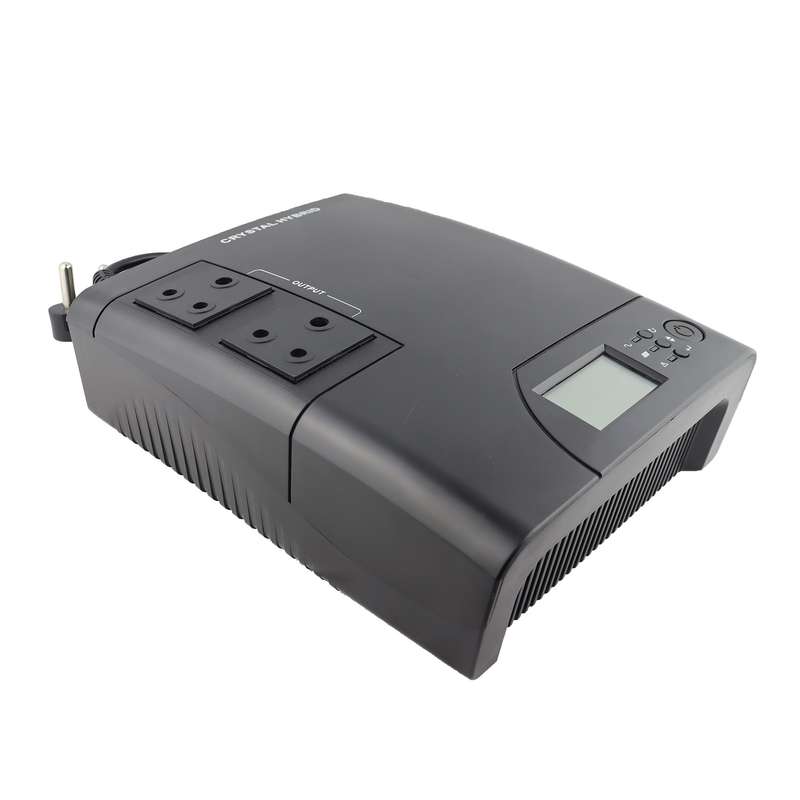

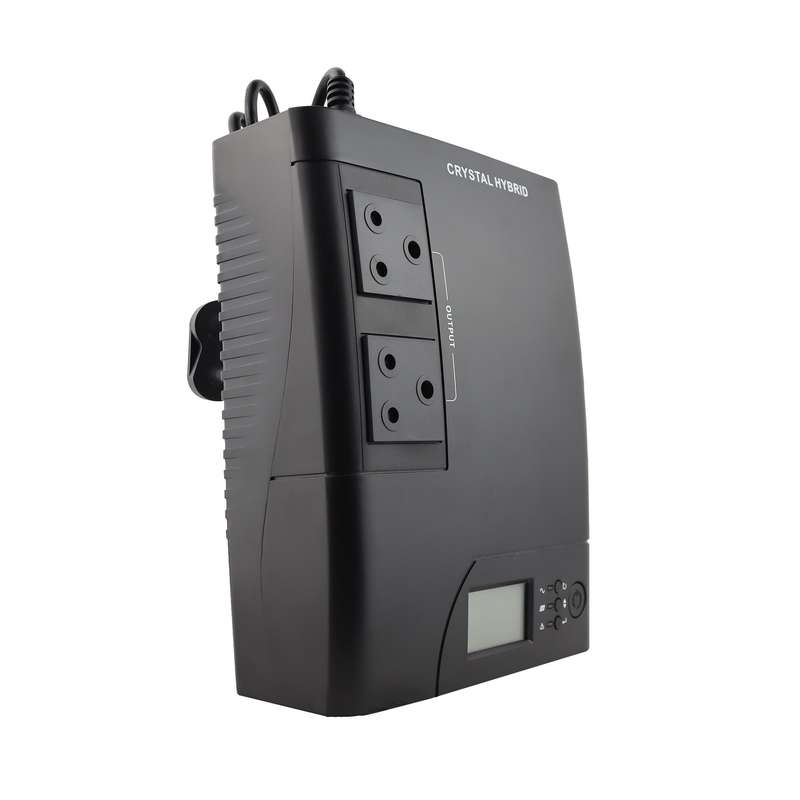

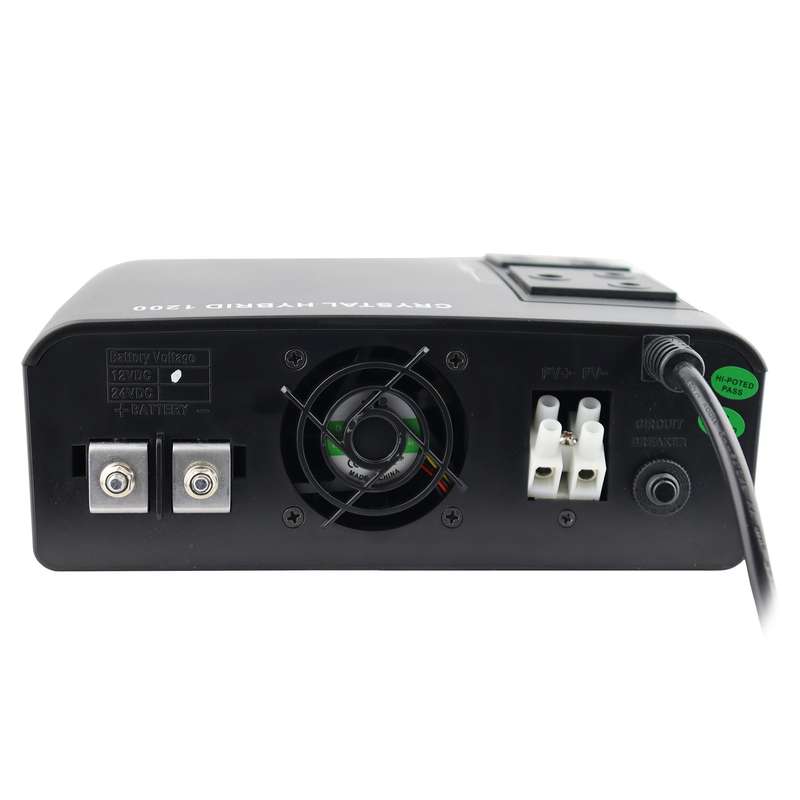

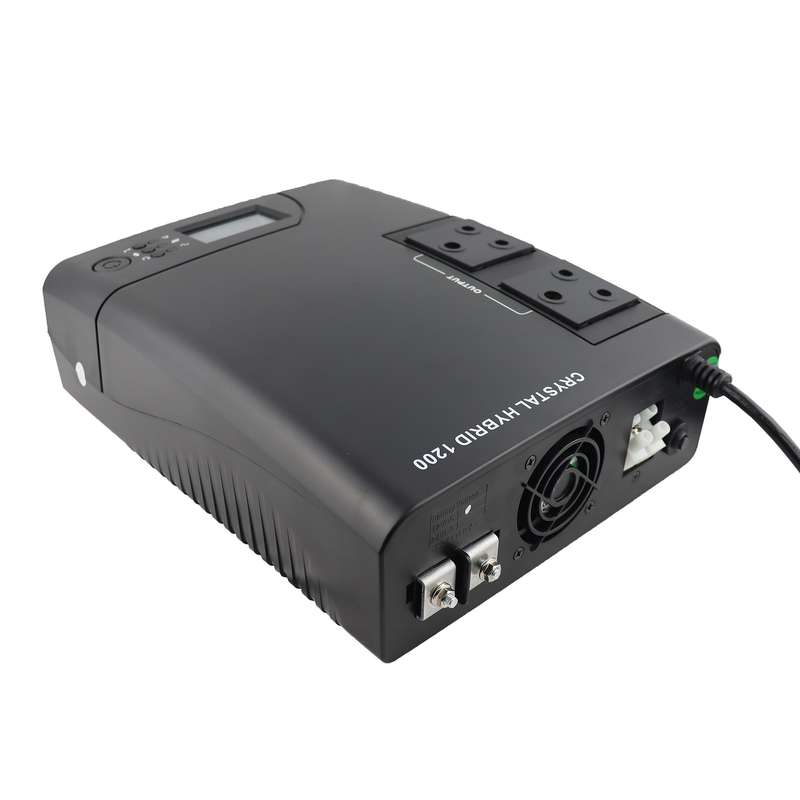

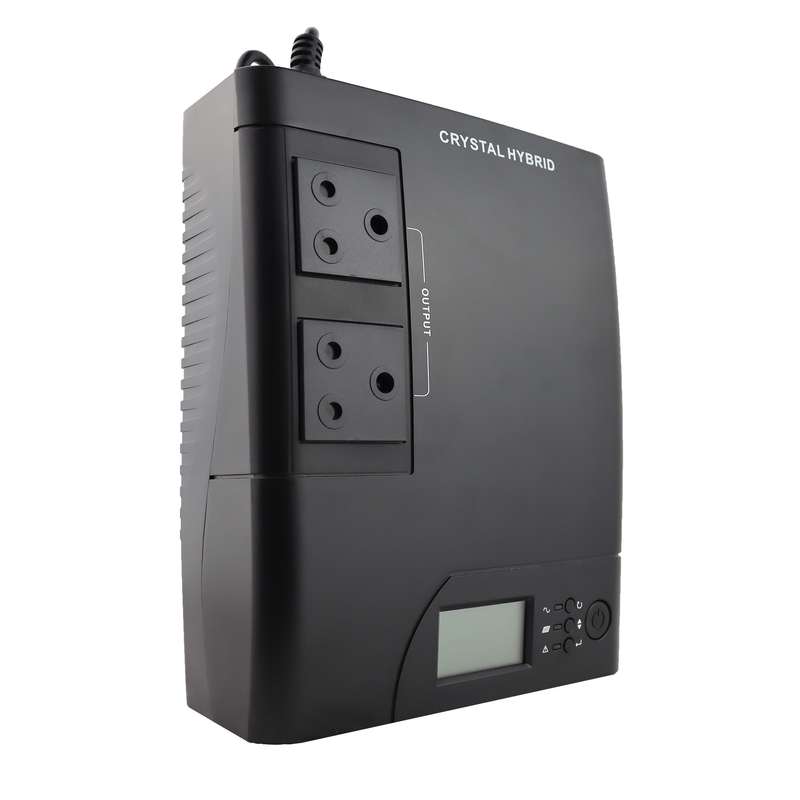

CRYSTAL HYBRID 2400VA (1440W) Inverter Battery Charger (UPS) - (Modified Sine Wave) with 50A PWM So

Please note that the fan on this inverter runs CONSTANTLY, even when the battery(s) reaches a full charge. This is applicable to Lead-Acid and Lithium batteries.

Features

- Built-in 50 Amp Solar Charge controller

- 10A or 20A Standard charging current from the utility

- AC/Solar Priority for output via MFD

- AC/Solar priority for charging via MFD

- Smart user-friendly interface

- 3 Step charging algorithm

- MFD (Multi-Function Display)

- Overload & Short-circuit protection

- Battery reverse polarity protection

- Deep discharge protection

- Auto restart while AC is recovering

- Adjustable solar and utility charging current

Specifications

- Model: PV11-2400

- MD: CRYSTAL HYBRID2400

- Operating Temperature Range: 0°C +40°C

- Protection Class: Class 1

- IP Rating: IP 20

Inverter Mode

- Rated Power: 2400VA/1440W

- DC Input: 24VDC

- AC Output: 230VAC 50Hz

AC Charger Mode

- AC Input: 230VAC 50Hz

- DC Output: 24VDC 10/20A

Solar Charger Mode

- Rated Current: 50A

- System Voltage: 24VDC

- PWM Voltage Range: 1216~55VDC

- Max. Solar Voltage(VOC): 55VDC

- Max. Charge Current: 50A
